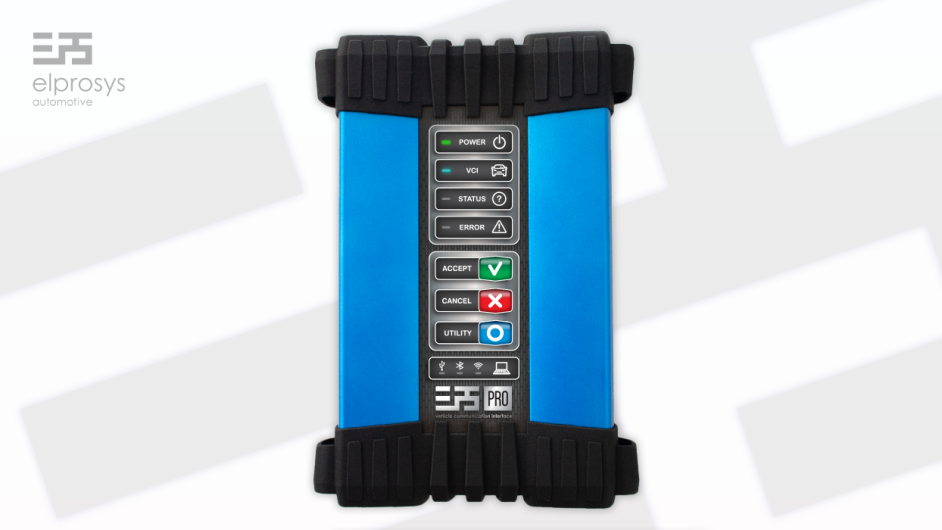

ELP5 PRO VCI - Vehicle Communication Interface

Beschreibung

ELP5 PRO - VCI is a state-of-the-art Interface made to link a host PC/Android based device with a vehicle’s diagnostic connector.

This incredible VCI allows fast and reliable diagnostics, flashing and other complex programming operations.

MODES OF OPERATION:
Mode 1 – Pass-Thru interface device supporting standards:
J2534-1 Pass-Thru Vehicle Programming API
J2534-2 Optional Pass-Thru Features API (partial)

Mode 2 – Stand-alone device controlled by DiagProg software running on an Android based host

Hardware Interface:

  • CAN – 3 independent channels
  • UART – 3 independent serial communication channels
  • J1850 – 1 channel
  • Slot for Expansion Board for future / custom standards
  • Nearly unlimited configuration options

 Interface Protocols:

  • ISO 11898 – CAN-FD 5Mbps
  • ISO 11898-3 – Fault Tolerant CAN
  • ISO 15765 – Diagnostics on CAN
  • ISO 13400 – DoIP
  • ISO 14230 – KWP2000
  • ISO 14229 – UDS
  • ISO 9141 – K & L Lines
  • SAE J2411 – Single Wire CAN
  • SAE J2284 – High-Speed CAN
  • SAE J2818 – KWP1281
  • SAE J2819 – TP2.0
  • SAE J2740 – GM UART
  • SAE J1850 – VPW/PWM
  • SAE J2610 – Chrysler SCI
  • SAE J2809 – Honda DIAG-H
  • Chrysler CCD

 ELP5 Custom System Interface:

  • 9 x Programmable Multifunction Input / Output / Bidirectional pins
  • Pull-ups, pull-downs, „open-drain”, Schmitt trigger options
  • SPI, UART, I2C, 1-Wire, JTAG, BDM, High Speed Clock
  • Direct EEPROM and CPU programming

Hardware Features:

  • Analog Inputs – voltage measurement on all OBDII and custom pins
  • Programming voltage generator – 5÷20V
  • Voice and sound signaling
  • LEDs and buttons for quick interaction
  • High quality automotive-grade components
  • 1.0GHz ARM Cortex-A9 processor · 1GB DDR3 SDRAM 1600Mbps
  • Power through DLC or external jack connector
  • 8÷18V supply voltage operation
  • Aluminium casing with anodized surface
  • EPDM rubber "bumpers" for VCI and vehicle protection
  • Elastic strap for a better grip

Host Interface:

  • 802.11 a/b/g/n/ac WiFi 2.4/5GHz
  • Bluetooth 4.2 EDR
  • USB2.0 Hi-Speed (USB-C connector)
  • WiFi Direct
