Controller MS561 for diagnostics of EPS/EHPS units operating under protocols CAN and FlexRay: steering racks, columns, and pumps. Diagnostics of units disconnected from a vehicle electric system.

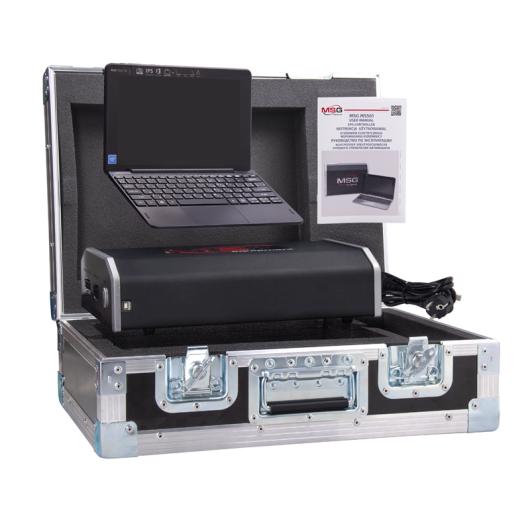

* Complete set could be different as on the photo. Please specify set content with the manufacturer

Application:

Controller MS561 supplies power to a tested unit and provides special program codes necessary for its launch. Due to this, it is possible to diagnose a unit dismantled from a car. The Controller can diagnose the units disconnected from the vehicle electric system directly in a car. Special diagnostic cables serve for connection of the unit to the Controller.

MS561 is equipped with the OBD II connector for an external diagnostic device to perform the following:

• detect and eliminate errors;
• take readings realtime;
• receive information stored in the control unit;
• encode;
• update software;
• calibrate sensors;
• other

Auxiliary equipment to add functionality:

• MS550 – Adapter for diagnostics of steering racks without ECUs.
• MS-35670 – Universal cable for diagnostics of EPS racks and columns, and EHPS pumps.
• Cables FlexRay – for diagnostics of EPS units operating under protocol FlexRay.
• Diagnostic scanners – UCDS, VAS5054, Universal USB programmer.
• Cables for diagnostics of torque sensors.

The advantages:

• Diagnoses units dismantled from a car.
• Works with such protocols for data transmission as CAN, FlexRay.
• Diagnoses torque sensors separately from the vehicle units.
• Diagnoses vehicle units under load with a maximum absorbed current of 100A.
• Free online update of the equipment software and units database.
• Has the OBD II connector for connection of different diagnostic scanners to the Controller (Launch, MaxiSys, VAS5054, Bosch KTS, etc.).
• Compact size of the device, convenience and ease-of-use.
