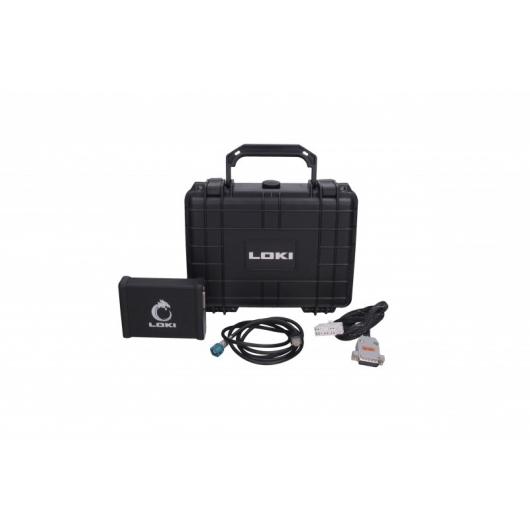

LOKI has all the service functions necessary for repair and maintenance of the following Tesla models: Model S, Model X, and Model 3.
Performance capabilities of the multi-function device for Tesla diagnostics:
The full diagnostics of Model S/X/3/Y with any firmware (after firmware 2021.4.15, for the cars equipped with Intel Atom, the CAN-diagnostics is effected through the LOKI program interface;
Live Data from CAN units (Model 3/Y):
BMS (Battery Management System)
DI (Drive Inverter)
CP (Charge Port)
PCS (Power Conversation System)
EPAS (Electronic Power Assist Steering)
VCFRONT (Vehicle Control Front)
VCLEFT (Vehicle Control Left)
VCRIGHT (Vehicle Control Right)
DAS (Driving Autopilot System)
SCCM (Steering Column Control module)
Live Data from CAN units (Model S/X):
MCU (Media Control Unit)
THC (Thermal Heat Controller)
BMS (Battery Management System)
DI (Drive Inverter)
CHG (Charger)
CP (Charge Port)
BDY (Body Controller)
TAS (Air Suspension System)
DAS (Driving Autopilot System)
PARK (Park Assist Module)
TPMS (Tire Pressure Monitor System)
Self-tests of the different car systems (Model S/X/3/Y with any firmware)
Update of car with AP22.53.0;
Installation and adjustment of the navigation: MS (Tegra/Intel), MX (Tegra/Intel), M3, MODEL Y;
New firmware installation;
The complete configuration modification for Model S/X Tegra up to 2020.48;
The complete configuration modification for Model S/X Intel up to 2020.48 and the partial modification for the further firmware;
The partial configuration modification for Model 3 up to 2022.4
(Security Configuration - optional plug-in);
The availability of the configuration modification for М3 up to 2021.4.12, incl., without soldering;
The availability of alert library;
Service alert deleting;
Valet Mode deactivation (up to 2021.4.12, for cars with Intel Atom);
PIN to Drive deactivation (up to 2021.4.12, for cars with Intel Atom);
Activation of Factory/Diagnostic/Developer Mode (for all the firmware through 2021.4.12 (Intel));
Switching of car systems to service mode;
Binding of the units to a car (REDEPLOY, VIN learn);
Adjustment, adaptation and calibration of units;
Calibration of all seats in МХ;
Steering column calibration for МХ;
AP2.53.0 radar calibration for MSMXM3MY;
Deleting of special alerts from BMS;
Deleting of CRASH from TAS;
Deleting of CRASH from SRS (except of BOSCH 2nd generation);
Autopilot firmware update;
Binding of Model S keys (when the keys are completely unavailable).
