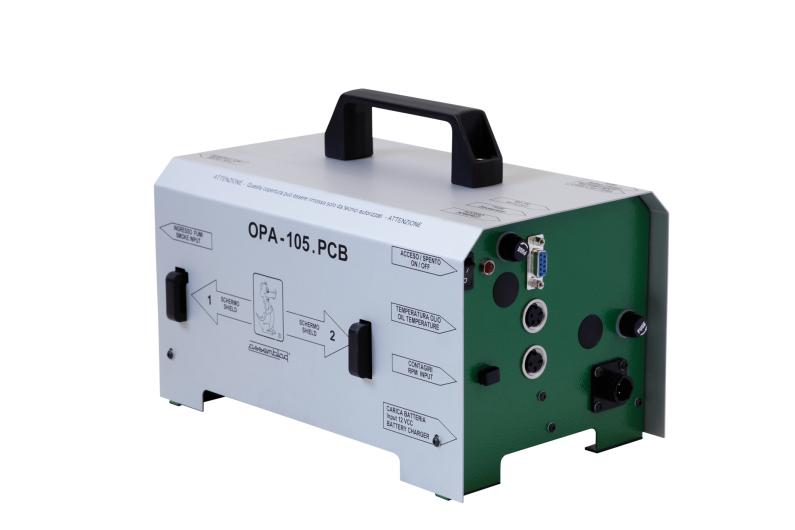

OPA 105.PCB Battery-operated partial-flow Smoke Meter Module

The OPA 105.PCB is suitable for testing smoke and opacity emission of Diesel engine-equipped vehicles of any kind.
Available as full version for heavy-duty emission tests or as light version for pre-check, diagnostic and repair.

Powered by ASSEMBLAD OPA-KING, our own technology for ready-for-working temperature-controlled smoke bench.

To be used in conjunction with external pc running ASSEMBLAD software or connected to ASSEMBLAD Gas Analyzer for stand-alone combi emission test station.

Approved for statutory tests. Recommended for intensive use.

MAIN FEATURES:

• Available as light version or full version including smoke shut-off valve.
• Capable to run any emission test procedure on Diesel engine-equipped vehicles of any kind.
• User-selectable operating modes: free acceleration, continuous, loaded, etc.
• ASSEMBLAD Service software available for remote monitoring.
• Battery-operated, handy and portable.
• Automatic zeroing function (typical 15 sec.).
• Fast warm-up time (typical 5 minutes) at power-on only.
• Easy and quick maintenance, cleaning and calibration.
