Roller brake tester for light and heavy-duty commercial vehicles

Complying with international testing specifications for statutory technical inspections, the F3318-1 roller brake tester can test heavy duty vehicles up to 18 tons, and in the optional combi version can test also vehicles below 3.5 tonnes.

Other options such as 4 wheel-drive, integrated lifting for load simulation, and compressed air measurement are also available.

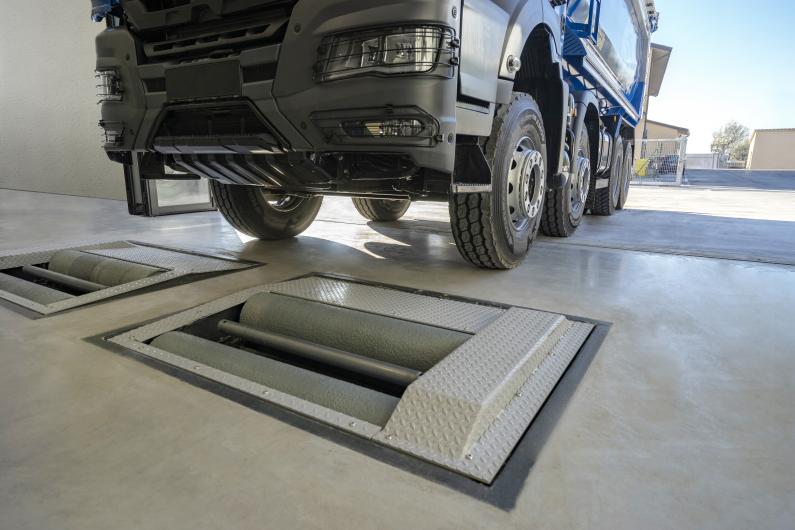

Manufactured as split bench for flexible installation, inexpensive transportation and easy handling, the F3318-1 is fit to be assembled either as joint bench for in-floor recessed installation or as split bench for pit installation.

Epoxy corundum-coated rollers to meet or exceed international standard for statutory inspections.

 MAIN FEATURES:

• Optional combi version to include vehicles below 3.5 tonnes.
• Manufactured and delivered as split bench suitable to be installed either as joint bench for in-floor recessed installation or as split bench for pit installation.
• Compliant with ISO 21069-1, EU 2014/45 Directive and relevant international standards.
• Long-lasting epoxy corundum-coated rollers, suitable for remanufactoring.
• Available as dedicated brake tester as well as module for complete inspection line under the management of Windows-compatible ASSEMBLAD test line software.
