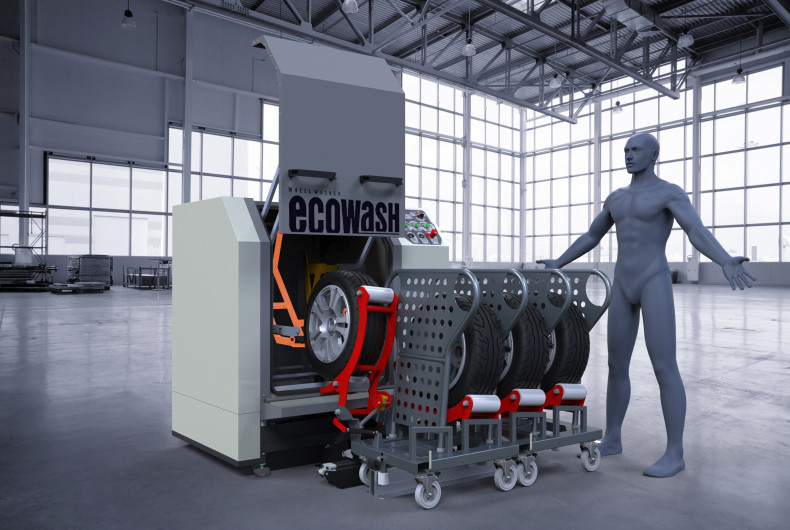

EcoWASH is a modern designed wheel washing machine (equipment) which thoroughly cleans tires and rims and at the same time grants protection to workers and environment in which one operates.

EcoWASH use the concept of washing with high pressure cold water and biodegradable detergents, efficiently acting even in the most difficult areas of a tire/rim such as internal sector or near air valves The technological advantage of EcoWASH

Higher productivity

Higher productivity: Working with cleaner tires improves speed and the efficiency of the worker.

Best Service the customer

Washing wheels gives profit and grants a service to our customers.

Workplace is healthier and the warehouse has a cleaner environment.

Dirt and dust on tire and rim are retained with a filtered water and this maintains the working environment clean and healthy.

ECOLOGICAL SOLUTION

The washing method wa low consumption of energy and water guaranteeing minimal impact on the environment impact.

ECOWASH is

• High efficient washing
• Maintenance operations are easier / more accurate
• Increased cleaning workshop
• Longer useful life of service machines
• Improved working condition of operators
• Optimisation of working time
• Improved quality services offered to customers
• Low running costs

HOW IT WORKS:

High pressure cold water

Thanks to the sprayed detergent and its cleaning action, along with the power of high pressured water, all dirt and powered brake elements are removed. All operation of Ecowash are managed by INVERTER which allows soft changes in rotation ensuring a long life of mechanical components.

TYRE WIDTH    135-380 mm

TYRE DIAMETER   520-800 mm

POWER SUPPLY     380-420 V, 3 phases / 220V 3 phases

POWER CONSUPTION   4 Kw INSTEAD 7-10 Kw OF COMPETITORS

AIR PRESSION 6-8 bar

INTLET WATER PRESSION   2 bar

WATER PRESSION 80 bar

WATER FLOW 7 l/m

WATER DISPOSA   With booster pump (optional)

DIMENSIONS 135x93x145

HEIGHT:   1450 mm with closed door

                     2500 mm with open doore

WEIGHT:   400 KG

WASHINGTIME:   minimum 45sec – maximum 240 sec (approx.)
