TierraTech® is a leading international company involved in the manufacturing and distribution of Ultrasonic Cleaning Equipment and Systems.
With a wide experience in ultrasonic cleaning technology and a staff of 100 professionals, TierraTech® is directly represented in Spain, France, Germany, the U.S.A., and Mexico, with a distribution network in more than 30 countries, providing commercial support and technical consultations worldwide.
TierraTech® has two production plants, one in Spain, to supply the European market and a second plant in Mexico to serve the American market, as well as a sales and logistic office in France, Germany and the U.S.A.
Our highly qualified technical and commercial teams enable us to offer our services and advice specific to the need of each of our clients, together with the assistance and support of distributors in the countries where we are represented worldwide.
We have a very efficient Research & Development Department, who are working continuously improving our equipment and developing machines for new applications in the ultrasonic cleaning environment. This enables us to provide high quality equipment in ultrasonic cleaning, and guaranteed, high reliability.
One of the principal distinguishing features of our company is the quality, both of our products and our customer service
Since 2008 TierraTech® has a quality management system based on the European regulations UNE-EN-ISO 9000 and is UNE-EN-ISO 9001 certified, under supervision of the Association for normalization and certification TÜV Rheinland under registry number 0.04.09057.
Sustainable development and the improvement of the environment are the two most important factors here atTierraTech®. It is our priority to put into practice the safety of our products ensuring they produce zero impact on the environment.
One of the biggest features of ultrasonic cleaning equipment from TierraTech® is that there is an 80% saving in the amount of water used as compared to traditional cleaning methods as well as considerable energy savings. Here at TierrTech® we are continually researching methods of designing our machines to make them more highly efficiently.
Unsere Produktgruppen
Mehr über uns
Special Interests

Downloads
Dokumente
Keywords
- Ultrasonic cleaning systems
- ultraschallreinigungsanlagen
- ultrasonic cleaners
- diesel ultraschallreinigung
- turbo reiniger maschine
Unsere Produkte

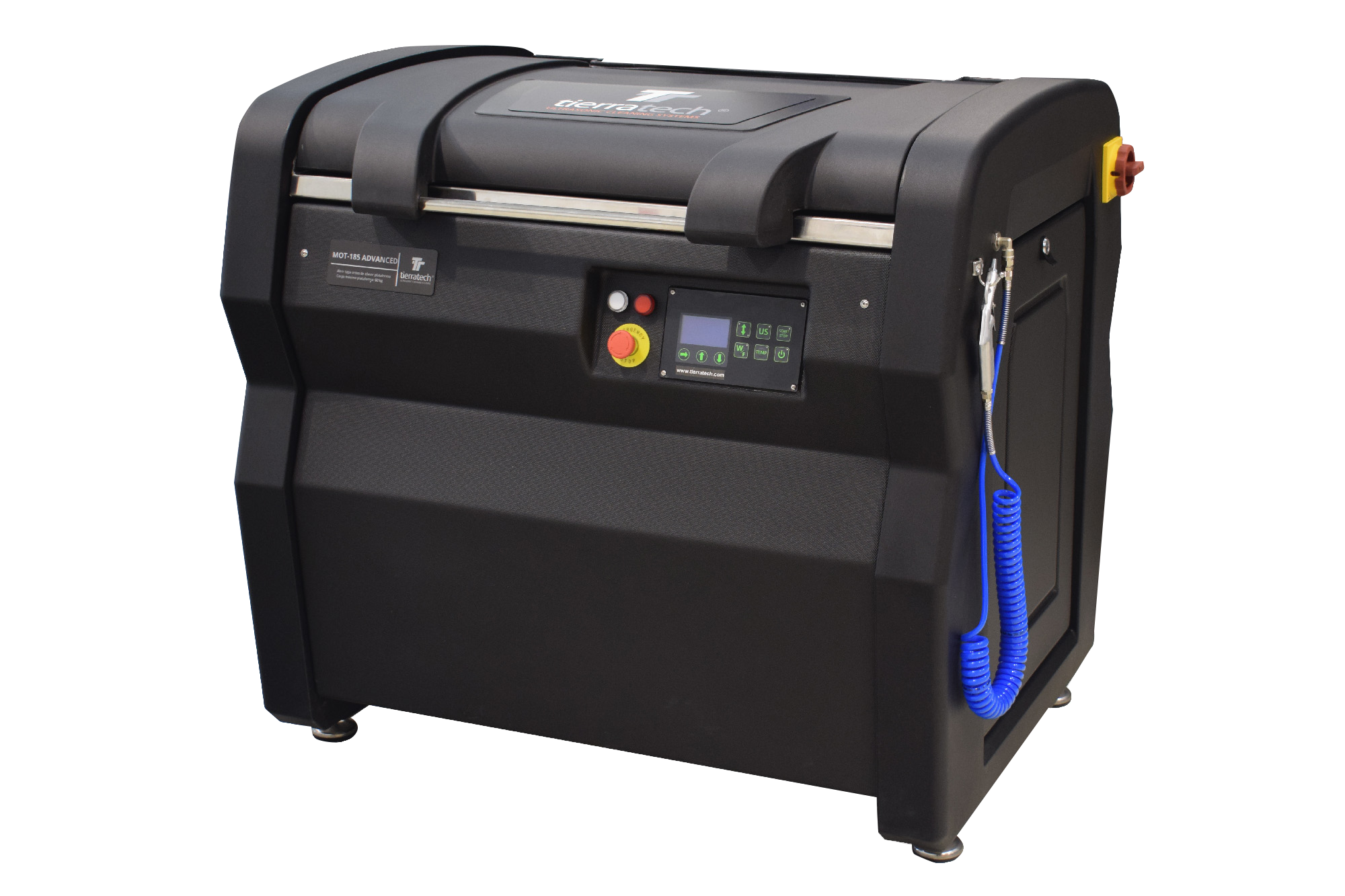

MOT-185 Advanced - Ultrasonic cleaner - 185 litres
ELECTRICAL CHARACTERISTICS
- Power: 220V / 18A - 400V / 12A
MEASUREMENTS
- Internal Measures: 760x520x600 mm.
- Platform measures: 730x455 mm.
- External Measures: 1140x930x1060 mm.
- Capacity: 185 liters
TECHNICAL DATA
Ultrasonic cleaning chamber built in AISI 304 stainless steel of 2 mm thickness and internal chamber of thermal-acoustic insulation of 20 mm thickness.
Opening lid - closure in polypropylene with double wall of 4 mm thickness and thermal-acoustic insulation of 20 mm thickness
Pneumatic platform built in stainless steel AISI 304, with a load capacity of 60 kg, regulator of rise and fall flow and condensation filter.
WFS (Separation of oils), independent tank of the cleaning tank for the capture of oils and particles on the surface of the main cleaning tank, minimum water level detector, drainage for the oil output and maintenance. Capacity 30 L.
Electrical resistance built in stainless steel AISI 316 L and a power of 3500 W.
Bag filter TTF1 (optional) for the removal of sludge from the bottom of the tank made of stainless steel AISI 304, manometer and the possibility of integrating bags of 5 to 200 microns.
GENERATOR AND EMITTERS
Ultrasonic generator, output power of 1700W (3400W p-p) with automatic power monitoring and frequency wave. Frequency of work 40 KHZ, Sweep System 2%.
Ultrasonic emitter, power of 1700W (3400Wp-p) built in stainless steel AISI 316L of 2.5 mm thickness, with piezoelectric transducers IBL steel-titanium high performance.
CONTROL PANEL
7 "screen and TFT display Intuitive screen with direct access to all functions and the possibility of creating different work programs.
Programming in all languages, weekly calendar, time control for preheating the equipment and alarms.
ADVANTAGE
- RAPIDITY OF CLEANING, our high technology of generator-emitter of ultrasounds achieves that 100% of the power emitted concentrates in the area of washing achieving a performance of 20-30% superior to any other equipment of the market.
- COMPLETELY SILENT, between 50-60 dB depending on the type of detergent we use.
- ENERGY SAVING, above 50% due to the perfect insulation and sealing of the equipment.
- ATER SAVING, we minimize the consumption of water and detergent, since we do not have losses by evaporation.
- ROBUST AND MAINTENANCE, due to its design and materials used, we obtain a robust and easy maintenance equipment.

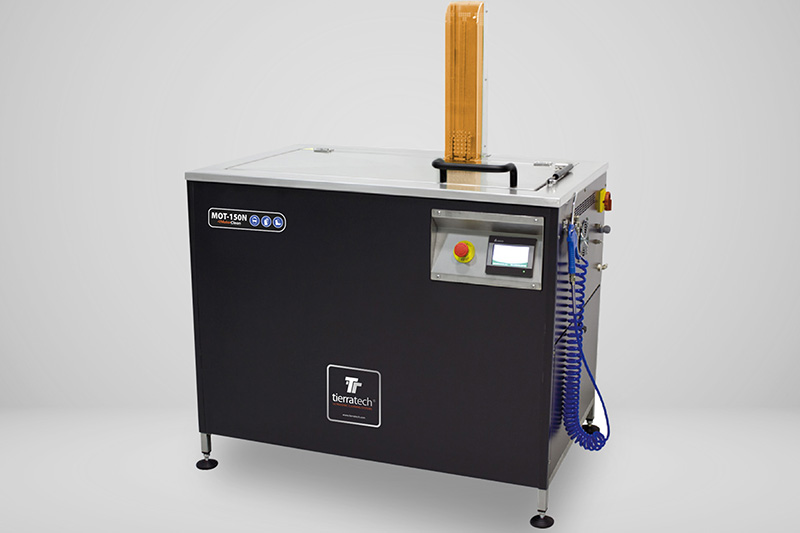

MOT-150N - Ultrasonic cleaner - 150 litres
Capacity: 150 litres
Internal dimensions: 700 x 510 x 540 mm. (excluding auxiliary tank)
Useful measurements: 670 x 415 x 314 mm.
Platform dimensions: 670 x 415 mm.
External dimensions: 1120 x 730 x 920 mm.
Weight: 175 Kg
ELECTRICAL CHARACTERISTICS
- Power Supply: 240V. / 400V.
- Heating element: 3750W
ULTRASONIC CHARACTERISTICS
- Ultrasonic Power: 1700W. (3400W. p-p).
- 1 ultrasonic generator with 1700W. (3400W. p-p) output power.
- 1 submersible emitter built in AISI 316 stainless steel,2.5 mm, with 34 IBL piezoelectric transducers, high-performance titanium-steel.
- Working frequency: 40 KHz sweep system ± 2%.
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
FINISHING AND ACCESSORIES
- AISI 304 stainless steel tank, 2 mm thick.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm. • Reinforced pneumatic platform for loading and immersing. Maximum load capacity: 60 Kg.
- ½” water inlet ball valve and a 1” one for drainage.
- Silentblock legs, adjustable in height
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts.
- Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
AUTOMOTIVE
- General workshop
- Diesel injection workshops
- Grinding workshops
- Turbocharger workshops
- Engine rebuilding work
- Gearbox repair shops
- Marine
- Heavy machinery
INDUSTRIAL EQUIPMENTS
- Aeronautic industry

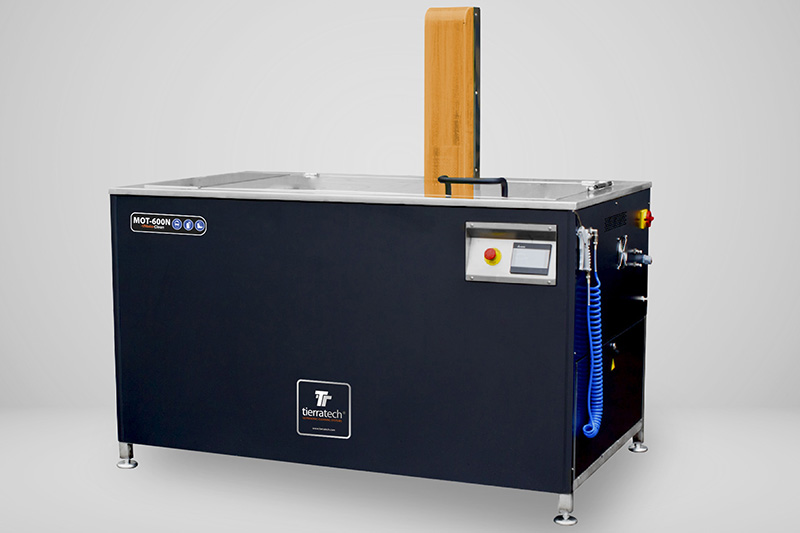

MOT-600N - Ultrasonic cleaner - 600 litres
Capacity: 600 litres
Internal dimensions: 1300 x 800 x 665 mm. (excluding auxiliary tank)
Useful measurements: 1240 x 636 x 415 mm.
Platform dimensions: 1245 x 636 mm.
External dimensions: 1740 x 1040 x 1070 mm. (including auxiliary tank)
Weight: 400 Kg.
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 9000W.
ULTRASONIC CHARACTERISTICS
- Ultrasonic Power: 5100W. (10200W. p-p).
- 2 Ultrasound generators with a total output power of 5100 W (10200 W p-p).
- Working frequency: 40 KHz with a frequency sweep System (Sweep System ± 2%). 3 submersible emitters of 1700 W each.
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
FINISHING AND ACCESSORIES
- AISI 304 stainless steel tank, 2.5 mm thick.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- Reinforced pneumatic platform for loading, packing and unloading with capacity for 350 Kg.
- ½” water inlet ball valve and a 1½” one for drainage.
- Silentblock legs, adjustable in height
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Ancillary external tank to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- Sloping bottom to facilitate cleaning.
AUTOMOTIVE
- Grinding workshops
- Turbocharger workshops
- Engine rebuilding work
- Gearbox repair shops
- Marine
- Heavy machinery
INDUSTRIAL EQUIPMENTS
- Aeronautic industry

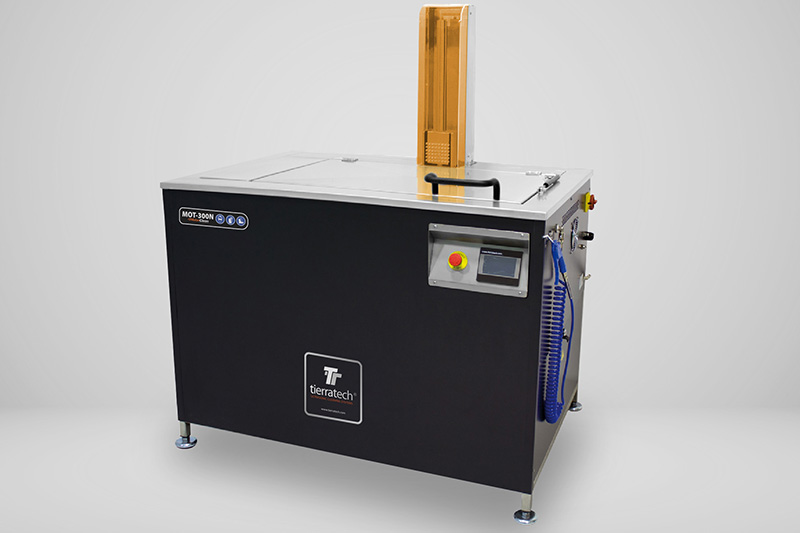

MOT-300N - Ultrasonic cleaner - 300 litres
Capacity: 300 litres
Internal dimensions: 900 x 650x 640 mm. (excluding auxiliary tank)
Useful measurements: 850 x 495 x 360 mm.
Platform dimensions: 850 x 495 mm.
External dimensions: 1340 x 890 x 1020 mm.
Weight: 300 Kg.
ELECTRIC CHARACTERISTICS
- Power Supply: 400V.
- Heating element: 7000W.
ULTRASONIC CHARACTERISTICS
- Ultrasonic Power: 3000W. (6000W. p-p).
- 1 ultrasound generator with an output power of 3000 W (6000 W p-p).
- Working frequency: 40 KHz with a frequency Sweep System (Sweep System ± 2%).
CONTROL PANEL
- 4.3” TFT LCF touch screen. Functional and intuitive; with access to select the time of the ultrasounds, temperature and peripherals or optional systems; and it is programmable on a weekly calendar.
- PLC with a temperature model fitted with 7 outputs and 7 inputs.
FINISHING AND ACCESSORIES
- AISI 304 stainless steel tank, 2 mm thick.
- Exterior steel panelling with a special anti-fingerprint finish. Easy to clean.
- K-Flex Duct Net thermal and acoustic insulation, 20 mm.
- Reinforced pneumatic platform for loading and immersing. Maximum load capacity: 250 Kg.
- ½” water inlet ball valve and a 1½” one for drainage.
- Silentblock legs, adjustable in height.
- Heat-insulated stainless steel end-of-day lid.
- Compressed air gun to dry parts. Integrated system to separate lubricants and oils. Removes residue from the surface of the ultrasound tank, keeping the cleaning equipment in perfect condition.
- (Optional): filtering system (stainless steel filter with a polypropylene/polyester bag) for residue and mud.
AUTOMOTIVE
- General workshop
- Diesel injection workshops
- Grinding workshops
- Turbocharger workshops
- Engine rebuilding work
- Gearbox repair shops
- Marine
- Heavy machinery
INDUSTRIAL EQUIPMENTS
- Aeronautic industry

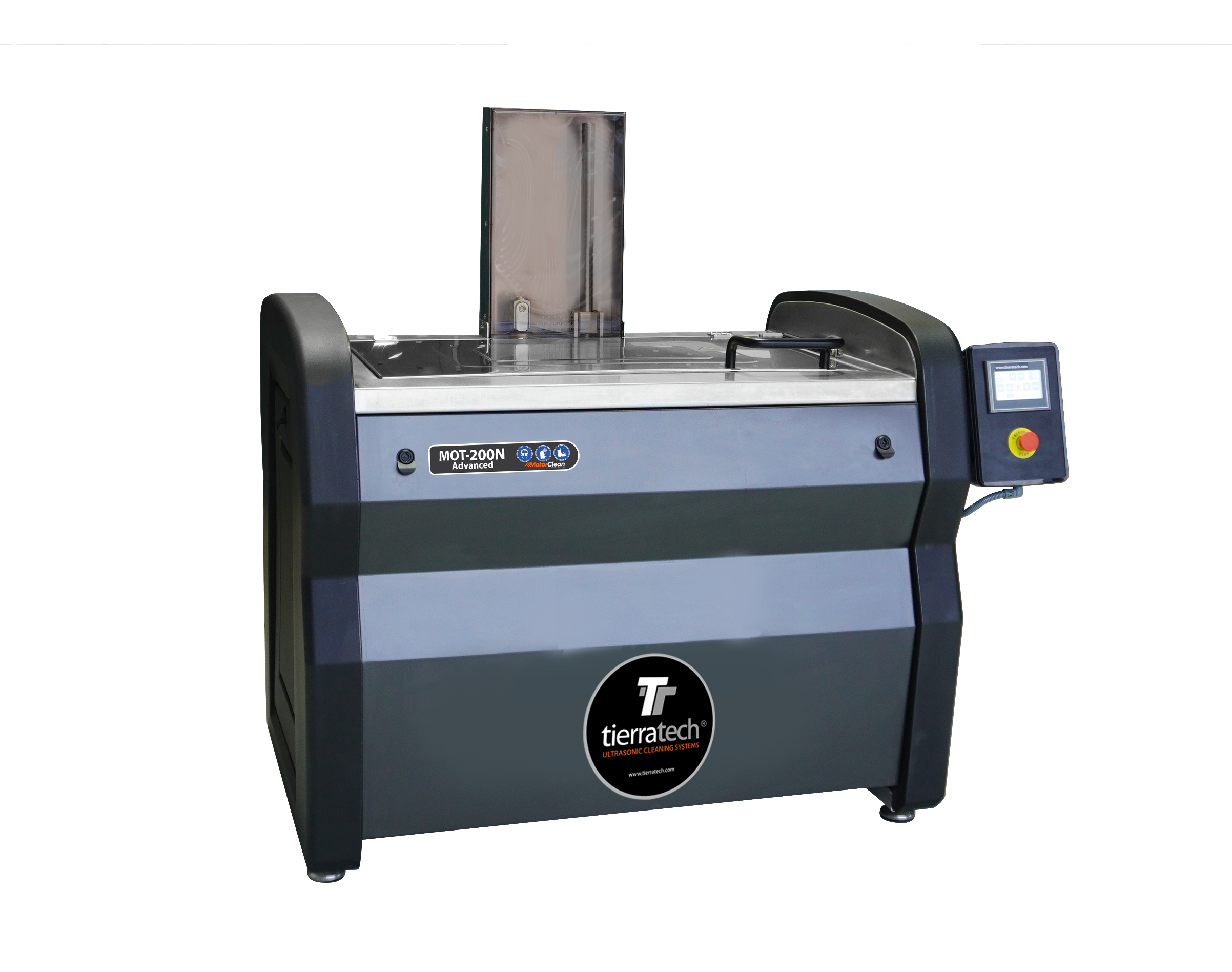

MOT-200N ADVANCED
- USEFUL MEASUREMENTS: 730x465x370
- INTERNAL DIMENSIONS: 760x520x590
- MAIN TANK CAPACITY: 27 5
- WFS CAPACITY: 38
- POWER SUPPLV: 240V /
- HEATING ELEMENT:
- ULTRASONIC POWER: 2000Wp (4000Wp-p).
- 7 Ultrasound generator with an output power of 2000Wp (4000Wp-p).
- 2000W ultrasonic emitter (4000Wp-p) of power built in stainless steel AISI 376 2.5mm thick with 38 high-performance titanium-steel IBL piezoelectric transducers with 60Weach
- WORKING FREQUENCV: 40 KHz. Frequency sweep System (Sweep System ± 2%)
- PNEUMATIC PLATFORM: made of stainless steel AISI 304, with a loading capacity of up to adjustable rising and lowering flow and condensation filter
