A-490 is an Oil Transfer Pump, designed to deliver base oil, transmission oil.
It mainly features the following points:

1. 2-Piece Telescoping Suction Tube
Telescoping suction tube allows this pump to fit 15-55 gallons drums.
With this range, this pump can be applied to most of drums in the market.
User is able to easily adjust the length when inserting into the drum.

2. Removable metal spout is threaded to fit all garden hose
A-490 comes with a metal spout which is removable.
With connection to a garden hose, users can apply the pump in an ideal condition.

Tool Specification:

• Dispenses approx. 250 c.c. per stroke
• 2-Piece telescoping suction tube
• Removable metal spout
• Three type of bung threads:
  (1) Single type - 2" bung thread
  (2) American type - 1 1/2" and 2" dual bung thread
  (3) European type - 2" dual bung thread

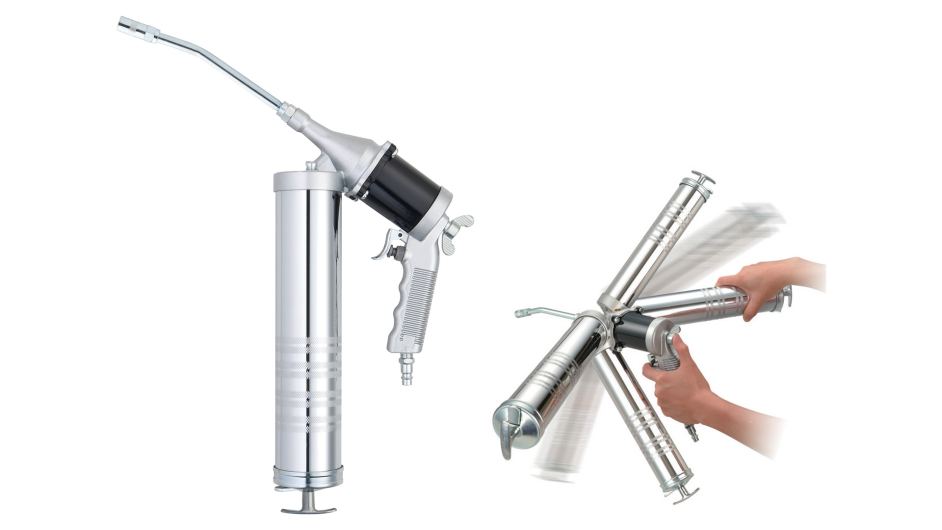

A-488NSC is a Manual Grease Gun with Suction patented design.
It mainly features the following points:

1. Two way operation handle (Suction patented)
The gun handle has two modes: Pistol-grip type and Lever type.
Users can easily switch the tool to each type.
This patented design gives user multiple application options.

2. Black cover of handle
This is to enhance the grip.
Not only does it increase safety, but also increase user comfort.

3. 18" flexible nylon hose with spring guard
With nylon hose, user can operate this tool in limited space.
The spring guard extends hose life.

Tool Specification:

• Capacity: 400 c.c. Bulk / 14 oz. Cartridge
• Two-way operation design
• Variable Stroke
• A black lever tip enhancing the grip
• Standard accessory: AW-401-18" (18" nylon hose)
• Pistol Type Pressure Range:
  Working pressure: 3,600 psi
  Maximum pressure: 8,000 psi
• Lever Type Pressure Range:
  Working pressure: 4,500 psi
  Maximum pressure: 10,000 psi

AL-504 is a Dual Way Suction Gun.
It mainly features the following points:

1. Dual transfer way in single tool
This suction gun has two flexible hoses.
One is for removing used oil in the machine, another is for adding new oil.
It provides user a fast and clean method to finish two jobs at the same time.

2. Lightweight body
The gun tube is made of aluminum, keeping the wight low.
This design provides convenience for users to work throughout the day.

Tool Specification:

• Capacity: 500 c.c.
• Aluminum tube
• 2 pieces of 47" Flexible Hose (PVC)
• V-type reversing valve

AE-900 is a Cordless Grease Gun 2-Speed 18V Kit.
It mainly features the following points:

1. Two Speed Grease-Output Design
AE-900 has two speed mode.
Users can choose between max. pressure and max. flow rate.
(1) High speed with low pressure
Provide user a fast way to refill grease in a device.
-Flow rate: 280g / min.
-Max. pressure: 6,000psi (protection)
(2) Low speed with high pressure
Assist user to remove grease clog (old oil) in a device.
-Flow rate: 100g / min.
-Max. pressure: 8,000psi (protection)

2. 42 Inch High Pressure Flexible Nylon Hose
42" nylon hose allows user to work in limited space.
High pressure design provides user safety during the operation.
This nylon hose comes with: Spring guard and Anti-drop cap.
Both these enhance the protection for user and tool.

3. Built-In LED Light
LED light is built in the gun head.
It is useful when the user needs to operate the tool with limited light.
LED light will automatically turn off within 10 seconds if there is no activity.

4. Two Protection Devices
AE-900 is designed with two protection to enhance the durability.
(1) Power-off circuit protection device
Once tool pressure reaches below, power outage will be triggered.
All operation will stop immediately to avoid power overloading.
-High speed mode: 6,000 psi
-Low speed mode: 8,000 psi
(2) Released valve protection (Mechanism)
Once tool pressure reaches below, AE-900 will start to release the pressure.
This device protects users from risk of excessive pressure.
-High speed mode: 9,000 psi
-Low speed mode: 9,500 psi

5. Rechargeable Battery
AE-900 comes with 18V battery (1pc) and charger (1pc).
Charging a grease gun battery from 0 to 100% only takes 45-50 minutes.
To ensure the longevity, battery will automatically cut off once fully charged.
With full-charged battery, AE-900 can deliver 9 cartridges of grease in high-pressure mode.

Tool Specification:

• Capacity: 400 c.c. Bulk / 14 oz. Cartridge
• Two-Speed Flow Design
• Built-in LED Light
• Built-in Released Valve
• Power-off Circuit Protection Device
• 42” Flexible Hose With Spring Guards
• With Hose Clip & Anti-drop Hose Cap
• Battery Charger with plug
• Li-ion Battery (18V, 2.5Ah)
