Unique lifting system

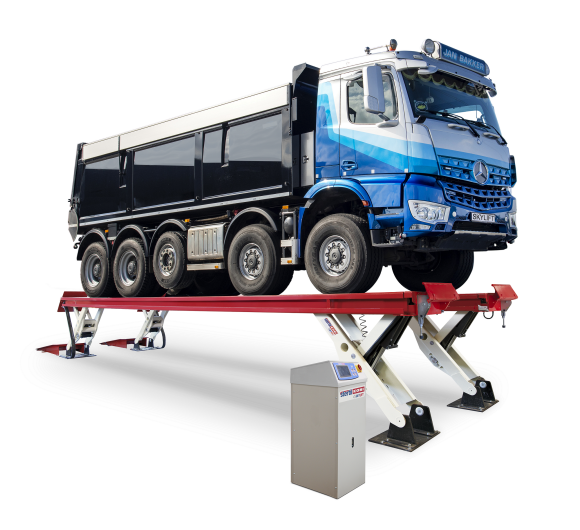

The Stertil-Koni SKYLIFT is completely vertical in its lifting operation. There is no overhang, meaning that this lift takes up less space than a parallelogram vehicle lift. Due to the unique Y-shaped construction of the lift supports and base plates, the forces are diverted as effectively as possible. This allows for a relatively light construction. Furthermore, this Y-shaped construction allows ample room for free movement under the platforms.

There are no cross beams, scissors or columns to get in the way. The mechanic is therefore able to move about freely under the platforms, something which is impossible with a traditional scissor lift.

Specifications

• ebright Smart Control System, providing visual information about the lifting process
• Vertical lifting
• Programmable lifting height
• Error diagnosis system
• Possibility to have the vehicle lift lowered manually in case of power failure

Options

• Jacking beams available in 12 & 16 t capacity
• Wash bay model
• Air supply set
• Two speed lowering
• Remote control with 10 m cable
• LED lighting
• Anti-slip plates
• 1250 mm long platform extensions
• Platform extensions suitable for wheel alignments
• Synchronisation set for tandem configuration
• Recess cover plates for flush-mounted models

Maximum safety

• ANSI/ALI-ALCTV certified (USA)
• CSA certified (Canada)
• CE certified (Europe)
• Low-voltage control box
• Automatic protection against overloading
• Independent mechanical locking, beginning at 90 mm above floor level
• Microprocessor-controlled synchronisation system

More information

For more or specific information about the Stertil-Koni SKYLIFT or one of the other quality products provided by Stertil-Koni, please feel free to get in contact with us. We will be happy to help you.

 *Technical specification are available on: www.stertil-koni.nl

Surface mounted

Flush mounted

*Flexible dimensions depend on the requirements of the customer

Model SKY.200, SKY.250, SKY.350

Lifting capacity 20,000kg, 25,000kg, 35,000kg

Lifting system hydraulic

Lifting height 1750 mm

Lifting time 90 sec

Available platform lengths  7-8-9mtr 8-9-10-12-14.5 mtr

Motor capacity 9 kW
