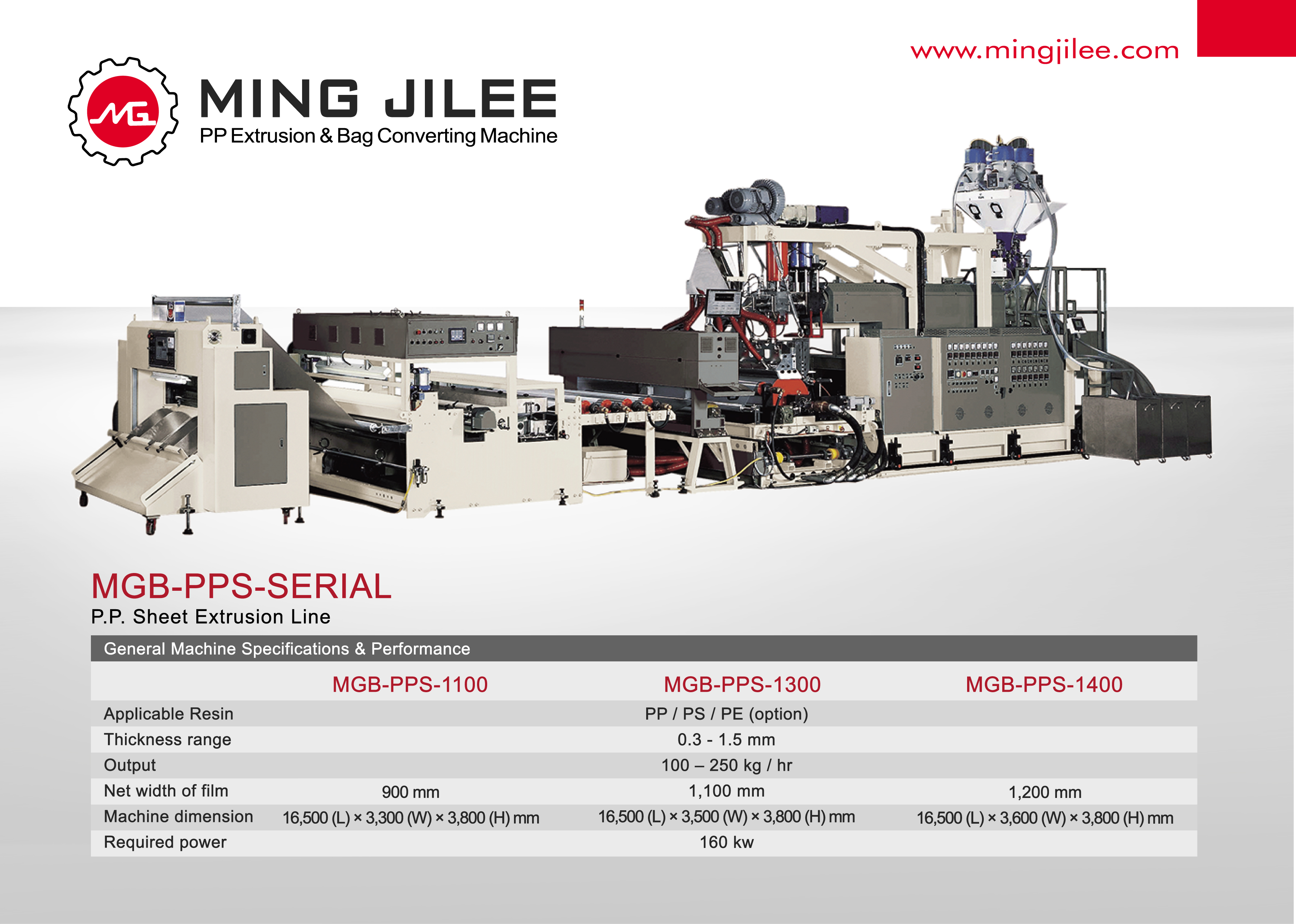

• Stand of extruding unit can be movable forward and backward which will increase convenience on controlling.
• Screw is special mixing function and hi-plasticizing capability design, it incorporates with European imported static mixer to ensure melting of resins, homogeneous color and increase on extruding output.
• T-die is special double throttling design to enable adjustment for sheet thickness to be more accurate.
• Temperature control uses SCR system, tolerance of temperature for that is±1℃, this may precisely control plasticizing processes, sheet thickness, flatness and neatness.
• Embossing station is operated lifted up and pulled down freely. During operation, this will provide more choices for both thick sheet and thin sheet and to upgrade product quality.
• Sheet thickness control uses screw and pressing roller two-way adjustment, this may control the sheet thickness precisely.
• Sheet length is control by PLC and driving by servo motor to get accurate size.
• Electric control box: it completely uses high class and qualified accessories and it is of save space design, operation for that is simple and convenient.

ModelMGA-17A-700DSPEX+17P-355A

General Machine Specifications

Machine Dimension11,500 (L) x 3,500 (W) x 2,200 (H) mm

Machine Weight7,955 kg

Required Power30 kw

Machine Performance :
Feeding Materials CPP & PP blown film

Thickness (By Gauge Measurement)0.03 - 0.1 mm

Effective SizeA4

Main Cutting Machine Speed 260 - 400 pcs/minOutput (With Packing System)a. 50 - 100 pcs/bag
b. 20 - 25 pcs/bagSame Direction Packing
360 - 400 pcs/min
160 - 200 pcs/min

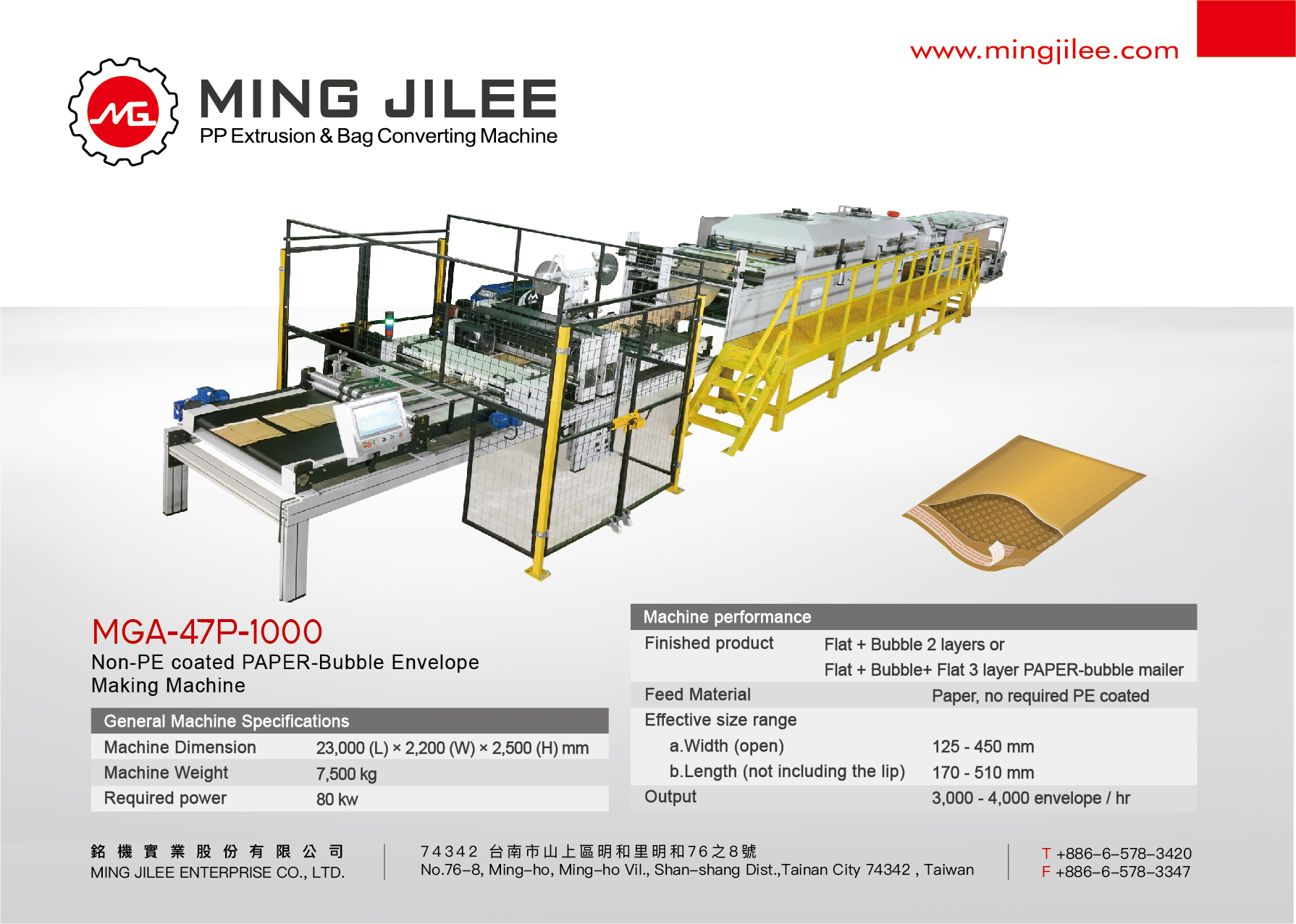

MGA-47P-1000 Non-PE coated PAPER-Bubble Envelope Making Machine
Material is 100% paper and inline bubble embissing.
Laminated by water base sovent.

General Machine Specifications

Machine Dimension : 23,000 (L) × 2,200 (W) × 2,500 (H) mm
Machine Weight : 7,500 kg
Required Power : 80 kw

Machine Performance
Finished product : Flat + Bubble 2 layers or
Flat + Bubble + Flat 3 layer
PAPER-bubble mallerFeed MaterialPaper, no required PE coated

Effective size range
a. Width (open)
b. Length (not including the lip)
125 - 450 mm
170 - 510 mm

Output3,000 - 4,000 envelope / hr

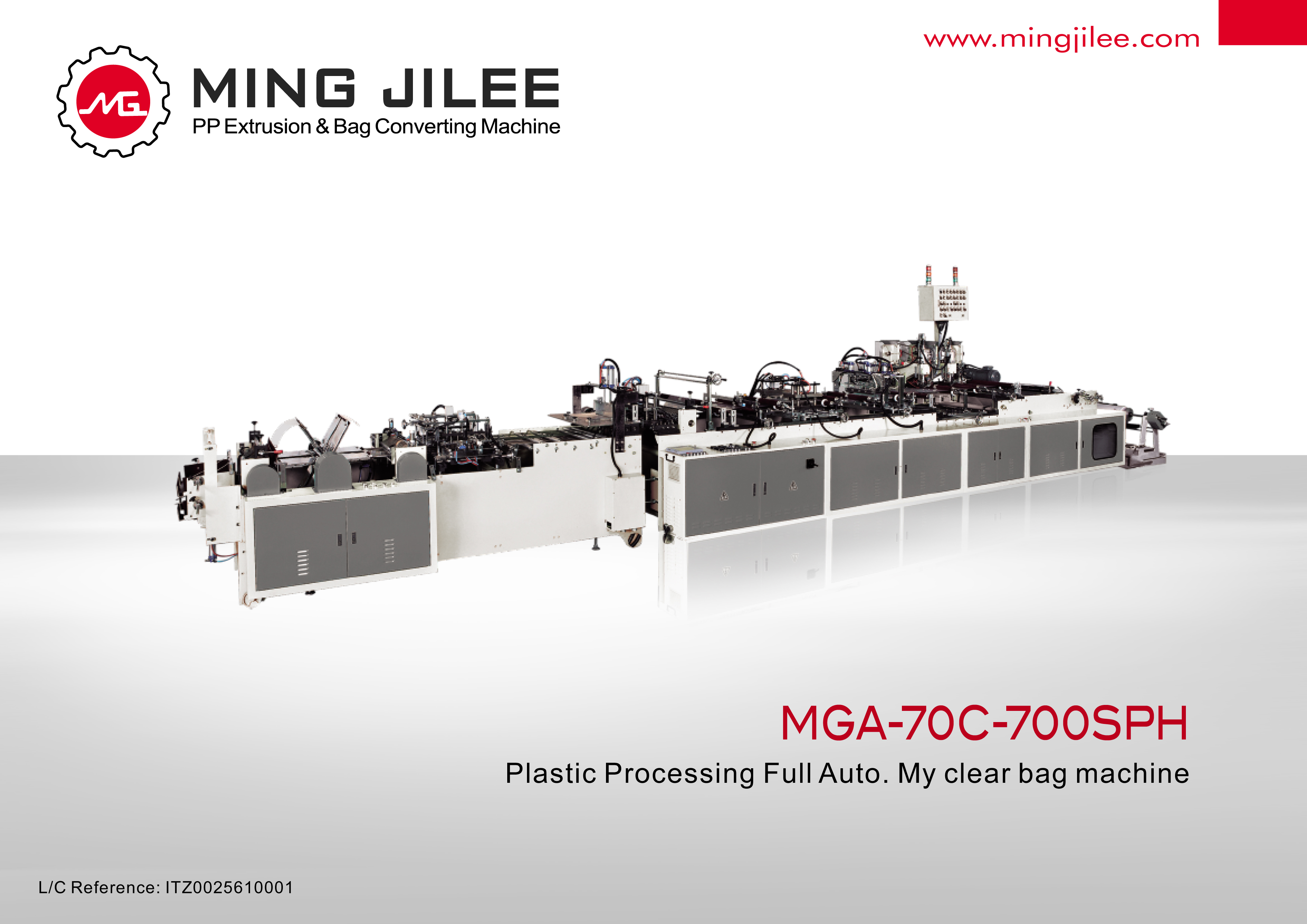

• Special designed for my clear bag (209), PP envelope, PP button envelope production. It is fully automation machine from the material in roll form to produce my clear bag (209), PP envelope, PP button envelope. Machine saving the labor cost and increase the production output.
• High quality machine component with control and monitoring system, automatically stop when any problem occurred, prevent the material waste and protect the machine.
• Machine is equipped the high precise button riveting machine. The performance of machine make low failure rate, ensuring the button position is precise.
• Optional precise punching mold is allowed machine producing different size of clear bag (209), PP envelope, PP button envelope.

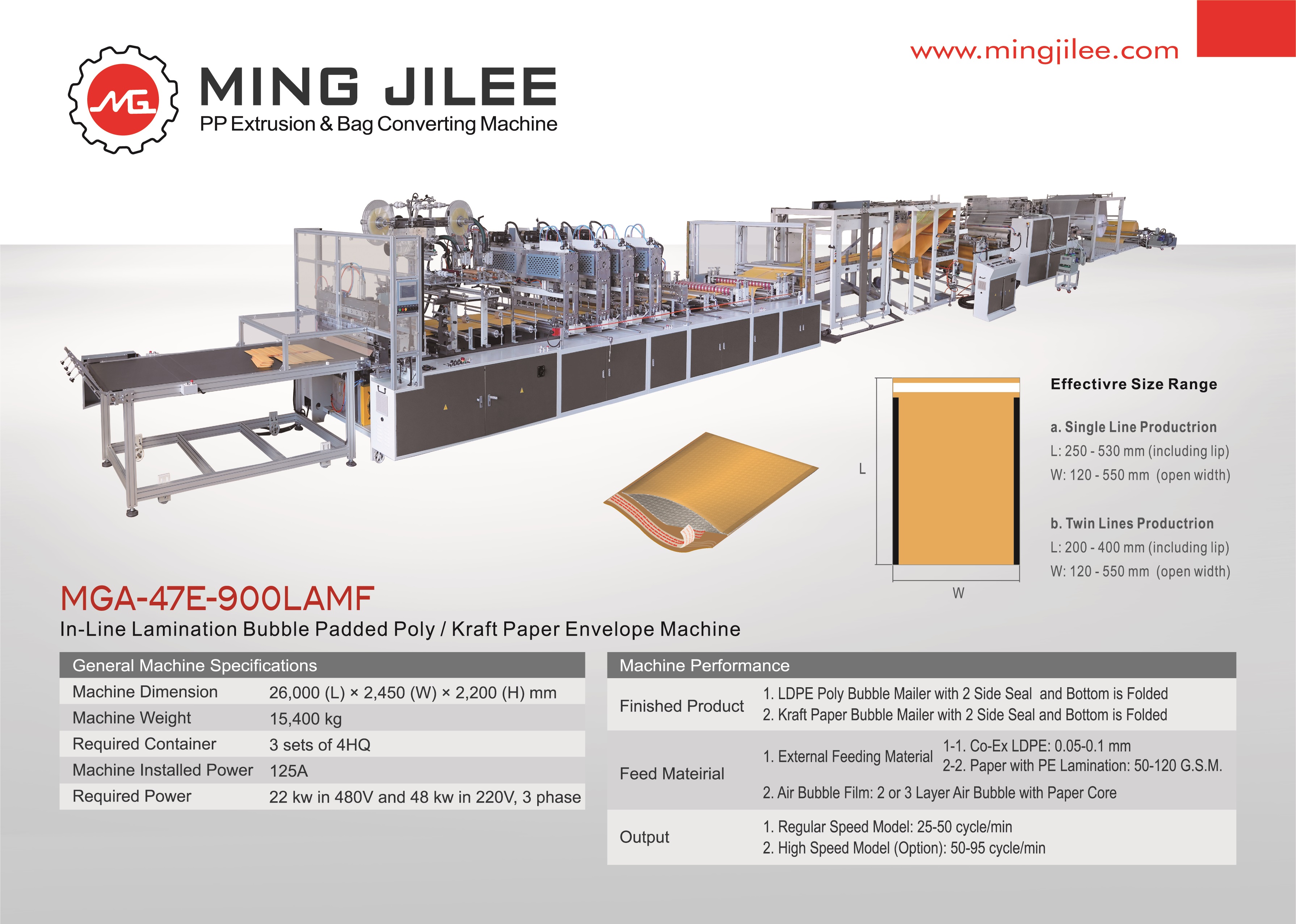

MGA-47E-900LAMF, Kraft Paper / PE Poly Bubble Mailer Making Machine is best design to produce Kraft paper / Courier PE Bubble Mailer. You just need to prepare separate material from Kraft Paper, Co-extruded LDPE film and Air Bubble Film, then you will get the perfect PE Courier & Kraft Paper Bubble Mailer.

• Air Bubble quick change: Due to the shorter length of air bubble, we design the quick change device to reach non-stop production for saving the waste because of the changing material.
• Best Lamination quality: Kraft Paper / PE Poly Bubble Mailer Making Machine is installed European brand lamination system to do in-line lamination for Kraft paper with air bubble film or LDPE with air bubble film. With special design, we won’t break the air bubble after laminating processing.
• Strongest edge Sealing Seam: The transversal sealing seam of Kraft Paper / PE Poly Bubble Mailer Making Machine is controlled by motor, with mechanical driven system, it makes sure the operator to get the higher pressure and best sealing quality.
• In-line hot melt glue system: MING JILEE only choose the global and premium suppliers to install the hot melt system on MING JILEE Kraft Paper / PE Poly Bubble Mailer Making Machine. it gets perfect glue control to reach intermittence glue or continuous glue function.
• Synchronizing length control: Kraft Paper / PE Poly Bubble Mailer Making Machine is equipped many servo motors to Synchronize the length supply. With special belt system, we can feed the precise length to cut the exact setting size without any slippery of material.
• Multi-function auto conveyor: with serval quantity setting, to get special stacking as operator’s favorite way. It helps operators to take already counter mailer for last packing purpose.
