Infralyt Smart was designed to carry out the exhaust inspection (AU) at OKat, UKat, GKat and GKat with OBD vehicles. A simplification of the "board Cutter" formula calculates and displays an air-fuel ratio from the exhaust gas values, which means that The stoichiometric quality of the overall combustion process can be decided.

With the Opacilyt 1030 diesel Smoke meter, the unit can be upgraded to a combined system.

Compact workshop device for carrying out the exhaust gas inspection on diesel vehicles
With speed detection for conventional vehicles
With the BT OBD module for modern OBD vehicles
Future-proof for Euro 6 vehicles

Infralyt - Ranges:

CO          0-10 % Vol.

CO2       0-20 % Vol.

HC          0-2500 ppm Vol.

NO         0-5000 ppm Vol. (optinal)

O2          0-22 % Vol.

Temperature measuring range               0-130 °C

Working temperature                                 5-45 °C

Warm-up time                                                  30 s

Accuracy                                          OIML Klasse 0

Interfaces                                        RS232, USB,

Options:

BT, LAN, printer, speed oiltemperature, OBD

OBD-protocols:

ISO DIS 14230-4 (KW2000), SAE J1939, WWH ISO 27145, ISOP 9141-2, SAE J1850 (Modi PWM und VPM), ISO DIS 15765-4 (CAN)

Dimensions                                   158 x 330 x 203 mm

Mass                                              6,5 kg

Operating voltage                          220 V AC


Opacilyt Ranges:

k-Wert                                            0-10 m-1

Turbidity                                         10-100 %

Particle mass concentration           0-844 mg/m³

speed                                             360-8000 min-1

oil temperature                               0-150 °C

working temperature                       5-45 °C

Measured value adjustment           automatik (Light-Dark Test)

Operating voltage                     230 V / 50 Hz, 12 V DC

Interfaces                                  RS232, BT (optional)

Dimenssions                             585 x 230 x 161 mm

Mass                                         ca. 10 kg

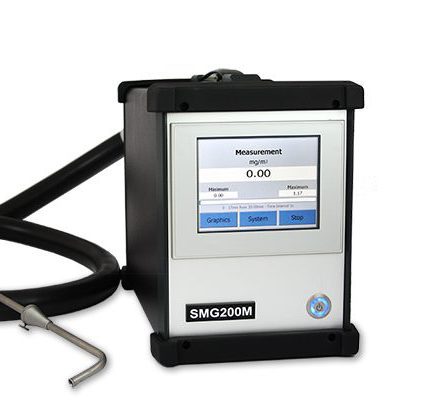

universal mobile dust meter.
based on the principle of laser scattered light, particle mass concentrations can be detected with the SMG200M

• multi-channel laser –scattered light processes
• precise measurement from 200 μg/m³
• media temperature up to 500 °c,
• dew point up to 80 °c
• high contrast color touchscreen
• remote control function and data logger
• qualifies for various types of particles

Measuring range:
Particle size               0.04... 10 µm
Measuring ranges      0.... 250 mg/m³
Measuring accuracy  0... 4 mg/m³ ± 0.2 mg/m³
                                   > 4 mg/m³ ± 5% MW
accuracy                    ≤ ± 3%
Reference                  DEHS
Particle Flow:
Extraction                  hot-extractive (100 °c)
Dew point                  ≤ 80 °c
Media temperature    < 500 °c to probe tip
...
Warm-up time           < 10 min
Zero Point Adjustment 15 s
Dimensions                210 x 275 x 375 mm
Mass                           7.5 kg
Protection class          IP40
Sound pressure level  < 75 db

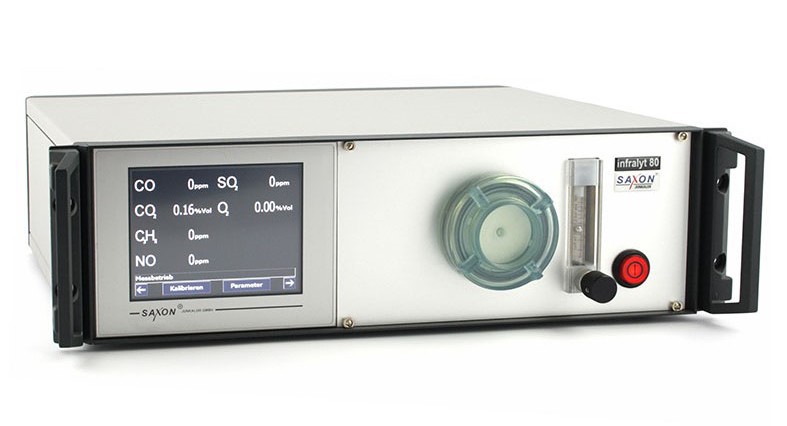

• Gas analysis system for up to 8 (special solution 10) gases/measuring ranges at the same time - Customer-specific gases, measuring ranges, gas transport and processing
• High contrast colour touch screen,   intuitive operation, freely configurable
• Suitable for fully automatic operation in   process Control/monitoring

Applications:

• Chemical, metal processing and material last industry
• Industrial Furnace Construction
• Combustion machines
• Biotechnology/Bioenergy
• Research & Development Measuring ranges: MIN - MAX

Co 0... 1000 vppm – 0... 100% Vol.
CO2 0... 50 vppm – 0... 100% Vol.
HC 0... 500 vppm – 0... 1% Vol. Equiv. C6H14
C3H8 0... 1000 vppm – 0... 2% Vol.
CH4 0... 1% Vol. – 0... 100% Vol.
No 0... 2000 vppm – 0... 5000 vppm
SO2 0... 1000 vppm – 0... 2000 vppm
Measuring range electrochemically:
02 0... 21% Vol.
No 0... 2500 vppm – 0... 5000 vppm
Measuring range para-magnetic:
O2 0... 21% Vol.

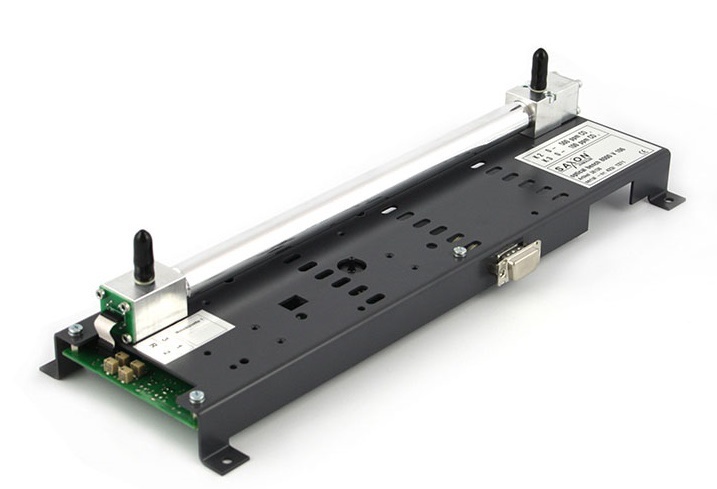

Compact, freely configurable NDIR-bank, also for TOC applications
Analogue outputs 4... 20 ma integrable
Special version available for TOC analyzers
Location independent operation
Permanent temperature and pressure compensation,
Reference channels for maximum precision
Electrochemical cells integrable

Ranges:
Co 5000 vppm, 10% vol., 40% vol.
CO2 100 vppm, 1000 vppm, 10% vol., 100% vol.
C3H8 2,000 vppm, 5,000 vppm, 2% vol. Multi-channel NDIR for up to 6 gases,
TOC version with high-resolution 100ppm CO2 Channel,
Outputs RS232 and analogue 4-20mA (option)
for direct integration into TOC analyzers and process controls
Other Gases on request

INFRALYT M - the gas detector for the analysis of gasoline engines

OPACILYT M - the smoke meter for the analysis of diesel engines

With both devices, you can perform the legally exhaust gas measurement on gasoline and diesel engines quickly and conveniently as part of the periodic technical inspection

Both devices convince with the latest technology and reliability,                                                              they are very compact and robust.

Infralyt M and Opacilyt M can be ordered and used as a combination system                                        and are, therefore, ideal companions for mobile and stationary use.
