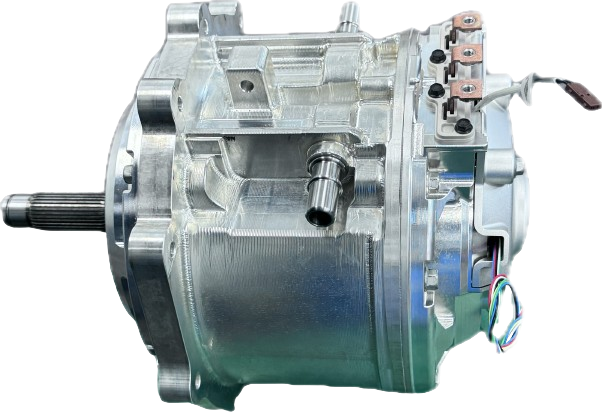

KC1 Motor designed by KCI

Key Benefits

• Longer period of continuous operation
• High efficiency with KCI’s PMSM design
• High reliability and durability

Design Concept

• Hybrid cooling system with air & water cooling
• Reduced AC loss at high-speed with high aspect ratio design
• Low-cost design using KCI’s patents

Characteristics

• DC Voltage: 350V
• Max. Power: 160kW
• Max. Torque: 331Nm
• Max. Speed: 15,000rpm
• Max. Efficiency: More than 96%
• Stator Size: Φ200 x H145
• Motor type: PMSM

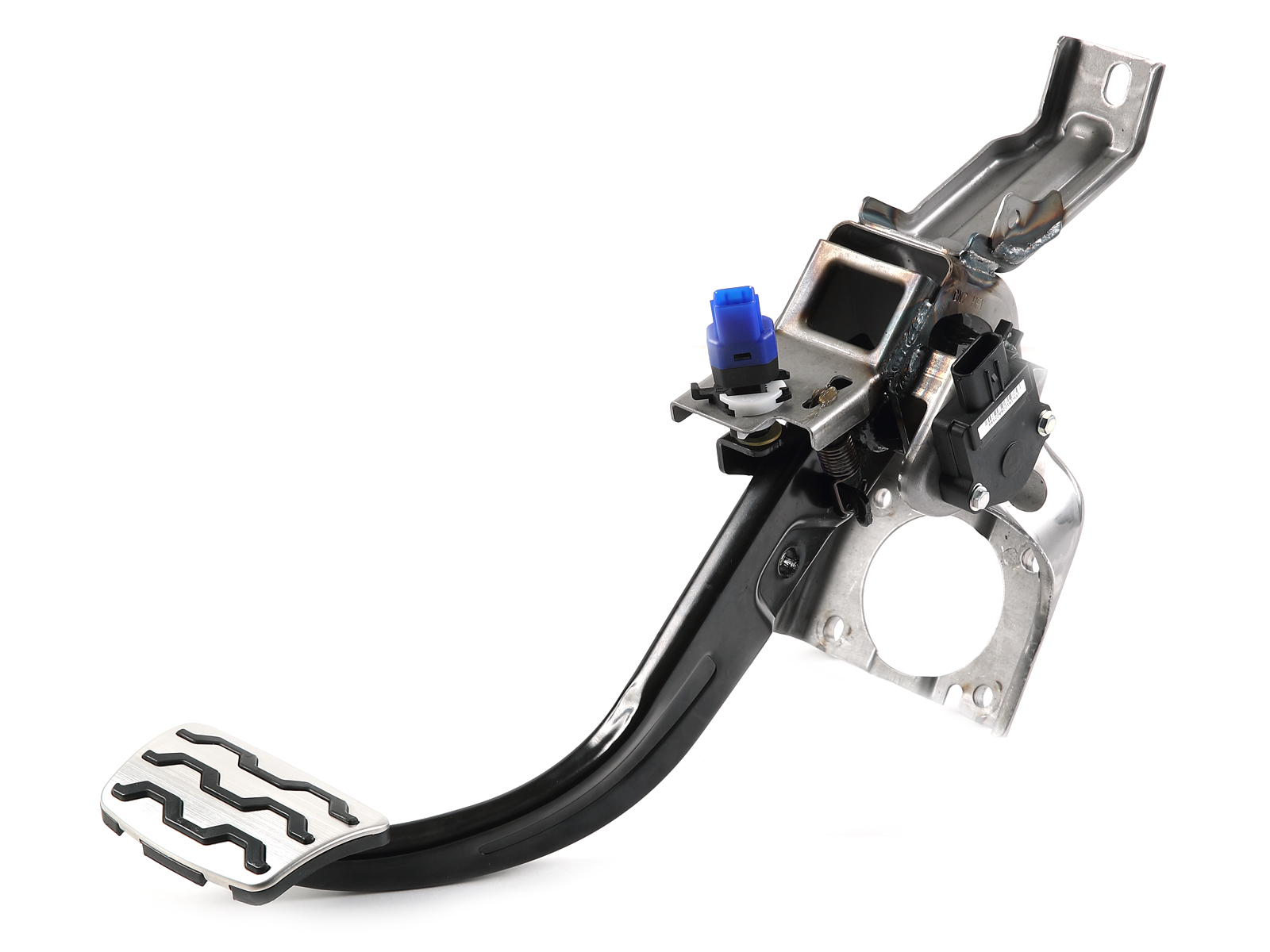

Brake Pedal delivers a driver’s intention to a brake system to control brakes of a vehicle.

• Applied tubular arm for weight reduction
• All-in-one press member
• Developed and applied stop lamp switch
• Applied brake position sensor for HEV and EV

Pedal production capacity: 2.3 million units/year

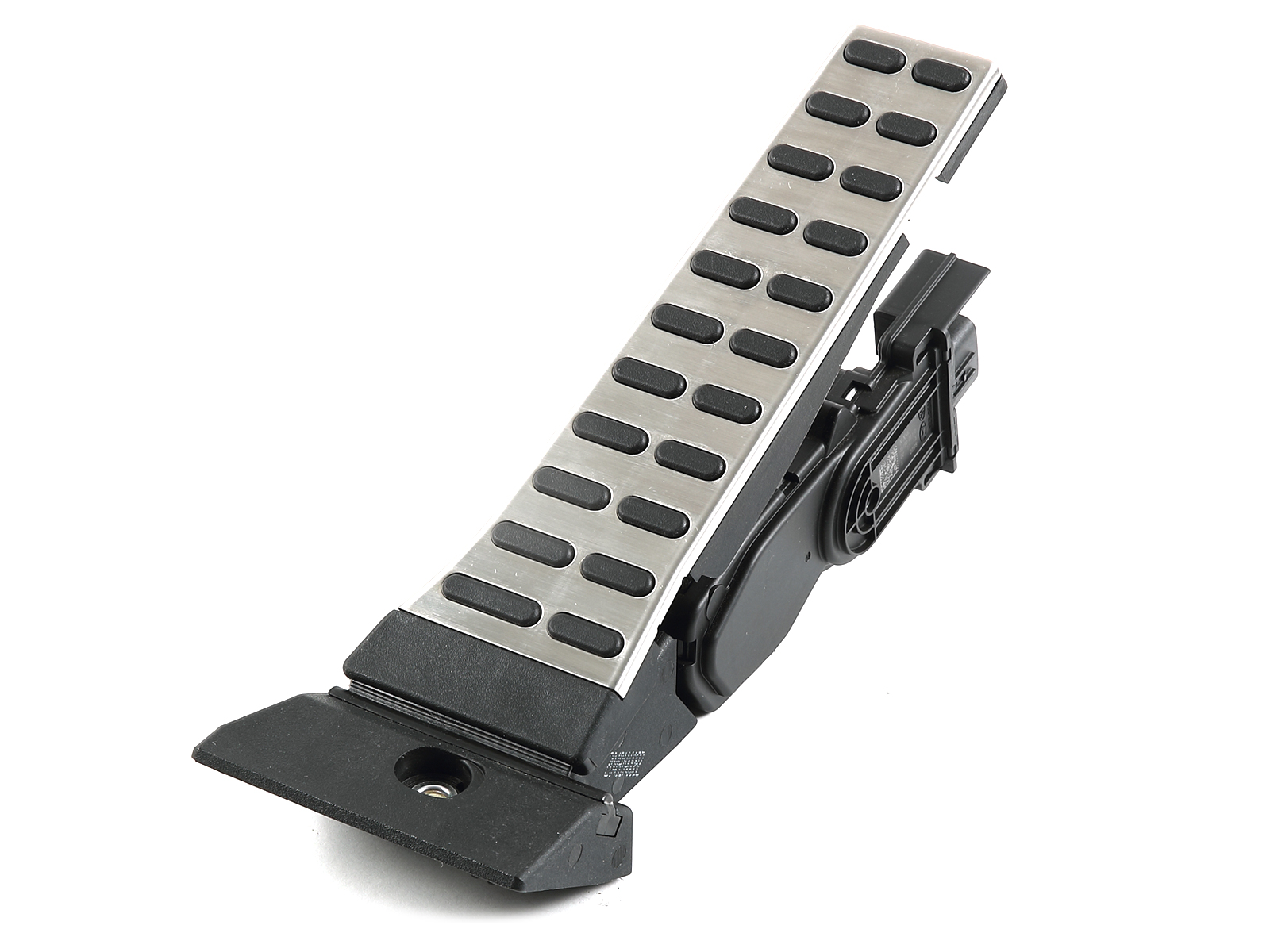

APM controls acceleration and deceleration of a vehicle giving a signal to TPS (Throttle Position Sensor) through APS (Accel Position Sensor).

• Applied contactless sensor
• Hysteresis friction structure design to reduce driver fatigue
• Provide customized operating feel that meets customer need

Pedal production capacity: 2.3 million units/year

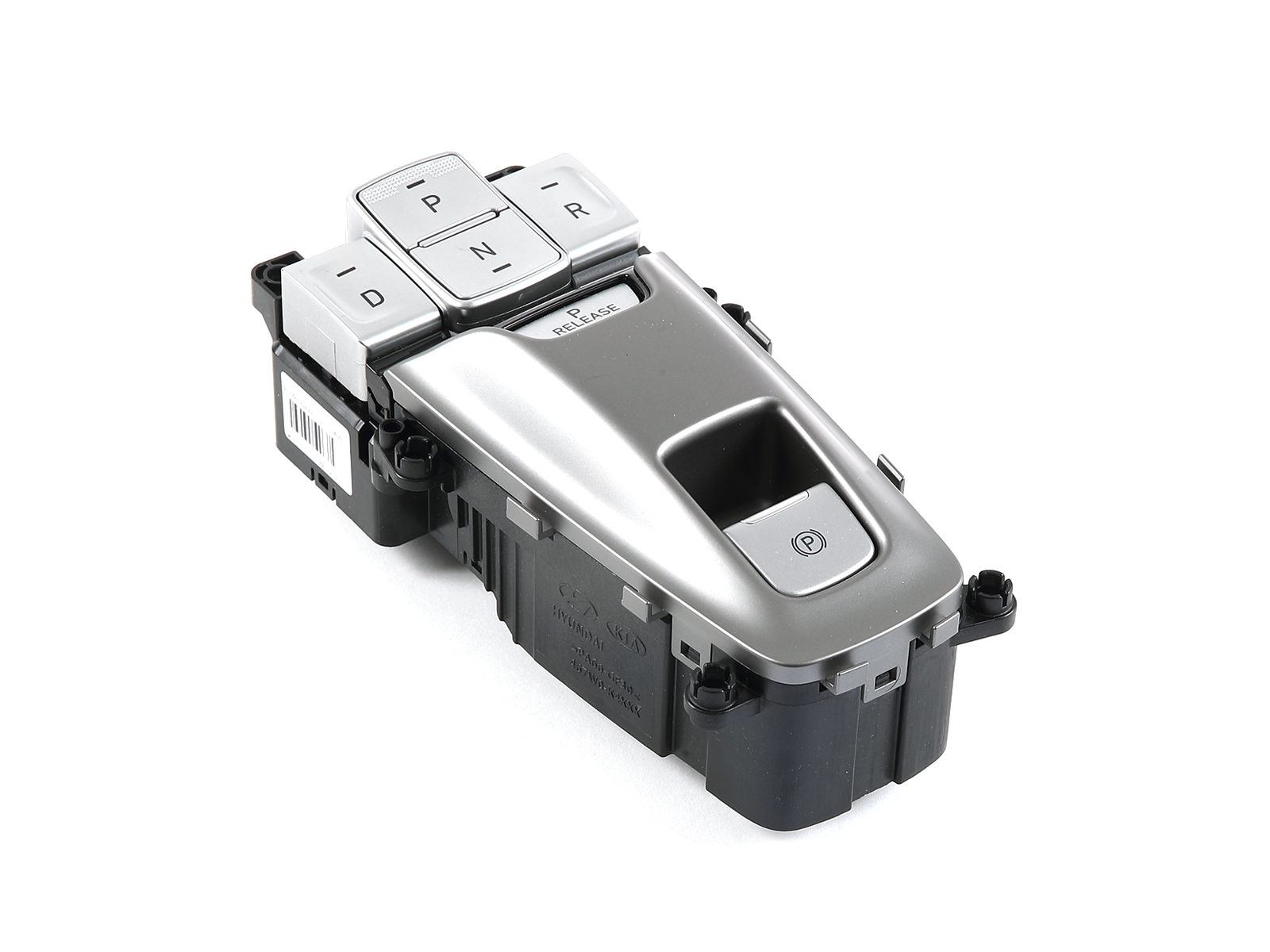

Button-type E-Shifter delivers a driver’s gearshift intention to automatic transmission through button operation at the time of driving a vehicle.

• P/R/N/D gate with buttons
• Detects output values of the contact signal of buttons
• Lights for each button (backlight + indicator)

Shifter production capacity: 3.44 million units/year

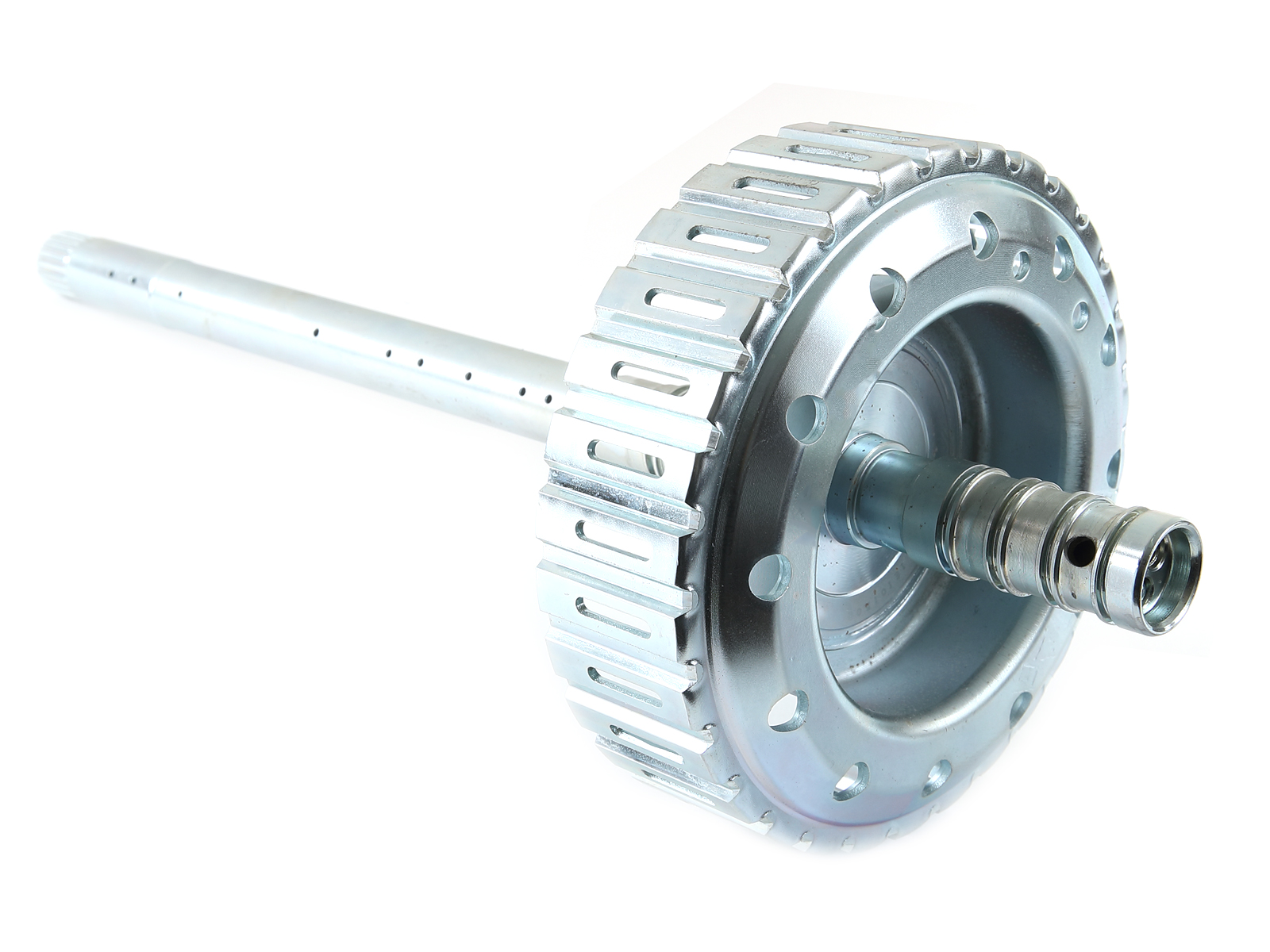

Powertrain components of Automatic Transmission, Dual Clutch Transmission, Continuously Variable Transmission, All Wheel Drive

• Implement highly reliable feasibility
• Study from the early sourcing phases based on the accumulated experience and data
• Propose optimized process per product characteristics (Roller-die Forming · Roll Forming ·
  Flow Forming · Cold Forming · Helical Broaching)
• Reliable development capability proven by multiple project experience with global OEMs
  (26 Project, 153 Powertrain Components)

Production Capacity: 41 million units/year
