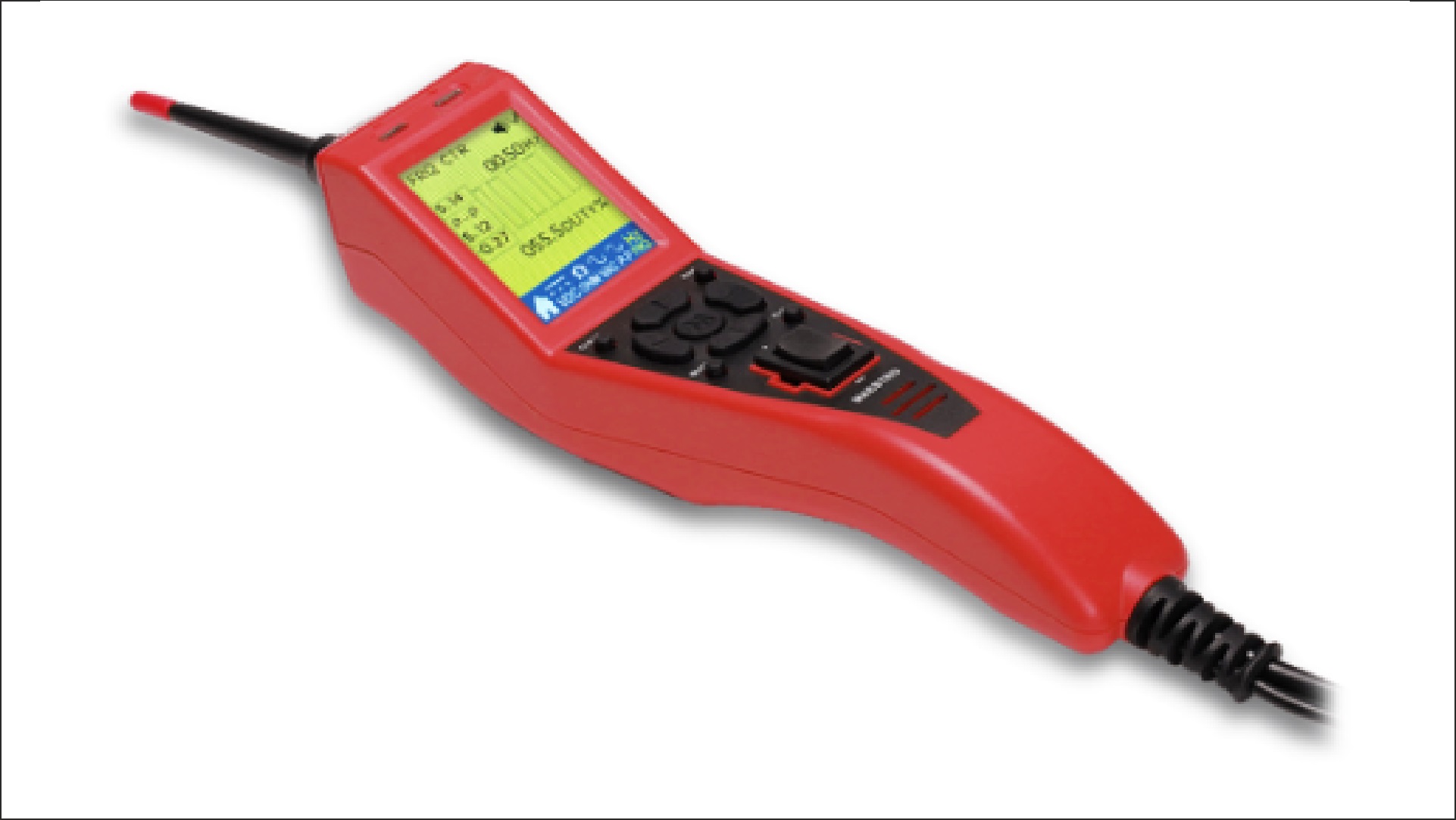

This is the first of our Pro Series line of tools made forProfessionals. With powerful multimeter functions, advanced diagnostic modes, easy to read color LCD display, and a new rugged dust and water resistant housing. The Pro Series Maestro™ is designed to give you years of trouble free testing. Also, an updateable and useful app that will expand your tools capabilites and give you access to answers and solutions that you need.

 The unique configuration of Power Probe testers gives them many advantages over using conventional test lights or multimeters for circuit testing.

Features

- Trace mode offers scope-like functionality

-DC voltmeter with the capability of applying battery

-supplied voltage or ground

-AC voltmeter: TRMS, peak-to-peak/min/max, frequency, duty cycle

-Operates on 12V or 24V systems

Specifications:

Min Operating Voltage

9 VDC

Max Operating Voltage

30 VDC

Max Tip Voltage

450 Volts

Probe Tip Resistance to Ground

350K Ohms

Computer Safe

0.1mA floating tip

Voltage Measurement

-100 to 200 VDC / VAC

Voltage Resolution

-99.99 to 99.9 V – 0.01V(10mV)

Glitch Capture

>380µS Min Pulse Width

Power Feed Test

< 30 mA

Resistance Measurement

0.01 Ohms to 10K Ohms

Frequency Measurement

1Hz to 9999Hz

Fuel Injector Mode

LED Flash @ Min 35V @ 100µS Pulse

Red LED Response

Within 0.5V BATT V in Voltmeter Mode and >10 Ohms in Power TFeed est Mode

Green LED Response

< 10 Ohms in both Power Feed Test Mode and Voltmeter Mode and <.5V in Voltmeter Mode

Circuit Breaker

8 Amp Thermal – Auto Reset

Breaker Trip Response

8 Amps = No Trip | 10 Amps = 20 min.

15 Amps = 6 sec. | 25 Amps = 2 sec.

Short Circuit = 0.3 sec.

Operating Temperature

-20°C (-4°F) to 50°C (122°F)

Storage Temperature

-40°C (-40°F) to 65°C (149°F)

Storage Humidity

5% to 95% RH with 33C max dew point.

(Non-condensing)

Operating

10% - 80% RH with 29C max dew point

(Non-condensing)

Altitude Operating

3048M Max

Altitude Storage

12000M Max

Indoor/Outdoor Usage

IP54 dust and water resistant

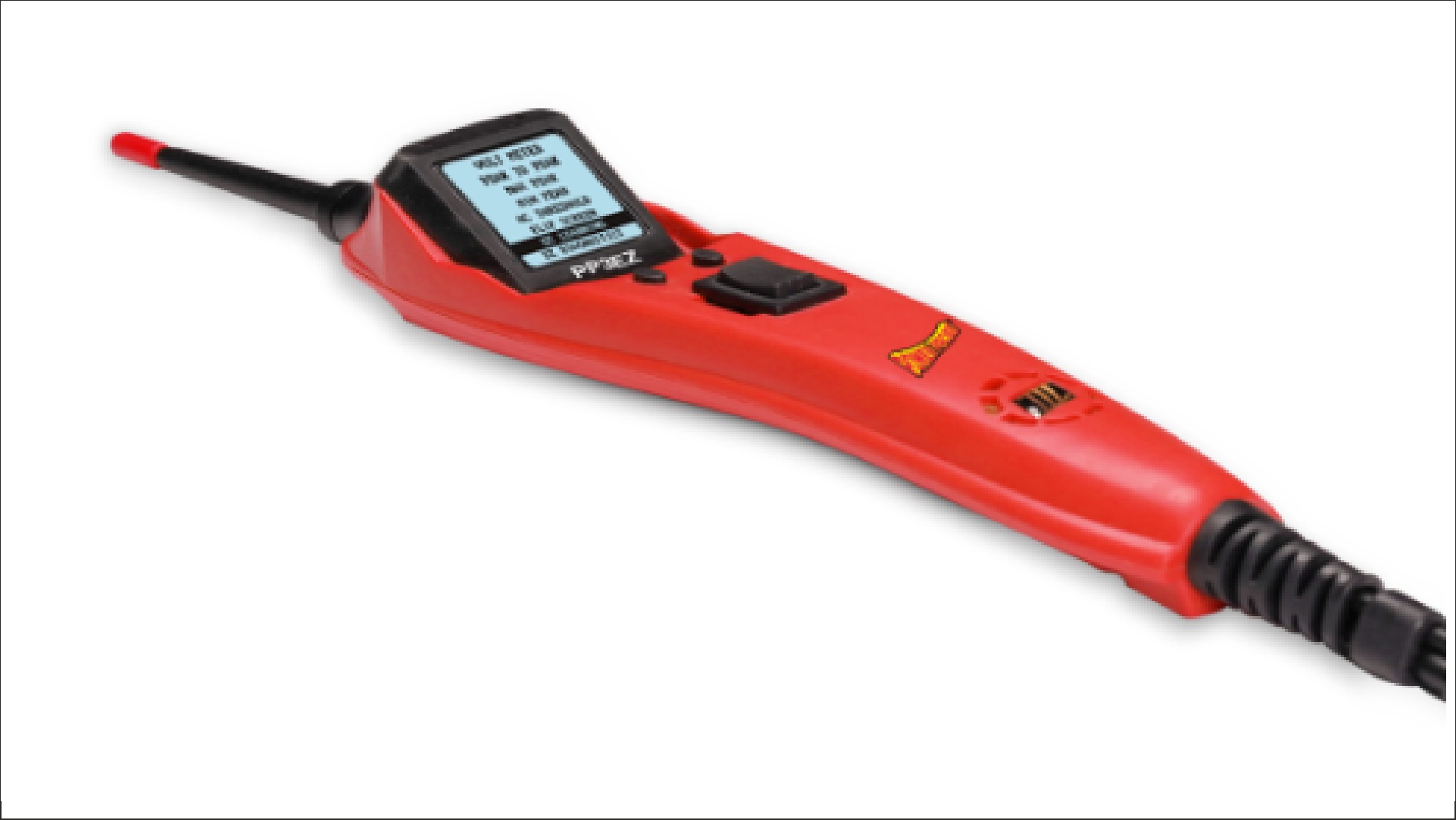

The PP3EZ includes all the powerful testing modes and features of the Power Probe 3S plus now includes 2 new modes - EZ Learning Mode and EZ Diagnostics Mode. The PP3EZ speeds you through the diagnosing of 12 to 24 volt automotive electrical systems. After connecting the PP3EZ’s clips to the vehicle’s battery, the automotive technician can determine at a glance, the voltage level and the polarity of a circuit without running for a voltmeter or reconnecting hook-up clips from one battery pole to the other. The power switch allows the automotive technician to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components without wasting time with jumper leads.

Features:

- Apply power or ground

- Test motors, blowers, lights, wires, fuses for operation

- Test for good/bad grounds

- Test continuity

- 5V reference with 5V adapter

Specifications:

Storage temperature / humidity

-20 to 700C, 70% RH max

Operating temperature / humidity

-10 to 500C, 70% RH max

Pollution degree

2

DC Voltage

0 to +70 Volts +1 digit

P-P Voltage

0 to +70 Volts

Frequency Response

10Hz to 10kHz (for tone pass through)

P-P display

15Hz Square Wave / 35Hz Sine Wave

DC Voltmeter Mode - Continuity to ground

- First Level - display is enabled less than 20K Ω

- Second Level green LED is enabled less than approx. 650 Ω

- + Peak Detector Response

- Single event capture less than 200mS pulse width

- Repetitive events less than 1mS pulse width

- Peak to Peak Mode ....... 0 to +70 Volts + 1 digit

- 4Hz to over 500kHz Square Wave input

- 4Hz to over 250kHz Sine Wave input

Over Volt Warning

If the probe tip connects to a voltage greater than +70 Volts the display will show an “Over Volt” warning.

Remove the probe tip immediately to prevent internal damage to the tool.

Over Load Warning

If the probe is connected to a battery with voltage greater than 34VDC the display will show an “Over Load” warning.

Circuit Breaker

8 amp thermal response – Manual reset

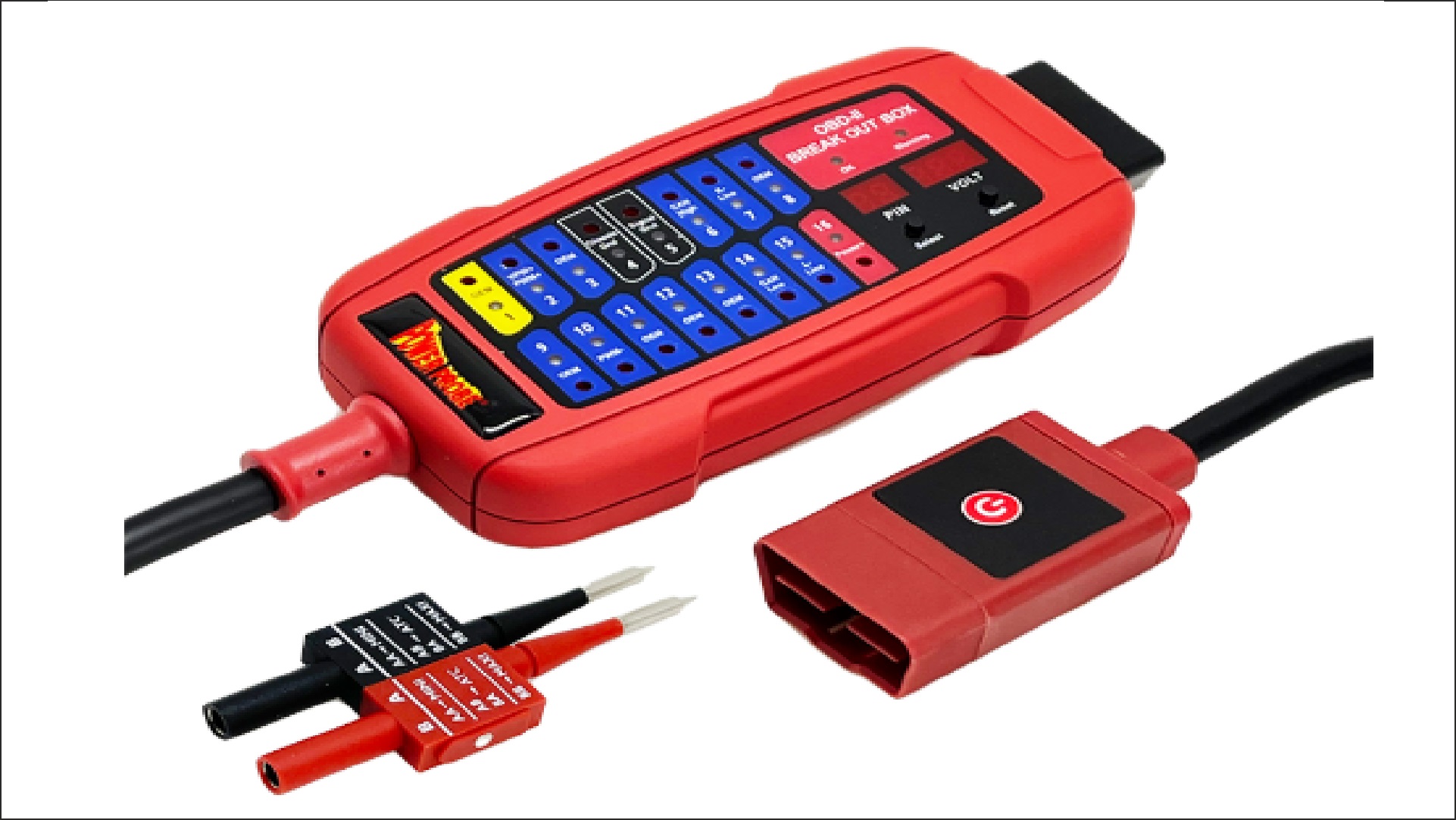

The Power Probe OBD-II Breakout Box is a CAN Bus circuit tester compatible with 12 and 24 Volt systems. The tool connects directly into the Vehicle’s Data Link Connector (DLC) testing for any abnormalities such as shorting and reverse polarity at the pins. If shorting or reverse polarity is present, connecting the PPECB first will prevent harm before connecting a Diagnostic Scan Tool. The Breakout Box provides a live display of present communicating signals without having to use a Digital Multimeter. Additionally, you can quickly test the voltages at all 16 pins.

Features

- Test DLC (OBD port) for any abnormalities, such as shorting and reverse polarity at the pins before connecting other diagnostic equipment to DLC.

- Provides a live display of communicating signals (eg. communication protocol signals) on assigned pins for quick pointing of faults without having to bring out a measurement tool (digital volt ohmmeter)

- Quickly access all 16 pin connections during repair and diagnosis of the vehicle

- Monitor the input voltage of the OBD during module programming with the low voltage alarm

- 2 pin adapter included

Specifications

Operating range

7.0 - 30.0VDC Input.

Maximum load

Up to 3.0 Amps Output.

Overload protection

Yes, PTC Fuse (Self-healing)

Volt displays

3 Digits LEDs (Resolution: 0.1V)

Banana sockets

16 outputs x 1.0mm diameter with LED lamp indications

Protocols detected

PWM (J1850), VPW (J1850), ISO 9141-2,

DIS/ISO 14230-4, CAN bus (J-2284)

Operating temperature

32°F - 122°F(0°C - 50°C)

Permitted humidity

Less than 70%

OBD cable length

30 inches (0.8 meter)

Reverse polarity protection

Yes, LED on pin 4 & 5 turns red

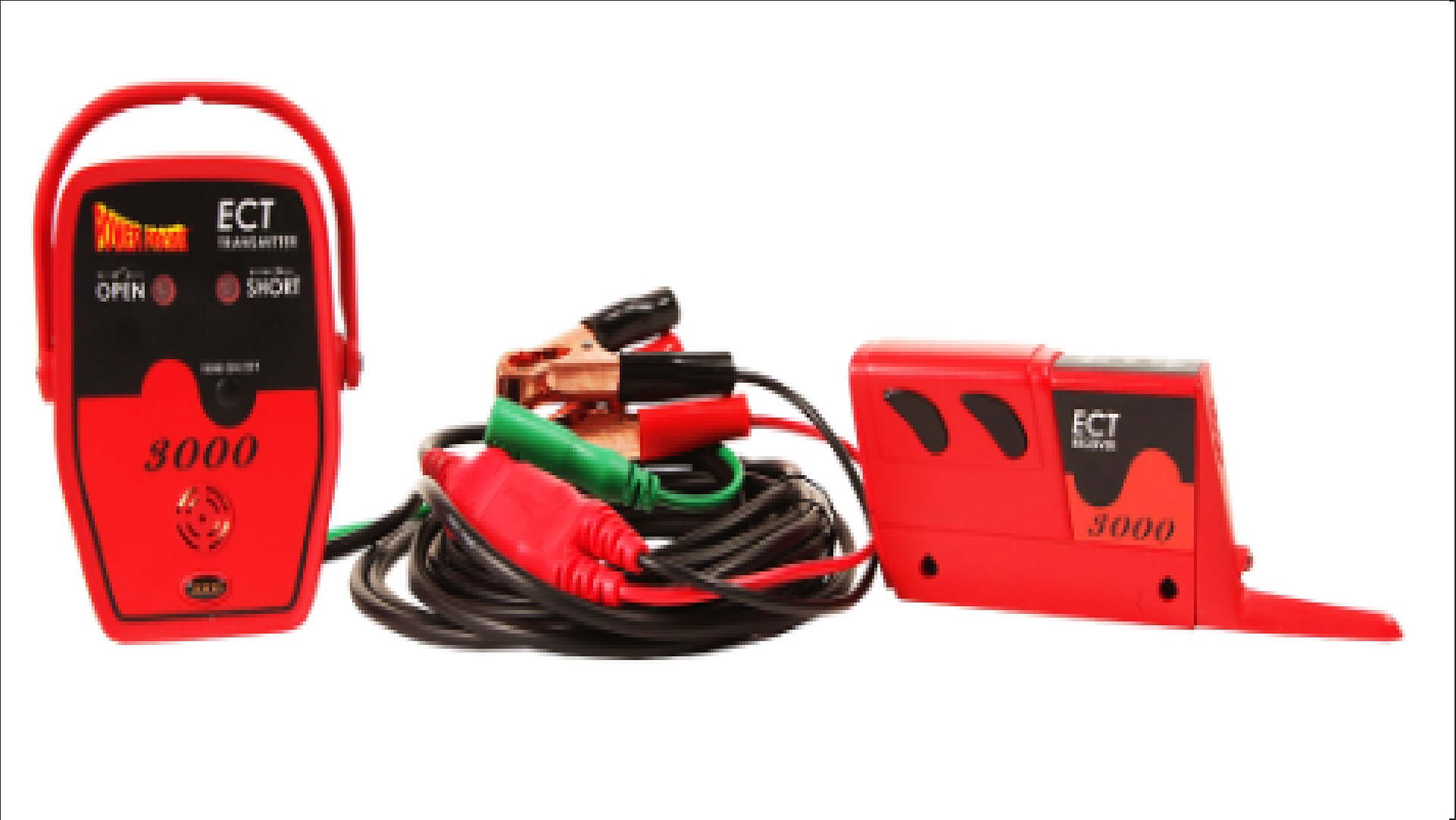

We designed the ECT3000 as a quick solution to your automotive circuit problems. The ECT3000 consists of 2 main components. An Intelligent transmitter and a Intelligent receiver along with a set of connection adapters that will help you :

• Locate short circuits without unnecessarily removing plastic panels, molding, and carpet.

• Trace wires to see where they lead

• Find open circuits, switches or breaks in wires

• Trace and locate the cause of a severe battery drain

• Test and find intermittent conditions

• Check continuity with the assistance of the Power Probe III, IV, or Hook

These features are extremely handy for the professional technician. An appropriate schematic or wiring diagram is always useful and many times necessary when tracing circuits. The better you understand your circuit, the better the ECT3000 can assist you.

Features

Locate short circuits without removing plastic panels,molding, and carpet Find short to ground circuits, switches, or breaks in wires Test and find intermittent conditions Sensitivity adjustment from 1-8 in (3-20 cm) Trace short to ground wires with visual navigation & sound indicators Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers.

Specifications Transmitter

Min Operating Voltage

6 VDC

Max Operating Voltage

48 VDC

Working Current

<200mA

Working Frequency

4KHz

Max Operating Temp

50°C

Max Storage Temp

70°C

Max Operating Relative humidity

80% (Non-condensation)

Max Storage Relative humidity

80% (Non-condensation)

Altitude

<2000m

Specifications Receiver

Power Supply

2 X 1.5V AAA

Working Current

When not signal be detected <15mA

Power Consumption When Power Off

<10uA

Max Operating Temp

50°C

Max Storage Temp

70°C

Max Operating Relative humidity

80% (Non-condensation)

Max Storage Relative humidity

80% (Non-condensation)

Altitude

<2000m

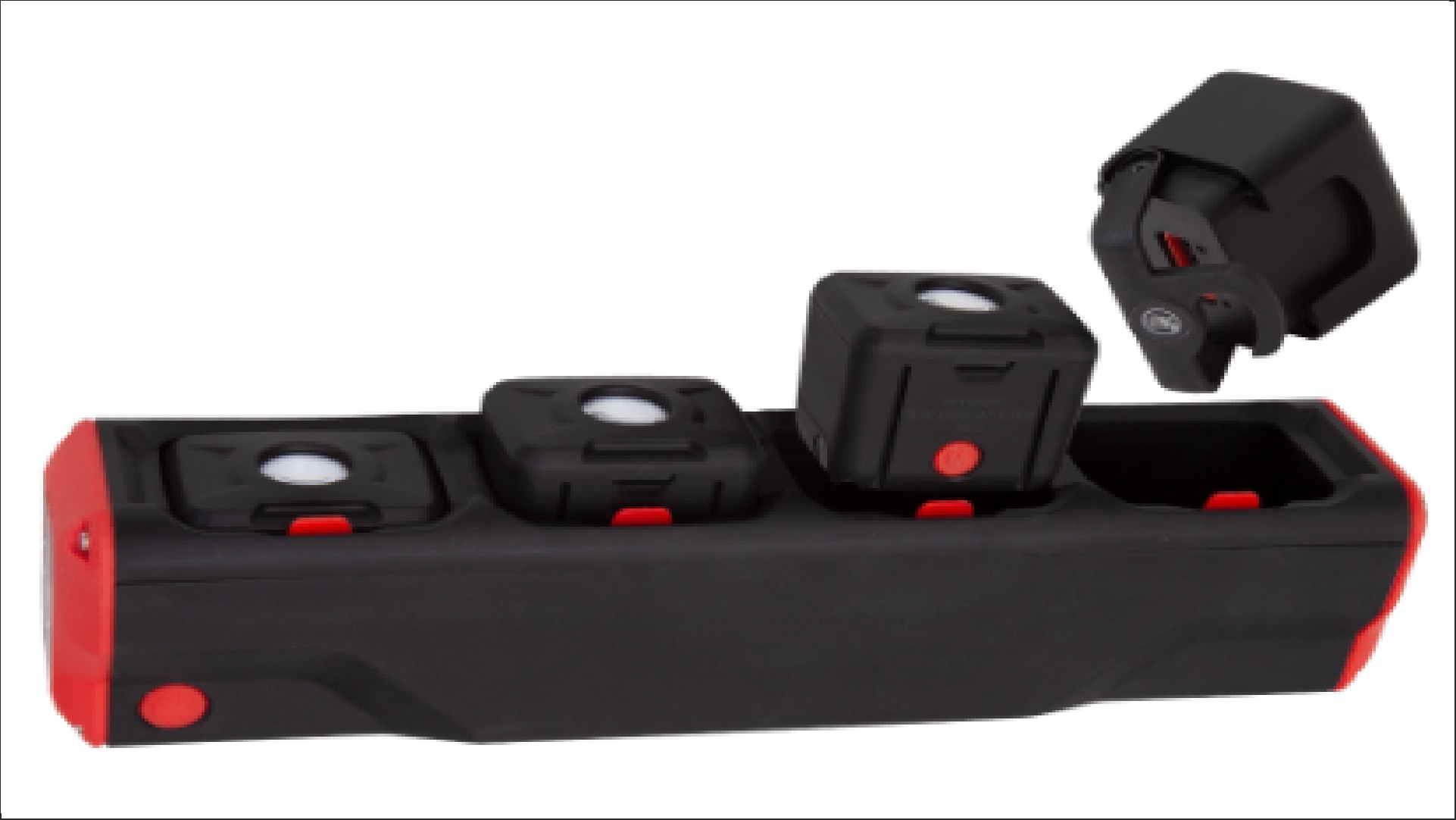

The Pro Series Modular Work Light is extremely versatile and can be used as an under-hood light, an Area Spot light or four individual work lights,The light can be mounted in multiple orientations for hands-free use by utilizing the magnets on the side or back of the housing, the threaded hole for mounting to a tripod, the magnets on each individual module or the hooks on each module. The PPMWL1000 has a US plug type.

Light Features

4 Romovable Modules

2 Magnets

Power Button

1/4" Threaded Hole For Mounting

2 Magnets on thebackside of the light

IP54 Dust and water resistant housing

COB LED 1,000 Lumens Total  (250 x 4)

Moduel Features

Charging Status indicator in eachModule

COB LED 250 Lumens each module

IP65 Dust and water resistant modules

Magent and Hook on each Module

Individual Power Button on each module

Module Lumens (High, Low)

250, 125

Total Light Lumens

1000

Lux @ 1m (High, Low)

410, 205

Beam Distance (High, Low)

40m, 29m

CRI

> 80

Constant Current

Yes

Runtime (High, Low)

3h, 6h

Battery

3.7V 1800mAh x 4

Charger

100-240V, 5V3A

Charging Time

3-4 h

Magnets

Yes

Hook

Yes

Threaded Hole

1/4”-20

CSA Certified

Yes

DOE / CEC6

Yes

Dust & Water Resistance

Base Unit IP54 / Modules IP65

CE Certified

Yes

EMC

Yes

LVD

Yes

ROHS

Yes

Battery IEC

Yes

REACH

Yes

WEEE

Yes

IEC 6247 & 62778

Yes

Weight

2.7 lbs (1.2 kg)

Dimensions

14 x 3.3 x 3”
