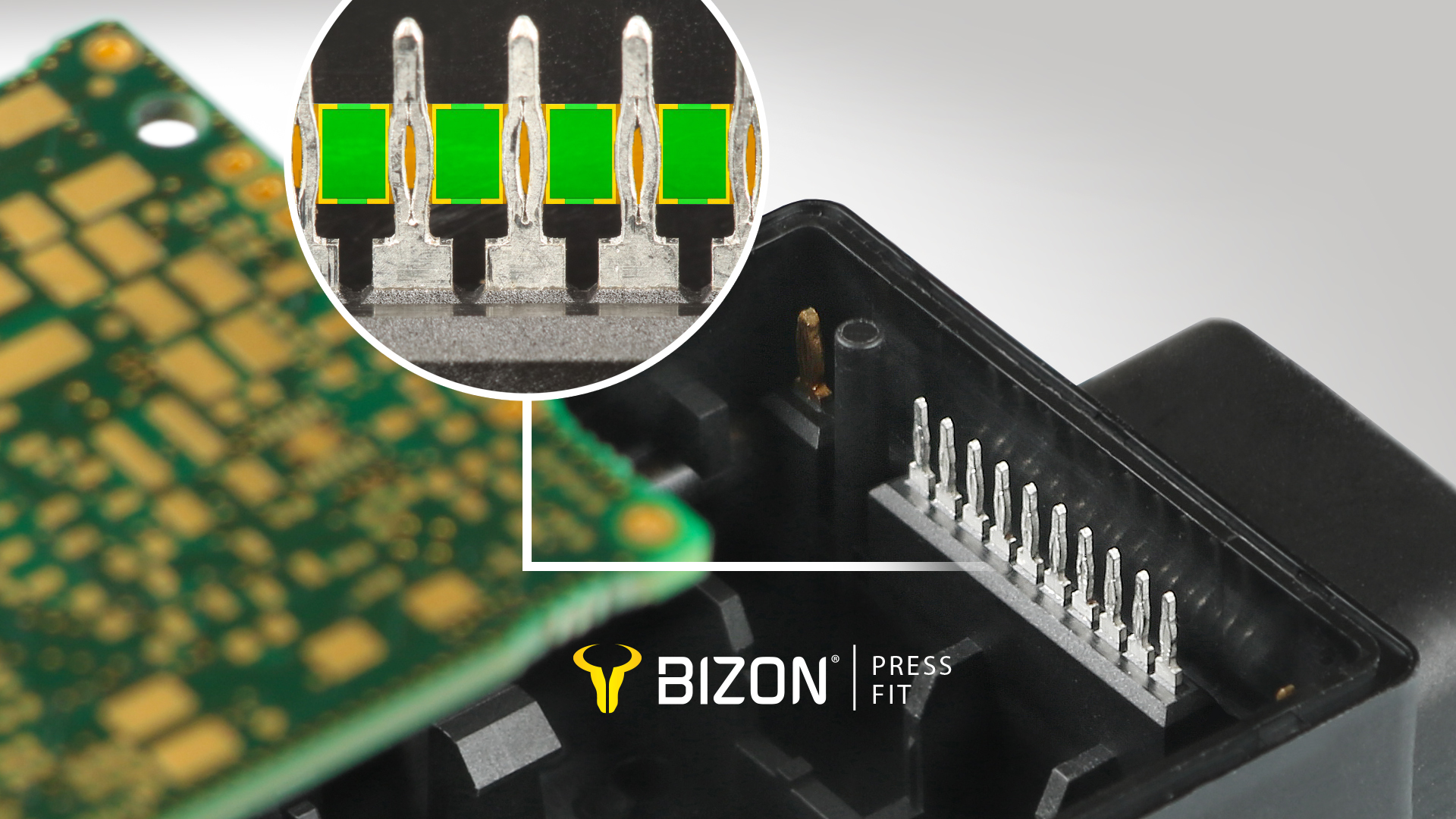

BIZON® Press-fit
BIZON® – CONTACT: ONE PRINCIPLE FOR ALL SIZES
Construction-related freedom, free material selection, adaptable.
ALACsystems offers an innovative solder-free connection technology with BIZON® press-fit for the requirements of the automotive supply industry and industrial electronics. The press-fit techniques are a solder-free electromechanical connecting method, with which elastic workable or solid pins are pressed into metal coated circuit board holes with the aid of a pressing tool. At the points of contact between the pressing area of the pins and to the metal coated hole in the wall, a permanent gas-tight connection is therefore formed.
The important characteristic here is that the diagonal of the pin cross-section is greater than the diameter of the copper sleeve in the circuit board. The BIZON® Contact, as an elastic contact, offers the greatest possible cross-section in a circuit board hole with overriding contact characteristics. As a result, it is possible to handle several hundred ampere ranges with standard circuit boards. This has an important price advantage, particularly in the case of motor vehicle applications. The contact can be produced in every size and sheet-metal thickness, with free material selection. A unique feature is that, with the same production enginee-ring, both a non-detachable press contact and a detachable plug contact can be manufactured.
OUR AUTOMOTIVE PRODUCTS for demanding applications:
- Stamped contacts – overmolded or pressed in separately
- Male Multipoint blade connectors with circuit board plug connectors equipped with different pins – straight, bent, sealed
- Circuit board plug connector with different separations and different pole numbers
- Overmolded housing/hybrid component parts which offer special protection against e.g. liquids or gases
- Pin header: Pin contacts connected with a simple pin insulator
- High-current busbars for the power feed into the circuit board
