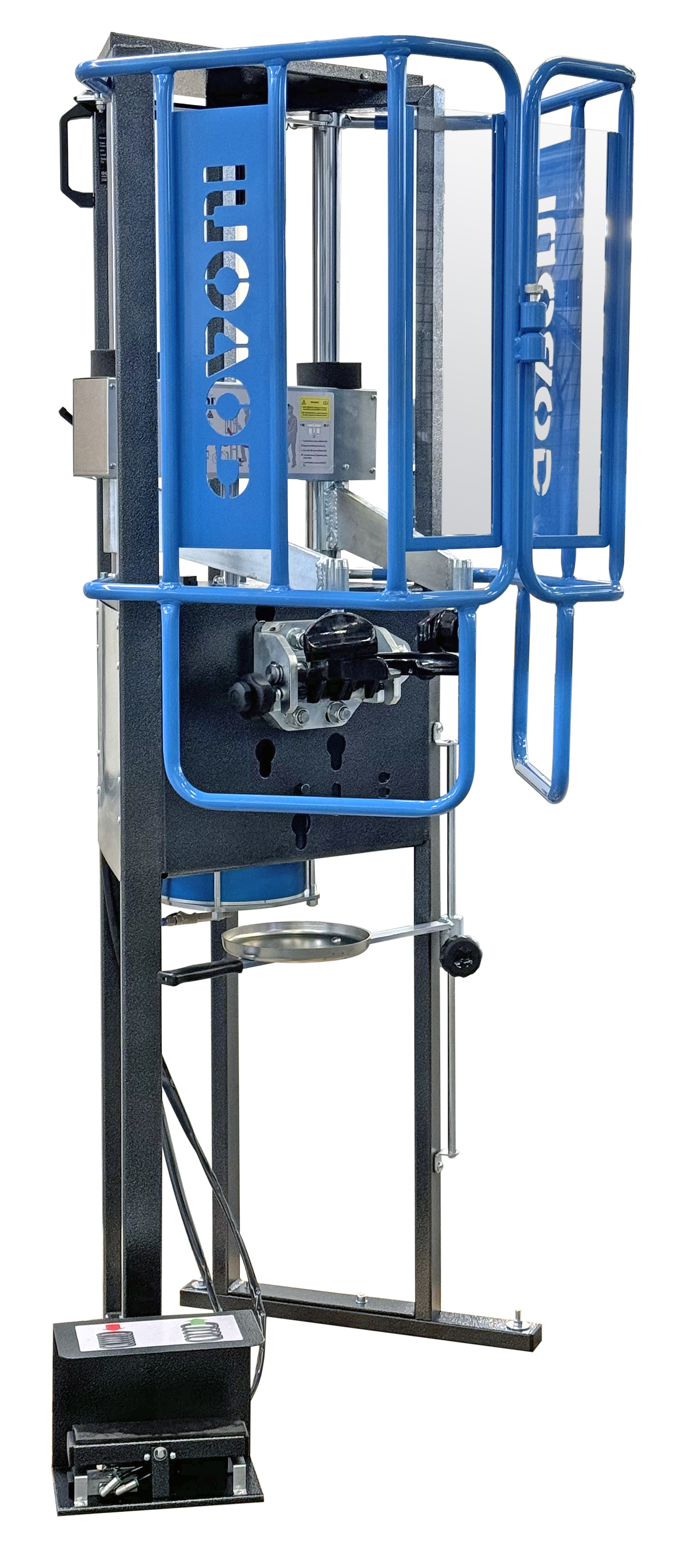

GO330PRO PNEUMATIC COIL SPRING COMPRESSOR WORKSTATION

Pneumatic spring compressor from passenger cars to transporters.

Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber
drop guard and pedestal to ensure maximum safety for the user.

These floating clamps allow a better grip on the spring, dynamically adapting during the different
compression phases. Two clamping jaw mounts on the basic unit permit a maximum opening width
of up to 350 mm. Particularly important for many current models with extra-long vehicle springs.

Mirror for viewing from above makes the piston rod easier to position during installation.

Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material.

Possibility of double positioning of the bracket to have more space and stroke for spring compression.

The practical absorber drop guard keeps the absorber in position during installation.

The handles above the unit and the wheels make the unit easy to manoeuvre.

Standard equipment:

Basic unit, 3.000 Kg/30.000 N

Adjustable universal bracket

Mirror with swan neck, magnetic

Transport module with 2 steel wheels

Technical data:

CE approval for the unit documents the unit's conformity with 2006/42/

EC (machinery directive

Working pressure max. 8 bar

Cylinder stroke 330 mm

GO 405

Injector Extractor kit - Master

Specific for disassembling very stuck injectors.

Due to fouling caused by combustion the injector is locked and can not be removed without a proper tool.

The universal supporting feet adjustment, on the fixing screws of the head, ensures its use in different levels (l/r) as well as the possibility to adjust the slippage of the two side bars.

Upgrade option for hydraulic pump and hydraulic cylinder (or mechadraulic).

Application

Connected injectors available for Mercedes Benz, Opel, FCA Group (e.g. 1.3 Mj), Suzuki.

M17x1 for Bosch, M14x1 for Delphi models, Toyota with adapter M16x1, M20x1 used for the extraction of Denso injectors and finally M25x1 and M27x1 for Siemens.

GO 475

FORD/PSA/volvo - glow plug removal and reamer set - master M8x1 and M10x1

Suitable for M8x1 and M10x1 glow plugs installed on FORD, PSA Group and Volvo diesel engines.

The tool set consists of 3 modules:

Module 1 (23 pcs.): this module is used to remove the glow plug when it is damaged near the hexagon and cannot be unscrewed in order to remove it.

Module 2 (14 pcs.): this module is used to remove the glow plug TIP when it is stuck at the bottom of the glow plug seat.
Our tools prevent any type of damage to the glow plug seat inside the head.

Module 3 (8 pcs.): this module is used to clean the glow plug seat inside the head. It is necessary to restore the glow plug seat before installing the new glow plug.

As an alternative to the complete set, all set components can also be selected in the form of 3 modules.

All set components, including wearing parts, are deliverable separately.

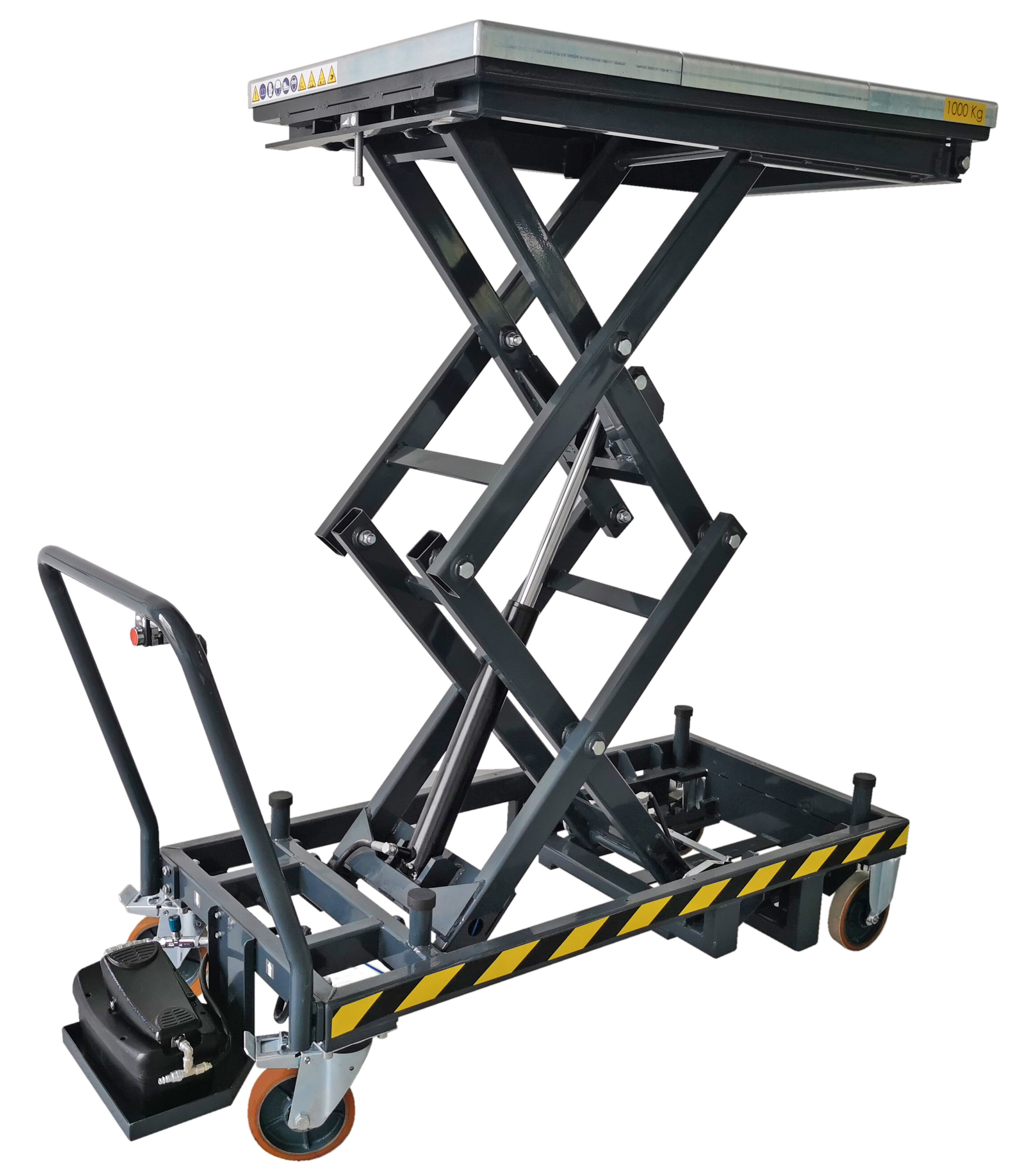

GO 1500T

Universal lifting table with a load capacity of 1.5 T.

Aside from lifting electric-car batteries, this product is also perfect for: lifting and moving engines, automatic gearboxes, chassis components

It is powered by compressed air.

It allows convenient battery installation or removal, thanks to the sliding cover that can be opened.

Its high ground clearance makes it compatible with all workshop cranes on the market.

It is easy to operate and tilt with selfexplanatory operations.

The top table is extendable and tiltable by means of a mechanical screw, it also has holes with M12 thread, on which all types of supports or accessories can be mounted: special hooks, special brackets, plastic caps, protective mats for battery packs.

• Suitable for all types of batterie weighing up to 1500 kg and other automotive components
• The table only lowers when the operator presses the button.
• The rack safety system is also useful for any maintenance.
• When the table is not being operated, it locks automatically by means of a mechanical anti-lowering safety wedge.

OPENING TABLE-

EXTENDABLE TABLE (200mm)

TILTING TABLE (±3°)

SHIFTING TABLE (±30mm)

EXTENDABLE HANDLE (225mm)

FORK HOUSING OK

MAX CAPACITY 1500 KG

TIME TO GO UP 80 s (no load) / 150 s (full load)

TIME TO GO DOWN 70 s (no load) / 15 s (full load)

POWER SUPPLY 6/8 bar

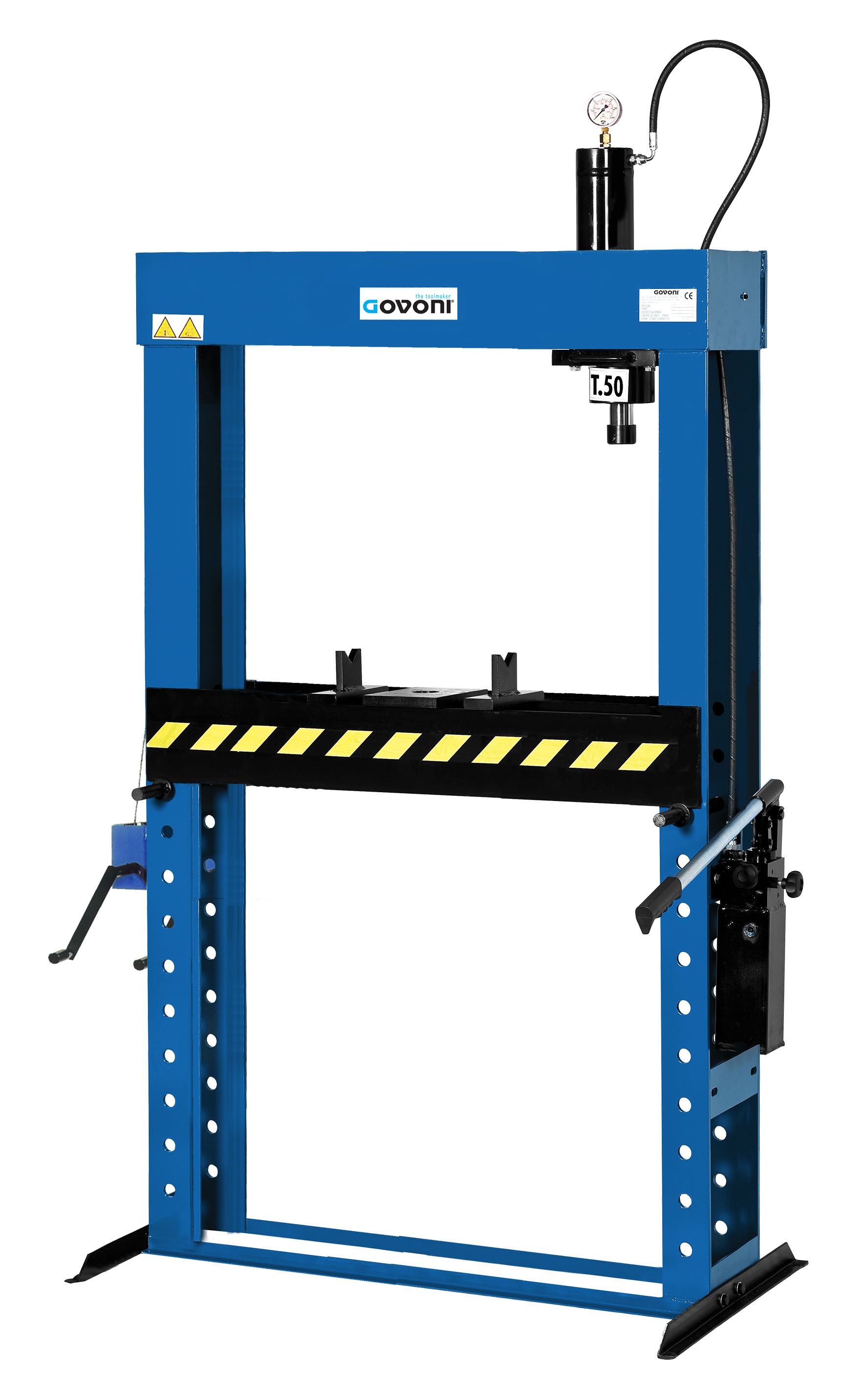

GO 1412

50 ton manual hydraulic press with combined elements that can be immediately disassembled to facilitate transport and limit overall dimensions.

Complete with pressure gauge, "V" prisms and perforated plate, and work bench.

Equipped with two-speed hydraulic pump and piston with automatic return and winch for moving the worktop and the "AIR OIL" drainage system.

Mainly designed for the extraction of worn car bearings, it can be used for any type of pressure work.
