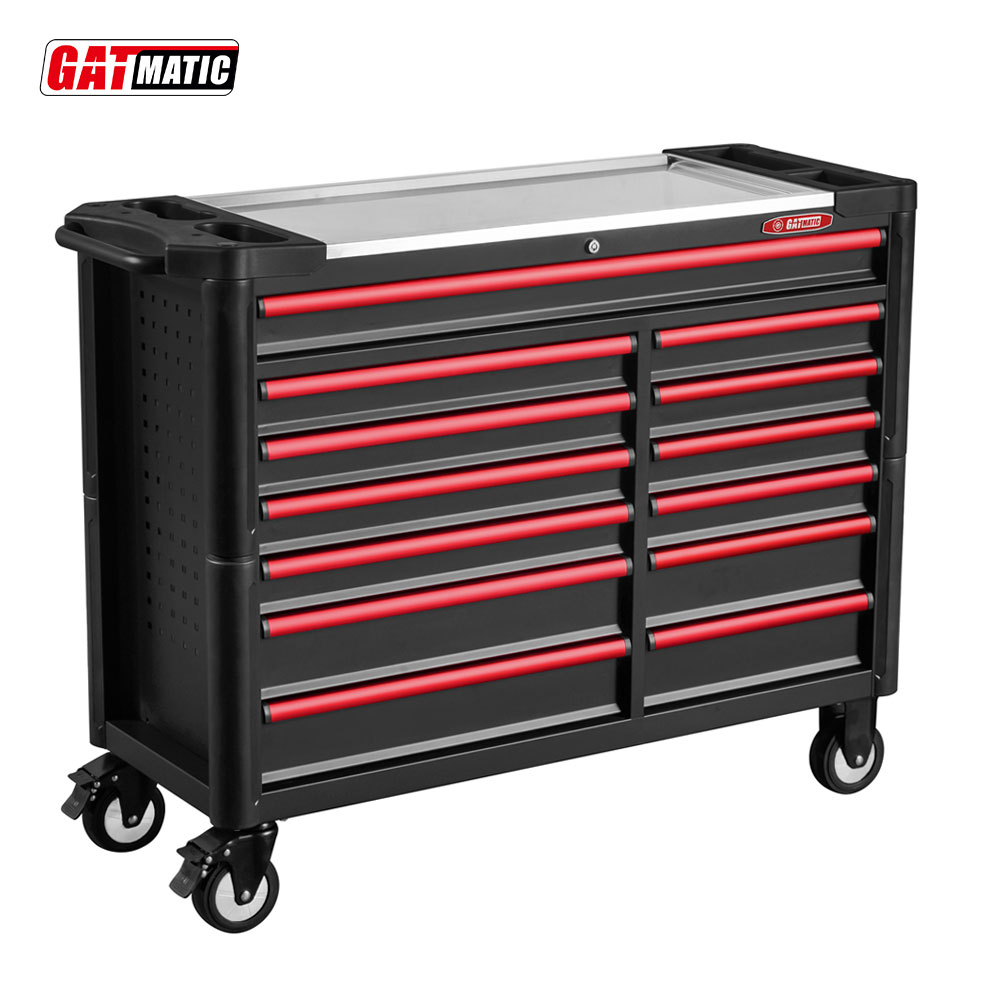

Built for its functional workspace and large storage capacity, the GEC904 rolling tool cart is the perfect combination for your tool storage system. This mobile tool trolley has heavy-duty casters (diameter 125mm) and a side handle, which allow you to easily move it, even when fully loaded. The whole tool cabinet can bear up to 600kg. The top wide drawer, 8 small drawers, and 4 deep bottom drawers meet a variety of storage requirements. The steel sheet is sealed with a powder coating to protect it.

Specification

Drawer Size 5（2pcs）

380*400*120mm

Body Thickness

1.0mm/1.2mm

Product Size

1283*467*811mm

Drawer Thickness

1.0mm/1.2mm

Package Size

1340*530*1030mm

Drawer Size 1(1pc)

1068*400*80mm

Qty for 20'' Container

30 Sets

Drawer Size 2(4pcs)

570*400*80mm

Qty for 40'' Container

60 Sets

Drawer Size 3(2pcs)

570*400*80mm

Weight

116.4KG

Drawer Size 4(4pc)

380*400*80mm

Max Bearing Weight

600 KG

Features:

• Stainless steel worktop, high-end
• Manufactured from strong steel sheet for long lasting reliability
• Deep drawer design for storing various tools
• Interlock system and self-printing slides with full extension ball bearing slides for smooth and easy drawer operation
• Heavy duty castors for improving flexibility
• High quality and sturdy side handle for convenience
• The side hole board can be hung with hooks

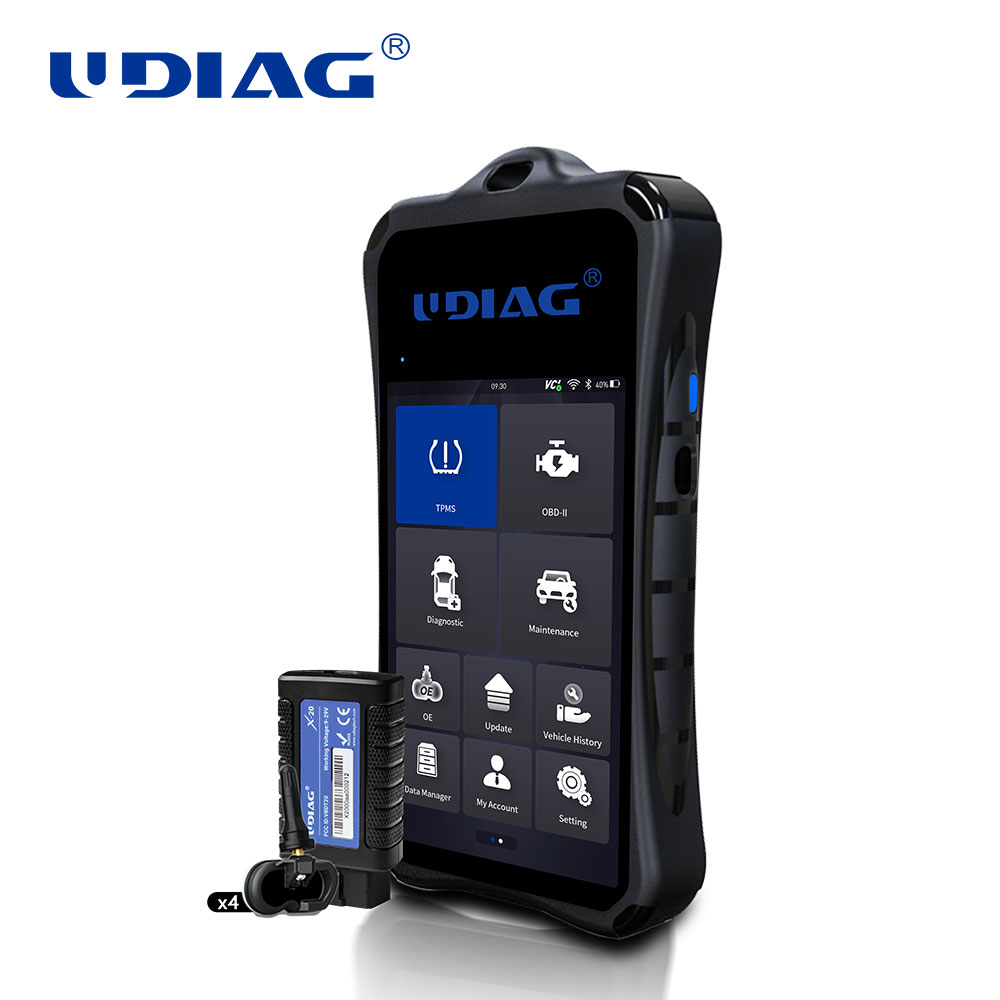

X-20 is the new generation of TPMS servicing and diagnostic scan tool. It supports wireless diagnostics on all available car system modules, to read and clear codes, view freeze frame, check live data and ECU information, etc. It is also a professional TPMS servicing tool,which can activate and decode universal TPMS sensors, program UDIAGTPMS sensors and diagnose the original car tire pressure monitoring system.

X-20 integrates the most useful 10 service functions: ABS Bleeding, BRT, TPS, DPF, EPB, Injector, Oil Reset, SAS, Transmission Adaptation and Change Tire Size. X-20 will bring you a fresh new TPMS servicing experience.

Model Name

X-20

Screen

5.5'' TFT Capacitive LCD screen; 720*1280 pixel

Operation System

Android 9.0

Processor

Quad-core, 1.3GHz

Memory

2GB

SSD Hard drive

32GB

Communication interface

Built-in WlFI 802.11 b/g/n Wireless LAN

USB2.0 OTG/standard USB 2.0 HOST

Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy(LE)(10-20 m)

Built-in Battery

5000mAh, Lithium-polymer battery, chargeable via 5V USB power supply

Working Temperature

-10 to 70℃

Storage Temperature

-20 to 80℃

Operating Humidity

5%-95% Non-Condensing

Dimensions

195*100*25mm(L*W*H)

Weight

0.87kg (Main unit)

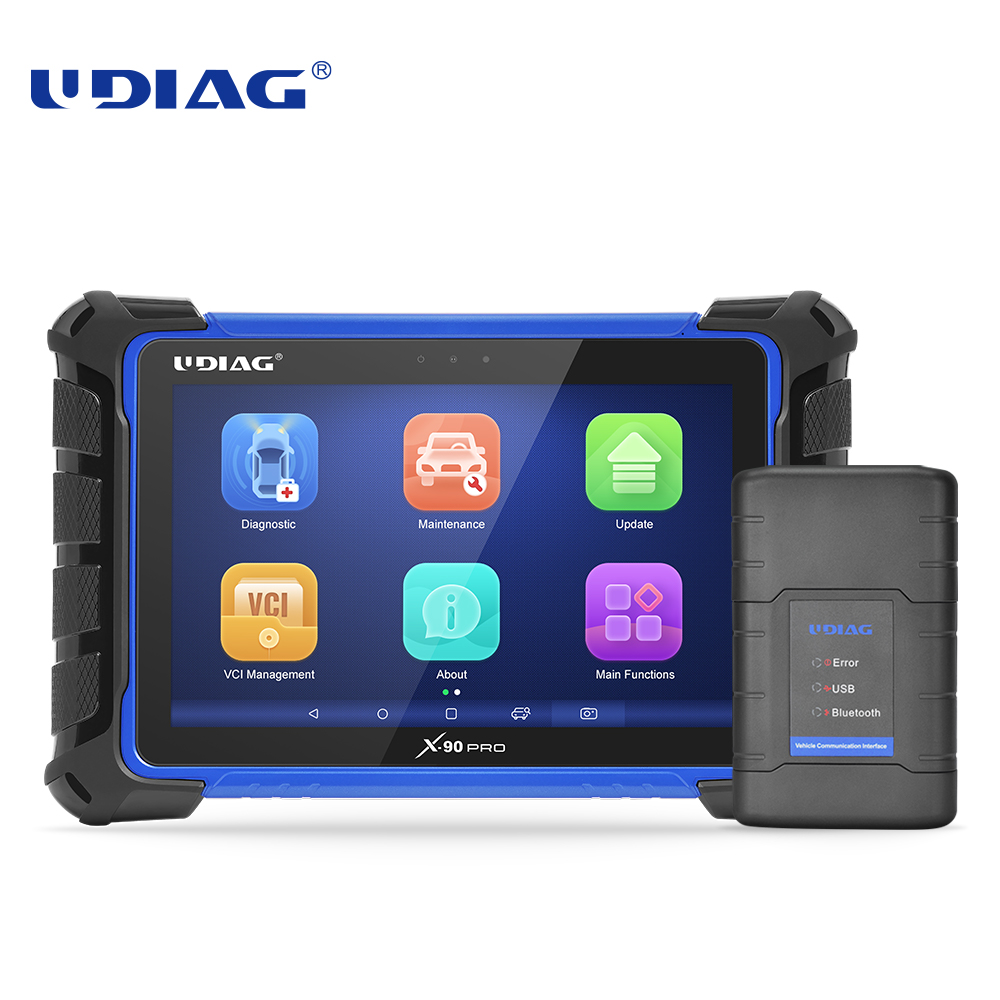

X-90 PRO is advanced OE level diagnosis system which is Android system and featured with 10.1” HD Touch screen. X-90 PRO works on 100+ car makes, advanced graphing, bi-directional component tests, module coding and programming. With an unusual combination of sophistication and simple operation, X-90 PRO efficiently provides comprehensive vehicle diagnostics and analysis suited to any auto workshops.

Features

• X-90 PRO performs advanced vehicle diagnostics and analysis, such as retrieve ECU information, live data, active test, adaptation, bi-directional, functional test, matching and coding for vehicle systems, etc.
• 1-inch HD touch screen.
• Android operating system for fast boot-up.
• Works on more than 100 American, European and Asian makes from 1996 to 2024.
• Exceptional OE-Level system coverage for all electronic systems.
• Support 40+ required maintenance function, such as AT adaption, adjust fuel, injector coding, odometer, immobilizer, etc.
• View freeze frame data and graph systems live data.
• One-touch full vehicle code scan.
• Print out recorded data with Wi-Fi technology.
• VCI communication with vehicles within up to 70~100 meters.

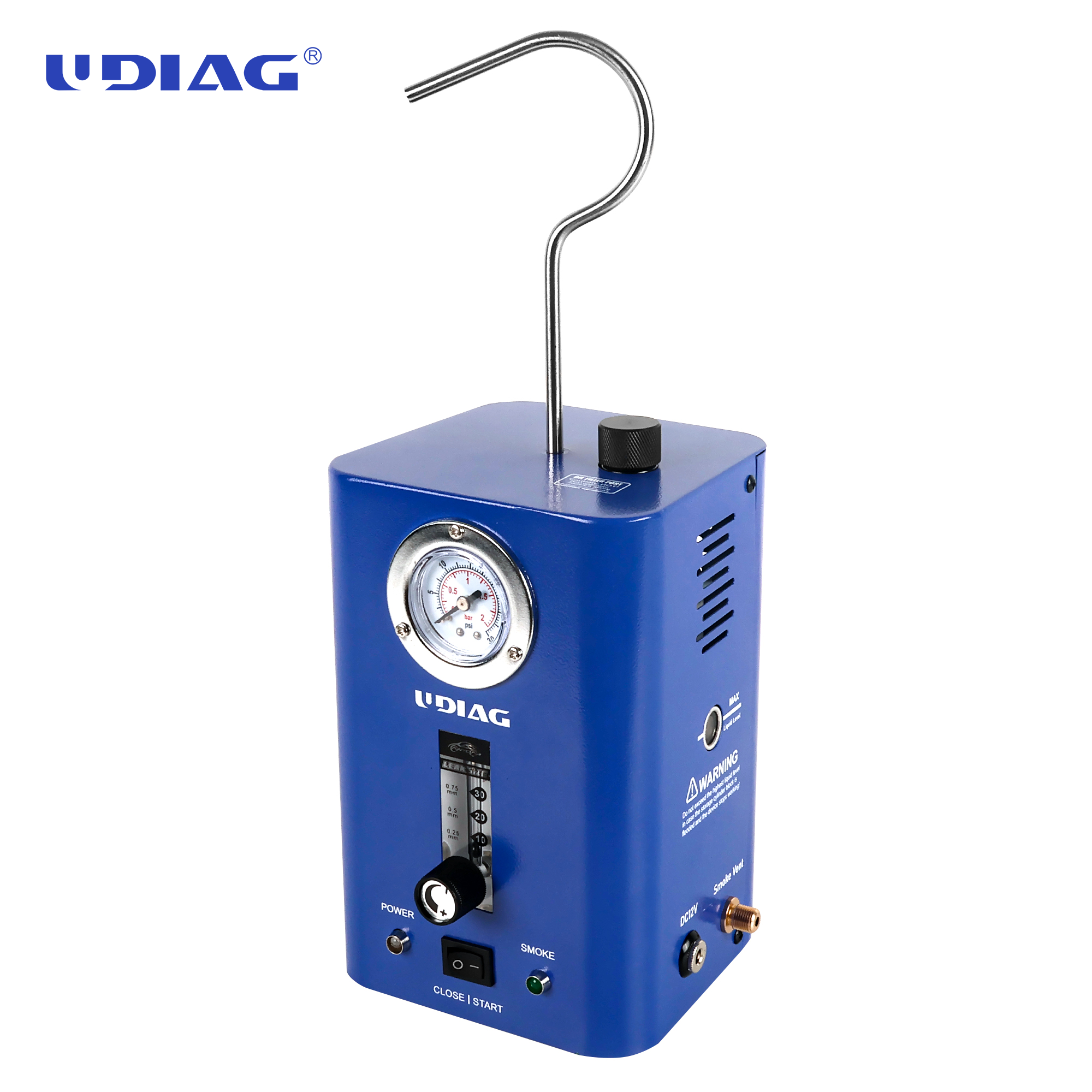

ALT400 Automotive Smoke Leak Tester is designed for the leakage of pipe systems, air intake system and coolant tank, which confirms to SAE standards.

It is a professional tool that can help to find leakage in any pipeline system quickly.

Features

• Intake System Leak Test
• Exhausts System Test
• Fuel System Test
• Coolant Tank Test
• Turbo System or EVAP Test
• Combustion Chamber Test
• Leakage Quantity Test
• Dual Mode (Smoke Mode & Air Mode)
• Built-in mini air compressor for instant smoke generation
• Self-protection system keeps machine away from overload
• Easy operation for quick locating the leakage part
• Suitable for Various Motor Vehicles

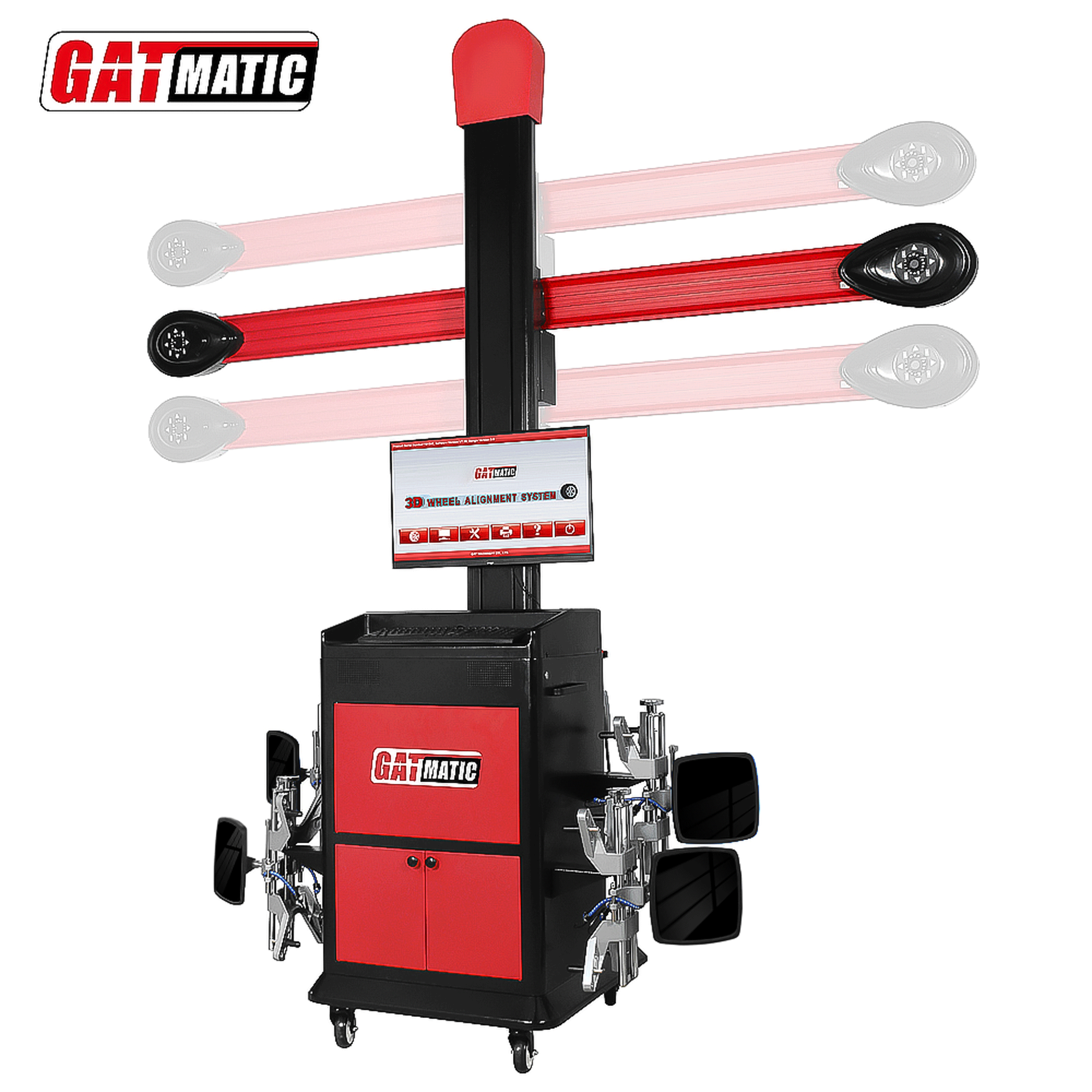

GA-600S is innovative technology of 3D wheel aligner. It can perform wheel aligners on 2 post lifts and small scissor lifts, which is unique in the industry with patents. With the post fixed on a cabinet, it can be removable during the test. The convenience and easy operation can help small garage to save space.

Features:

• Fits all kinds of lifts: Two post lift, Scissor lift and Four post lift.
• Language:English,Spanish,Russian, German,Arabic,Thai.
• Dynamic constitute coordinate, not affected by the inclination of lift.
• No need to wait during rolling or caster swing, save test time.
• Automatically calculate wheel diameter, no need to input manually.
• High precision anti-throwing target, reinforced plastic enclosure.
• A wide range of wheel clamp, with 10"-24" solid & precision clamp.
• With unique quick testing mode, saving time and working efficiently.

Reliable:

• New small target design
• Push rolling-out compensation
• Non-stop at push rolling-out compensation
• 10/20 degree non-stop at casterswing
• Patent target,minimal the sunlight abuse.
• Vehicle position adaption automatically
• Simplicity and painless atinstallation
• Easy installation,not require on-site calibration

Camera beam automatically followslift movement,assure 100% fullheight range measurement
