Description

 Specs:

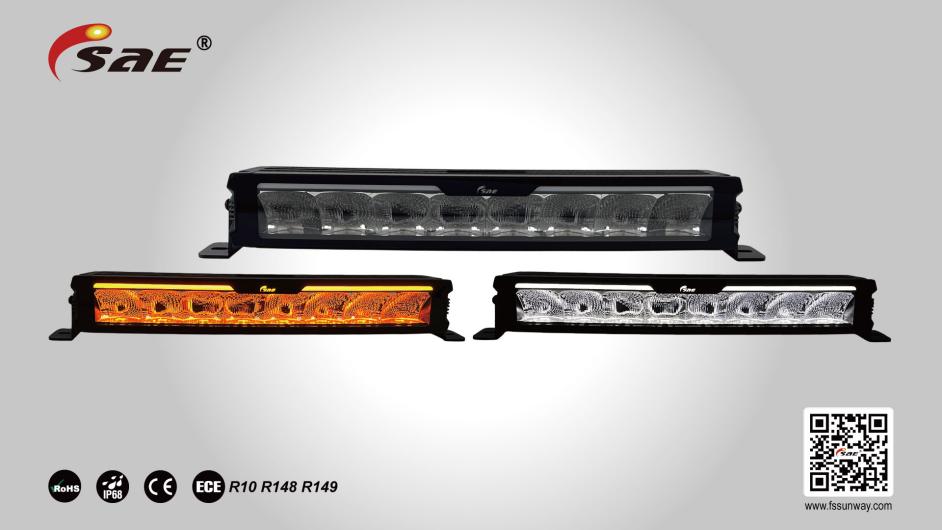

Functions: high beam+dual color position light+dual color park light (patented)

Dimensions: 546*80*86mm (Whole series having 12", 16", 20", 30", 40" and 50" available)

8 x 15W LED

Waterproof: IP68

Raw Lumens: 10400

Beam Distance(1lux@m): 700m

Peak Beam Intensity(CD): 490700

AMP Draw (12V/24V): 9.35A/4.6A

Approvals: R10, R149, R148

Warranty: 2 years

Materials:

Extruded aluminum alloy (AL6063) housing with heat-sink

Efficient polycarbonate(PC) lens refractors

PC lens

Rubber cable

Anodized polyester powdercoat
