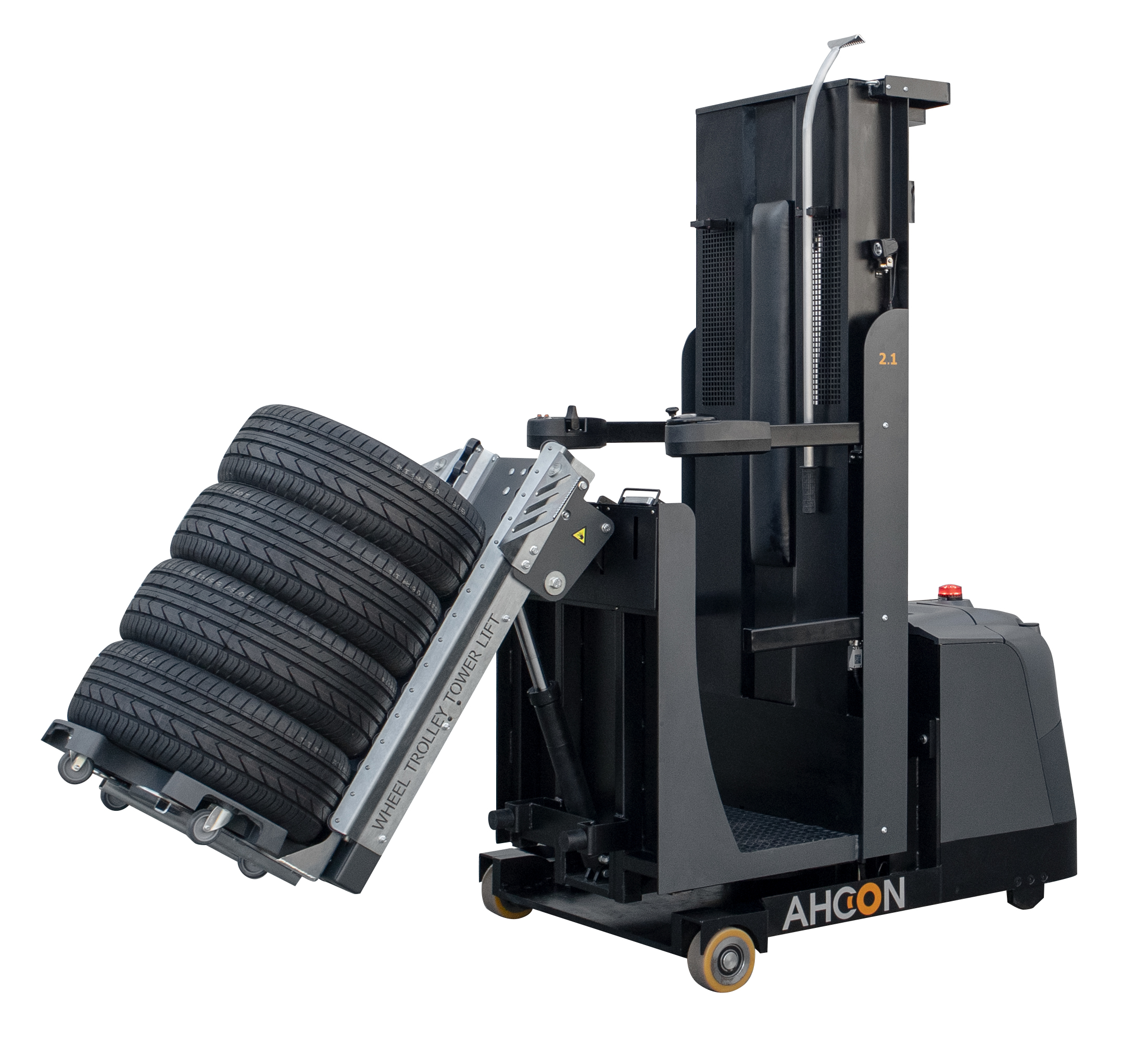

USER-FRIENDLY HANDLING OF WHEELS IN TALL TYRE RACKS
- TYRE STORAGE USING THE WHEEL TROLLEY TOWER LIFT

Wheel Trolley Tower Lift is a compact and space-saving truck for the ergonomically correct handling of wheels in extra-tall tyre racks – at heights of up to 6 metres. Tower Lift has a  customised tool at its front which is compatible with our popular Wheel Trolley.

The actual handling into and out of the tyre racks is carried out by the use of Wheel Trolleys. The job of retrieving and inserting wheels from and into tyre racks can take place at an efficient pace while allowance is still made for ergonomic considerations.

Wheel Trolley Tower Lift is available in two models which lift up to 5.3 and 6.0 metres, respectively.

FEATURES:

• Entry and exit on both sides
• Hydraulic function of front tilting tool
• Equipped with reverse camera and information display
• Three set speeds
• Wheels are handled directly on Wheel Trolleys
• Reduces the needed width for walkways between racks to 1.4 metres
• Efficient and ergonomic handling of wheels

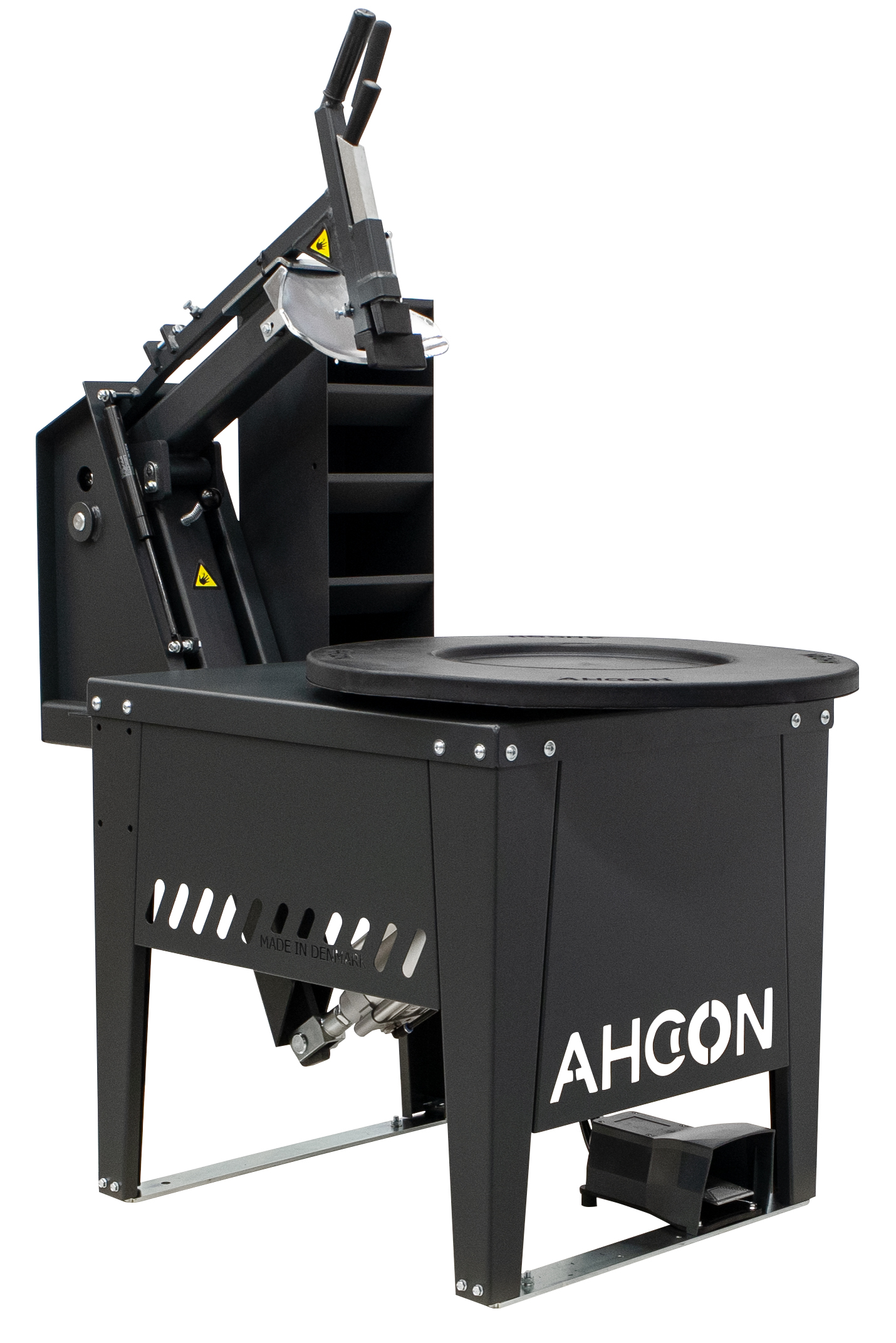

ERGONOMICALLY AND GENTLE BEAD BREAKING

AHCON bead breakers press the tire to remove the rim horizontally. This method ensures a much  lower number of pressure damages to the rim and a much better working posture compared with the use of traditional vertical bead breakers.

AHCON bead breakers are available in 3 different variants:
The basic model BBRT 700 – and the BBRT 900 and BBRT 900XL.

The latter two are equipped with extra functions such as among others a magic arm, that is especially good when working with alloy rims.

FEATURES:

• Horizontally beadbreaking
• A low number of damages to rims
• Including a wheel turning plate – and thus no manually lifting is required
• High level of ergonomics
• Can be combined with more AHCON equipment to a complete tire assembly line

MAKE YOUR WORKSHOP MORE SUSTAINABLE

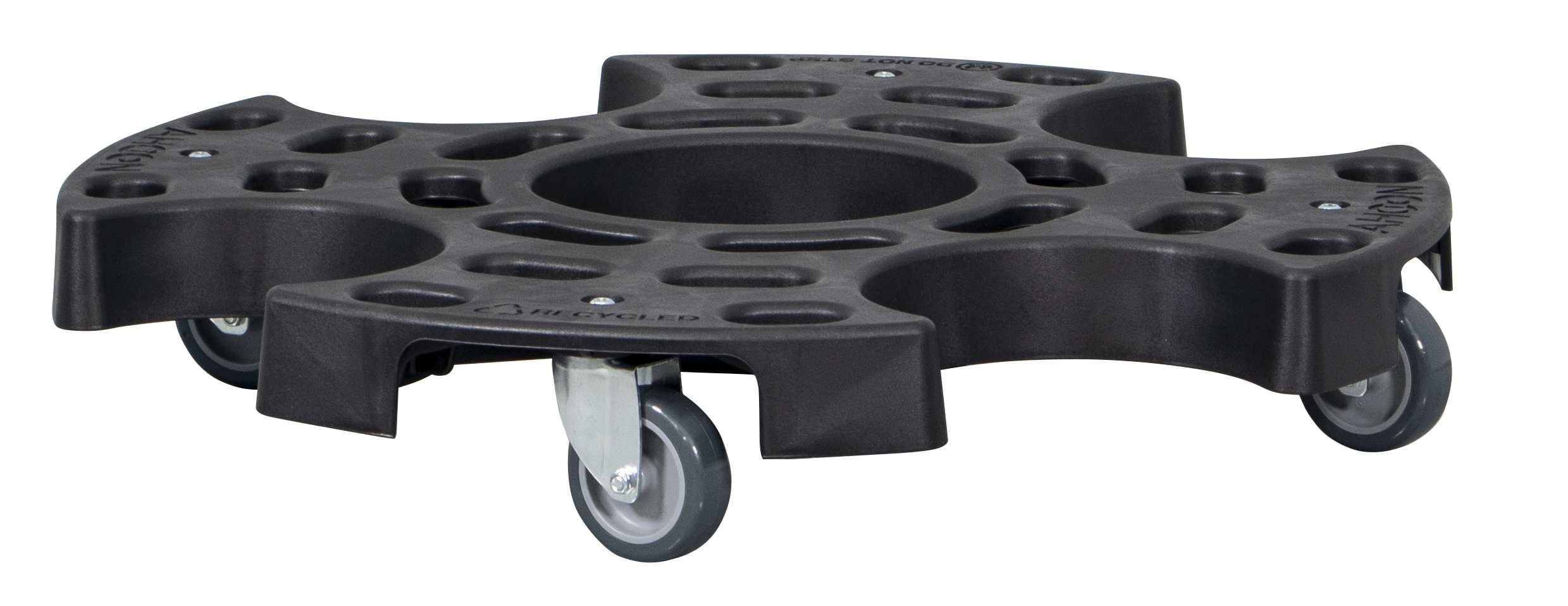

BRAND NEW PRODUCTS! WHEEL TROLLEYS MADE OF RECYCLED MATERIAL

• Same durable quality as traditional Wheel Trolleys
• Made of excess material from the car industry and recycled parts from damaged cars
• Reduces the emission of 4 -11 kg CO2 per trolley – depending on the model
• Available in 3 variants – all in the color black

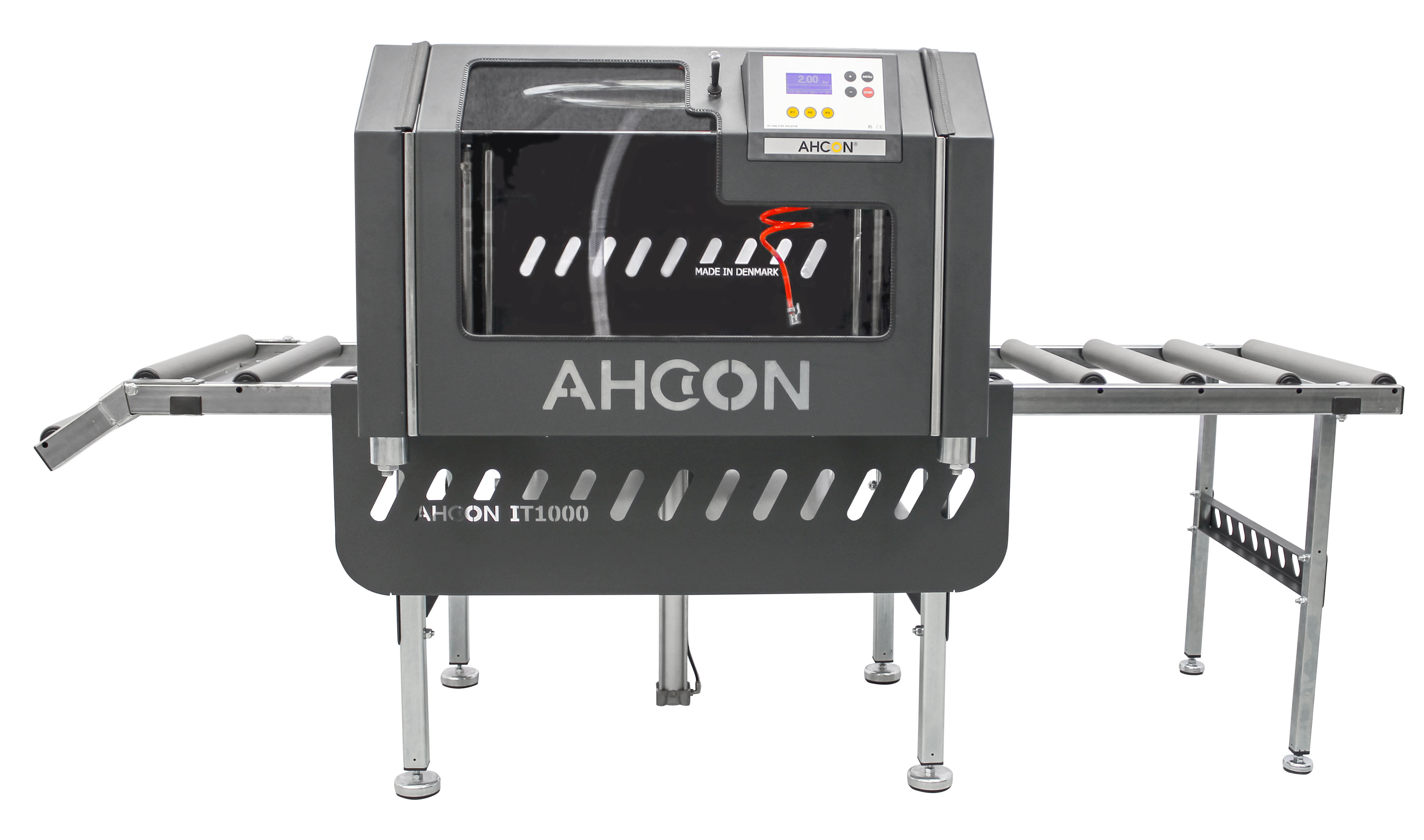

STREAMLINED INFLATION STATION FOR THE SAFE INFLATION OF WHEELS

The inflation station contains of a roller table with a built-on safety portal, that includes a PCI 1200 computer inflator.

IT 1000 can be mounted with different kinds of optional equipment. This way you can have an  inflation station with exactly the features and functions you need.

The use of the IT 1000 inflation station offers – beside from an increased safety – a high level of
efficiency to the complete tyre service workflow.

FEATURES:

• High level of safety when inflating wheels
• Big window on the front for a good view
• Poycarbonate glass is mounted with a heavy glue for a good durability
• Strong construction and a wide portal = high safety
• Incl. PCI 1200 computer inflator, which is nicely integrated on the front
• Can be mounted with different kinds of optional equipment

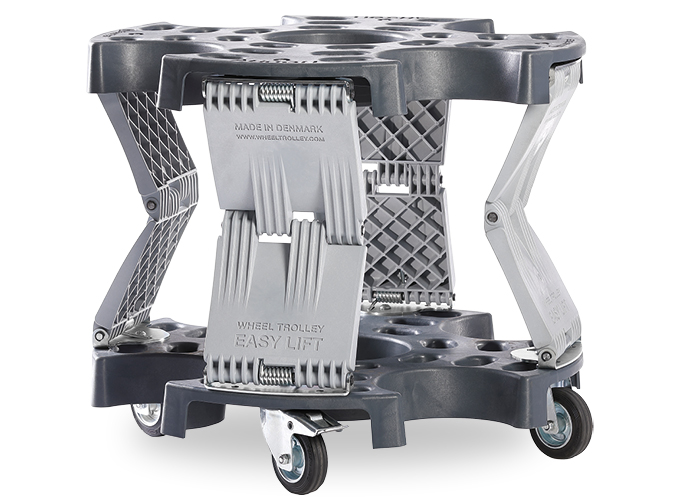

AUTOMATIC ADJUSTMENT OF THE HEIGHT IN RELATION TO THE LOAD
- THE MOST ERGONOMIC WHEEL TROLLEY TO WORK WITH!

Wheel Trolley Easy Lift is our own invention. It is the most ergonomic variant within our range of Wheel Trolleys.

It is an elevated Wheel Trolley, which, with the help of springs, raises and lowers in relation to load. A brilliant feature, when you wish to save yourself for heavy lifting and relieve knees and back.

The trolley is intended for 4 wheels and may be used for, amongst others, the mounting and dismounting of wheels, at tyre racks and as an ergonomically correct transfer to the tyre changing machine.

Wheel Trolley Easy Lift can - with just a small investment – improve the work environment considerably when handling tyres.

GOOD ERGONOMICS FOR A SMALL INVESTMENT!

FEATURES:

• Adjusts height in relation to the load
• Designed for 4 wheels and may be used for, amongst others, the mounting/dismounting of wheels
• Supplied with wheel brakes on 2 casters
• Improves ergonomics when handling tyres
• Stackable up to 4 pcs., hereby the 2 lower ones fold together
• Max load: 180 kg / 400 lbs
• Diameter: Ø700 mm / 27.6 inch
• Height: 240 – 580 mm / 9.4 – 22.8 inch
