Features of Compressed Air Tool: Composite Impact Wrench

• Lightweight for its composite

Adding with composite materials could provide high wear resistance. The durability for the whole tools could be even better. All in all, the composite and magnesium construction ensures lightweight and durable tools that can withstand rigorous use in any work environment.

• Far more powerful than you could imagine

The breakaway torque of our power composite impact gun is outstanding and marvelous. Basically the torque numbers listed in our catalogue are trustable. According to our customers’ feedback and actual testing, the real torque each wrench could perform reaches even higher! The loosening torque is a lot higher than the max torque listed in our catalogue and website. The mentioning above are real and true reactions from most of our customers. The wrench could be efficient and sufficient no matter to tighten, remove or change nuts, bolts, sockets.

• Twin hammer mechanism

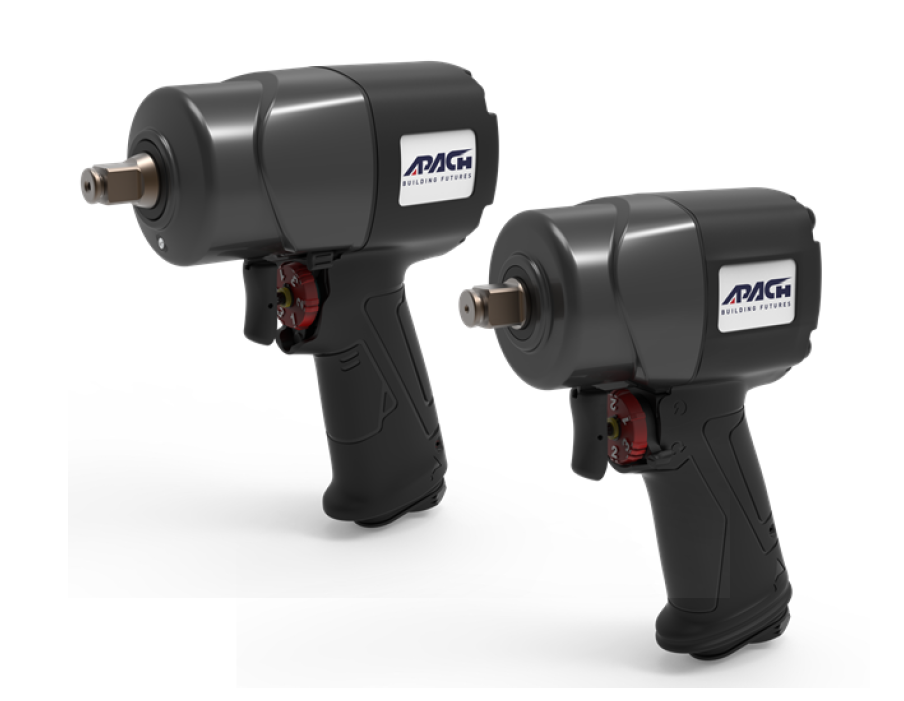

Featuring a Twin Hammer  mechanism, the AW050I and AW070D deliver exceptional power and efficiency.  First, this impact mechanism could have high torque when starting good continuity. Furthermore, it is endurable with consistent torque for long time operation. In addition, it could perform excellence in quick loosening and tightening. Finally, it is constructed with precision components and impact mechanism.

•       Patent Pending

The AW070D takes innovation to the next level with its patent-pending forward and reverse design. The special mechanism enables one-hand operation using just your thumb and forefinger, providing unparalleled convenience and control. This would increase more effective working experiences for all the users. With its state-of-the-art features and patented technology, our product promises to revolutionize the way you work with tools.

•  High Quality Materials & Other Features

We have incorporated the highest quality Japanese steel anvil into these impact wrenches, guaranteeing unmatched durability and performance. Additionally, the handle exhaust system ensures a clean and comfortable working experience, allowing you to focus on the task at hand.

With the convenience of one-hand operation for forward and reverse functions, these impact wrenches provide enhanced efficiency and ease of use. Both the AW050I and AW070D offer three positions for each side, giving you maximum flexibility and control.

Our impact wrenches boast a simple structure, making them incredibly easy to service and repair. We understand the importance of minimizing downtime, and with our user-friendly design, maintenance tasks become hassle-free.

Experience powerful torque with reduced noise levels, thanks to the optional muffler feature. This ensures a quieter working environment without compromising performance.

APACH also provides best 1/2”, 3/4” and 1” pneumatic composite impact gun. Various types of inch drives are available according to individual needs or different industries, like car, motorcycle, truck, agriculture machine, or assembly lines.

Specifications:

• Mechanism：Twin Hammer
• Composite
• Handle Exhaust
• Forward & Reverse: 3 position for each side
• Powerful torque with Lightweight
• Anvil square：1/2'
• Air consumtion：5.48 CFM (155 L/min)
• Air Inlet：1/4"
• Air Pressure：90 PSI
• Working Torque：770Nm (AW050I) / 881Nm (AW070D)
• Max Torque：881Nm (AW050I) / 1085Nm (AW070D)
• Breakaway Torque: 1224Nm (AW050I) / 1627 Nm (AW070D)
• Net Weight：1.43KGS (AW050I) / 2.2KGS (AW070D)

Special Features of Taiwan Excellence Awarded Impact Gun

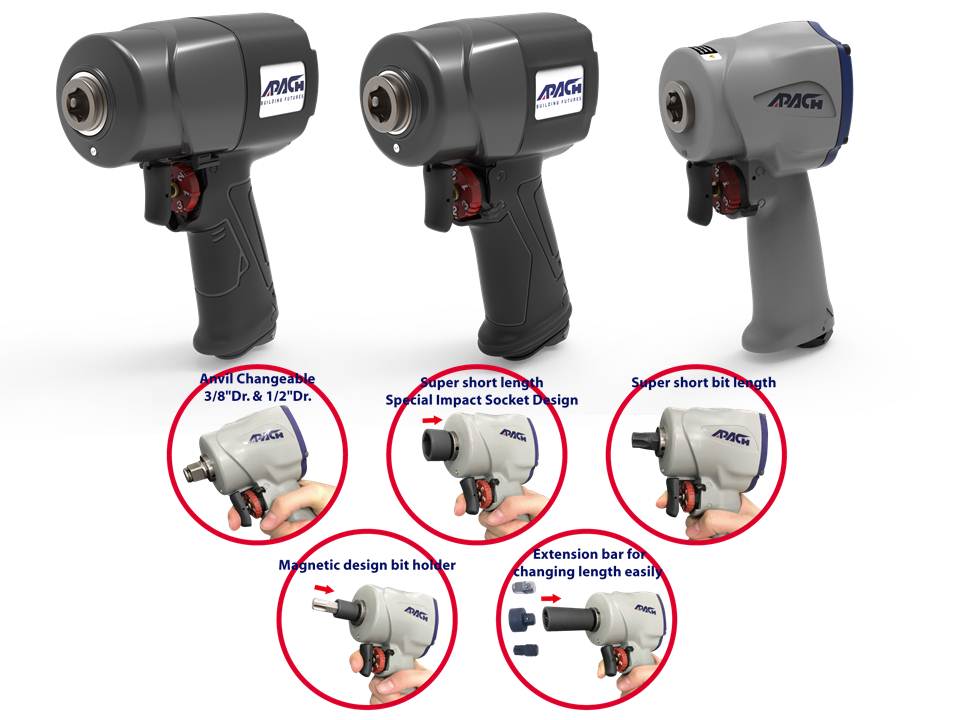

The AW050J, AW070E, and AW050H are high-performance composite air impact wrenches designed by Apach Industrial to meet various industrial needs. All three models share a common patent for having an interchangeable 1/2" and 3/8" anvil, providing flexibility and versatility in their applications. These impact wrenches are particularly well-suited for the automotive, motorcycle, agriculture, and assembly line industries. Featuring an innovative design, the total length of the tools with the impact sockets is only 104mm, making them ideal for narrow working environments. The special impact sockets are designed to insert directly into the tool without changing the anvils, ensuring convenient use in minimal operating distances. The anvil patent is held in five countries, including Taiwan, the United States, Germany, Japan, and China, ensuring these tools' multifunctionality typically requiring two or more tools.

The AW050J is known for its robust performance and user-friendly design. It offers reliable torque and an efficient twin hammer mechanism, making it ideal for various industrial applications. The lightweight composite housing ensures ease of use and reduces operator fatigue, making it a preferred choice for prolonged tasks.

The AW070E takes innovation a step further with its additional patent that allows for easier one-hand operation to switch between forward and reverse. This model is designed to deliver higher torque performance and offers a more efficient and convenient user experience. Its superior breakaway torque makes it suitable for more demanding tasks that require exceptional power.

The AW050H is a stubby impact wrench that stands out due to its compact size and lightweight design. Despite its small size, it delivers powerful torque and is ideal for working in tight spaces. The jumbo hammer mechanism ensures stability, durability, and a long service life. The AW050H is flexible in multiple applications and is equipped with special sockets and a magnet feature for enhanced functionality in minimal operating distances.

How our Pneumatic Patent Impact Wrenches Work and Why They are Recommended

AW050J, AW050H and AW070E are patented tools provided by Apach Industrial, one of top air tool manufacturers in Taiwan. They are designated maintenance tools for global car companies and any other areas/industries that need to deal with lug nuts, bits, torx, and sockets. The variety of application and service life makes this tool irreplaceable by many knockoffs distributed in the market.

• Support for single-handed operation, forward/reverse rotation and 3-stage settings to adjust speed and torque.
• With the impact sockets, the user can attach with special sockets for convenient use in minimal operating distance.
• Anvil Patent in 5 countries, including Taiwan, the United States, Germany, Japan and China, which features one tool realizes multiple functions usually needs 2 (or more) tools. The users can use them as either 3/8" or 1/2" with 3/8" Dr. & 1/2" Dr. anvil adaptors.
• The users can use the bit holders (standard set: 8&10mm) as either sockets or holders to attract 8&10mm bits.
• With the magnet feature inside the 14mm driveshaft, 14mm bits can be attracted with no socket as a connection.
• With the 14mm extension bar, the user can use all the accessories in broader applications with only one tool . The user can attach with bits or torx drives for greater range of application and the benefits of minimal operating distance.
• The wrench is all for shorter distance with sufficient torque power.

Specifications

AW050J: Twin Hammer

• Square Drive: 1/2"
• Air Consumption: 5 CFM (142 L/min)
• Air Inlet: 1/4"
• Air Pressure: 90 PSI (6.2 Bar)
• Hose Size I.D.: 3/8"
• Working Torque: 770 Nm (500 ft-lb)
• Max Torque: 881 Nm (650 ft-lb)
• Free Speed: 8000 RPM
• Overall Length: 127 mm (5")
• Net Weight: 1.43 kg (3.37 lb)

AW070E: Twin Hammer

• Square Drive: 1/2"
• Air Consumption: 5.48 CFM (155 L/min)
• Air Inlet: 1/4"
• Air Pressure: 90 PSI (6.2 Bar)
• Hose Size I.D.: 3/8"
• Working Torque: 881 Nm (650 ft-lb)
• Max Torque: 1085 Nm (800 ft-lb)
• Breakaway Torque: 2033 Nm (1500 ft-lb)
• Free Speed: 8500 RPM
• Overall Length: 159 mm (6.26")
• Net Weight: 2.2 kg (4.50 lb)

AW050H: Jumbo Hammer

• Square Drive: 1/2", 3/8"
• Air Consumption: 4.0 CFM (113 L/min)
• Air Inlet: 1/4"
• Air Pressure: 90 PSI
• Torque: 542 Nm (400 ft-lb)
• Max Torque: 813 Nm (600 ft-lb)
• Breakaway Torque: 1220 Nm (900 ft-lb)
• Overall Length: 84 mm (3-5/16")
• Net Weight: 1.35 kg (2.98 lb)

Introducing the AW120C and AW120D 3/4” Air Impact Wrenches

Introducing our new 3/4” Air Impact Wrenches - the ultimate solution for effortless and powerful tooling! With a lightweight design and exceptional torque, these wrenches are game-changers for any project, whether professional or DIY.

Crafted from the highest quality Japanese steel, our wrenches feature an anvil size of 3/4" and an optional 1", ensuring unparalleled durability and resilience. With a powerful torque of up to 1500 Ft-lb, they effortlessly handle even the toughest tasks. The two-stage trigger design offers maximum control and precision, with two positions for each side, making forward and reverse functions more effective. The option for inside or outside triggers provides flexibility, making it comfortable for both left and right-handed users.

You can choose between two models: the AW120C (straight type) with an upon exhaust system, and the AW120D (pistol type) with a handle exhaust system. The AW120C releases air from the back, while the AW120D removes it from the handle, catering to different user preferences and needs.

These 3/4” air-power impact wrenches are perfect for all kinds of industrial and automotive applications. Whether you're a professional mechanic or an amateur DIY enthusiast, these tools are designed to meet your needs. Their lightweight design makes them easy to carry and use, while the sturdy construction ensures they can withstand heavy use.

Key Features

• Weight: 3.28 kg
• Mechanism: Twin Hammer
• Material: Highest durable Japanese steel anvil
• Forward & Reverse: 2 positions for each side
• Lightweight Composite Housing
• Exhaust System: Upon exhaust (AW120C), Handle exhaust (AW120D)
• Hose Fitting: Swivel fitting
• Handle Options: Available for left/right-hand users
• Trigger Options: Inside or outside trigger available
• Working Torque: 1200 Ft-lb (1627 Nm)
• Max Torque: 1500 Ft-lb (2034 Nm)

These features make our 3/4” air impact wrenches versatile, durable, and powerful tools, ideal for a wide range of applications. Whether for professional or personal use, the AW120C and AW120D models ensure superior performance and ease of use.

Features of 1 inch Compressed Air Tool : 1" Impact Gun

• Lightweight

  The material used in APACH’s latest 1 inch pneumatic impact wrench is aluminum which makes the tool weigh lighter than any other 1” impact guns from other brands. The lightweight feature would decrease the users’ heavy load so much.

• Heavy-duty impact clutch mechanisms

  Three clutch types, twin hammer, pinless, pin clutch are available. All of these clutch mechanisms could perform stable and high torque with exceptional durability.

• Powerful torque

  This heavy duty impact wrench could remove lug nuts, change tires for semi-truck, boat, structure like bridges and agriculture machine. The basic torque for this series would be 2,500 ft-lb to 2,700 ft-lb depend on different clutch mechanisms. The breakaway torque could even reach 2,800 ft-lb, which means the torque of our AW200 series is more powerful than that of similar product from any other brands you could find in the market.

• Low vibration and air consumption

  The impact tool has been actually sent to two reliable laboratories to test its vibration. Two results are 9.49m/s2 under loading situation and 0.6m/s2 under idling mode. Besides, our impact guns are designed to have low air consumption with only 6.94cfm.

• Some optional specification designed to fit individual needs

  According to different individual needs and using habit, it is available to change left or right handle. Moreover, bottom or top exhaust and inside or outside trigger are also optional. The tool is designed to increase more comfortable operating experience

Specifications

• Three Optional Mechanism：Twin Hammer, Pinless, Pin Clutch
• Top exhaust or bottom exhaust
• forward & reverse；3 position for each side
• Inside or Outside trigger availavle
• Die Casting of housing
• Anvil square：1"
• Air consumtion：6.94 CFM (196 L/min)
• Air Inlet：1/2"
• Air Pressure：90 PSI
• Torque：1200 Ft-Lb (2983 N.m.)
• Max Torque：2700 Ft-Lb (3661 N.m.)
• Breakaway Torque: 3796 Nm
• Overall Length：2" Anvil: 13.5" (343mm); 6" Anvil: 19.3" (490mm)
• Net Weight：2" Anvil: 6.65Kg (14.66 Lbs); 6" Anvil: 7.72 Kg (17.02 Lbs)

Lightweight but Robust 1/2” Air Impact Guns

AW050G is designed to be shortest that could be easily operated in narrow and cramped environment. It includes one-hand operation for forward & reverse and 3 positions for each side, so that users are able to operate it faster and more precisely. With lightweight feature (1.33kg), this air impact gun is suitable for various industrial purposes.

Know More about Our 1/2” Impact Wrench and Its NEW Socket Impact Tool Kit / Set

*AW050G is a designated maintenance tool for global car companies and any other areas/industries, bringing powerful torque and efficient working experience for the users.

• Jumbo Hammer mechanism is applied into this impact gun, for its stability, long-life, lightweight and durability.
• Support for single-handed operation, forward/reverse rotation and 3-stage settings to adjust speed and torque.
• The wrench is all for shorter distance with sufficient torque power. (MAX 813N.m)
• Breakaway torque could be over 900ft-lbs (1220Nm).

*Now new socket set with 1/2” impact tool is released for automotive, agriculture machinery, assembly, and even DIY personal uses at any places, which users not only experience robust torque but brings more convenient and efficiency. Please see below contents for your reference.

• Impact Sockets 1/2" Drive: 10, 11, 13, 14, 17, 19, 21, 22mm
• Wheel Protector Impact Socket 1/2" Drive: 17, 19, 21mm
• 5" Extension bar

Specifications

• Mechanism：Jumbo Hammer
• Handle Exhaust
• One hand operation for forward and reverse；3 position for each side
• Die casting of housing
• Only 3-7/8"(99mm) length
• Anvil square：1/2"
• Air consumtion：4.0 CFM (113L/min)
• Air inlet：1/4"
• Air pressure：90 PSI
• Torque：400 Ft-Lb (542 N.m.)
• Max Torque：600 Ft-Lb (813 N.m.)
• Breakaway Torque: 900 Ft-Lb (1220N.m.)
• Overall Length：3-7/8" (99mm)
• Net weight：1.33Kg (2.98Lbs)
