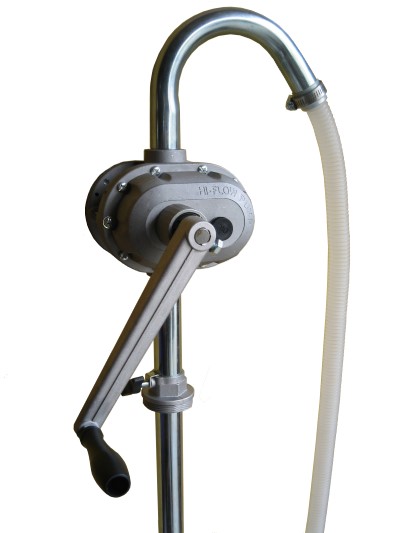

• Pump Type: Rotary - Gear
• Flow: 1L / Rotation
• Maximum Fluid Temperature: 140˚F / 60˚C
• Mounting: 2" MNPT Bung Adapter
• Suction Tube Length: 40" Maximum
• Inlet: 1-1/4" O.D.
• Outlet: 1-1/4" O.D. Curved Spout
• Wetted Parts: Cast Aluminum, Plated Steel, NBR & PE
• Maximum Viscosity: 500 SSU (or SAE 30)
• With Polythylene(PE) Extension Hose and Curved Spout
• Standard Packing: 5pcs/ctn, NW: 28kgs, GW: 30kgs, Cuft: 3.4'
• Commonly used for dispensing or transferring low viscosity and non-corrosive petroleum based fluids, such as Petrol, Diesel, Kerosene, Lube, Fuel, Machine Oil, etc.
• Counter clockwise and clockwise operation for discharging freely.
• Vertical conveying distance of 15 meters,  Horizontal conveying distance of 50 meters.
• Supply with 2" bung adapter and 3-piece or 40" long plated steel suction tube to fit most 15, 30 and 55 gallon drums.
• Self-priming unit, dispenses approximately 1 liter per stroke.
• Do not use with organic solvents, alkalis, acids and water-based fluids.
• Supply with Suction Filter to filter the dirt and ensure pump life.

Acodex Enterprise Co., Ltd.

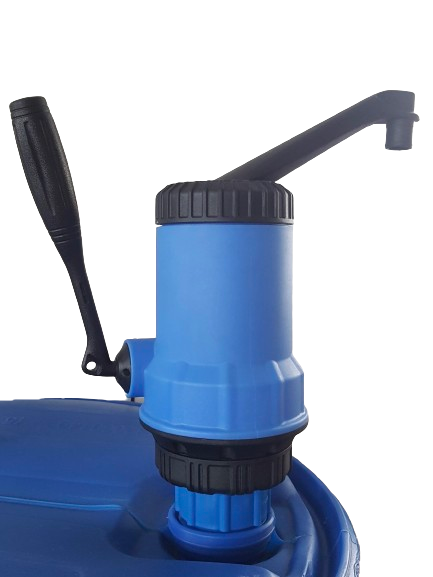

• Pump Type: Piston
• Flow: 70 ml/ Stroke
• Maximum Fluid Temperature: 140˚F / 60˚C
• Mounting: Pail Adapter
• Wetted Materials of Construction: Steel & Nylon
• Maximum Viscosity: 5,000 SSU
• Standard Packing:1set/poly bag , 24sets/1ctn, NW:21.5kgs, GW:22.5kgs, CUFT:2.8

• This plastic bucket pump is designed to fit a 5-gallon (20L) pail and is ideal for transferring non-corrosive fluids of light to medium viscosity, such as engine oil, gear oil, transmission fluid, automotive additives, machine oil, etc.
• The pump is a down-stroke style, comes with a 50" oil-resistant flex hose with non-drip nozzle and a drain back nozzle holder to ensure the excess oil back into the pail to prevent spills and accidents.
• This pump is self-priming.

Acodex Enterprise Co., Ltd.

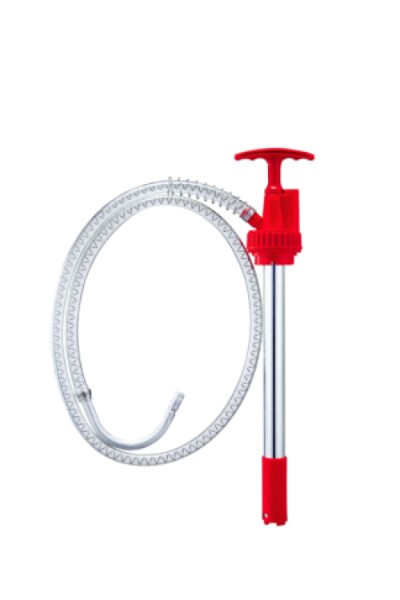

• Polypropylene pump body, Polypropylene discharge tubing and NBR-sealing
• 15~55 gal. with 50mm(2 in.) bung adaptor
• 500ml / stroke
• Suitable for Alcohol, Anti-Freeze,Boric Acid, Heating Oil, Diesel, Kerosene, Machine oil, Motor oil
• Maximum recommended: 500 SSU
• Maximum recommended: 60 (140F)
• 1" O.D.
• 3/4" O.D.

Acodex Enterprise Co., Ltd.

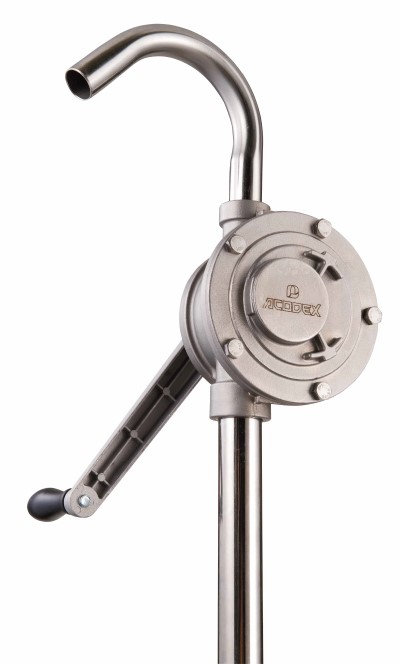

• Pump Type: Rotary - Vane - Stainless Steel Rotor

• Flow: 280ml / Rotation

• Maximum Fluid Temperature: 140˚F / 60˚C

• Mounting: 2 inch MNPT Bung Adapter

• Suction Tube Length: 40 inch Maximum

• Inlet: 1-1/4 inch O.D.

• Outlet: 1 inch O.D. Curved Spout

• Wetted Parts: 304SS & Teflon

• Maximum Viscosity: 2,000 SSU

• Standard Packing: 4pcs/ctn, NW: 24kgs, GW: 25kgs, Cuft: 1.5'

• Ideal for transferring soluble, corrosive, volatile and aggressive chemicals, such as esters, ketones, alcohols, bases, alkali, acids, hydrocarbons, chlorinated hydrocarbons and water based liquids which are compatible with pump component materials.

• Also suitable for transferring petroleum based fluids of light to medium viscosity, such as automotive additives, diesel, lube oils, kerosene, solvents, thinners, benzene, cleaning solutions, fuels oils, transmission fluid, machine oils, motor oils, etc.

• Supply with Suction Filter to filter the dirt and ensure pump life.

• Self-priming unit, dispenses approximately 12 oz per stroke.

Acodex Enterprise Co., Ltd.

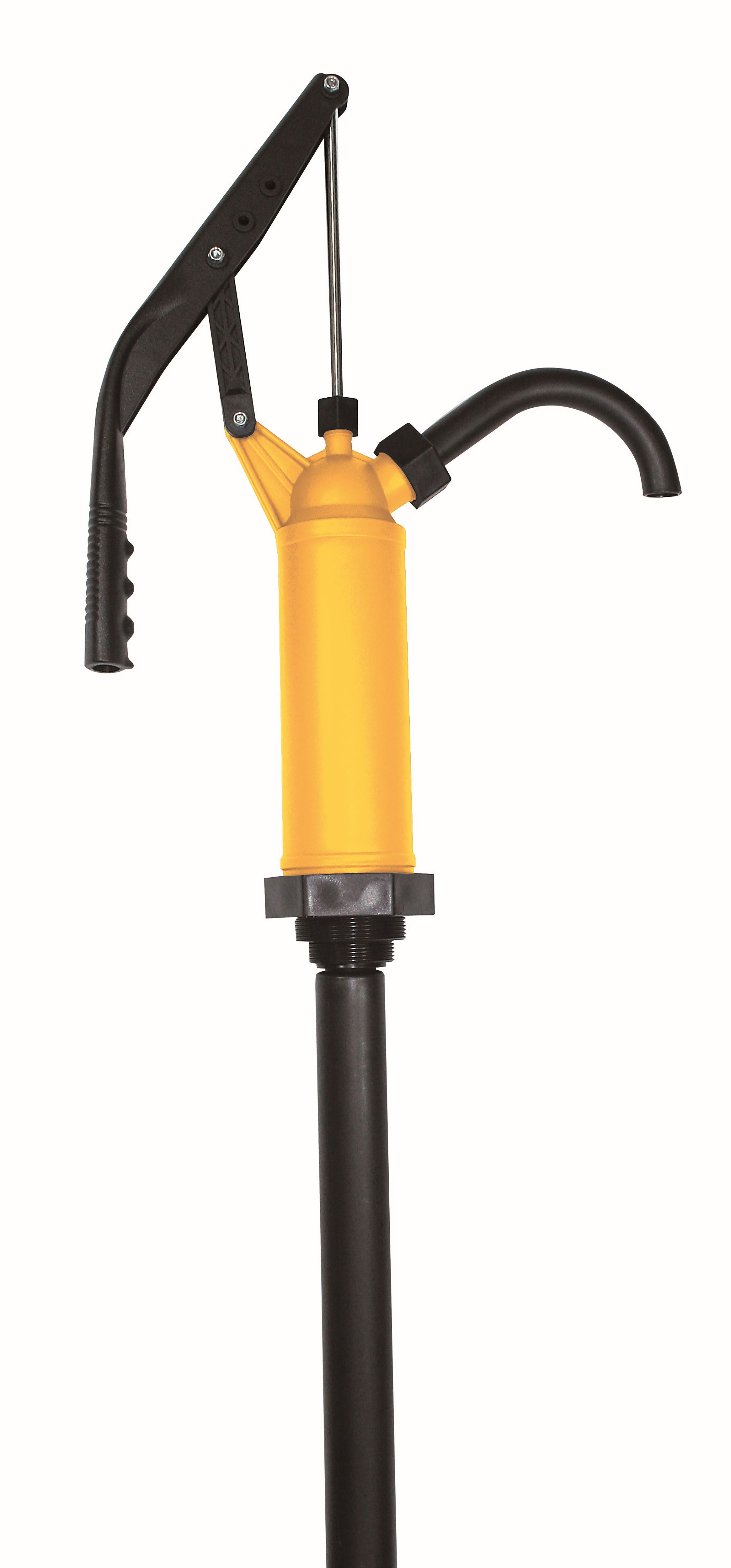

• Material: Polypropylene and fibre mix body components and stainless steel piston rod.

• Viton seal

• Yellow pump body

• Application: Water, alcohol, diesel, kerosene, lubricant etc.

• Suitable for light oils, paraffin, diesel, alcohol water, water based chemicals, mild solvents, anti-freeze weaker acid and alkali solutions etc.

• 350ml / Stroke.

• Maximum Viscosity: 1,000 SSU

Acodex Enterprise Co., Ltd.
