Ratchet type axle stand with cast iron support post and tough welded steel plate base.
• Angled teeth in post prevent accidental release of load - the more weight applied, the tighter the post is locked.

Min. Height : 420 mm
Max Height : 680 mm
Capacity : 20 Ton

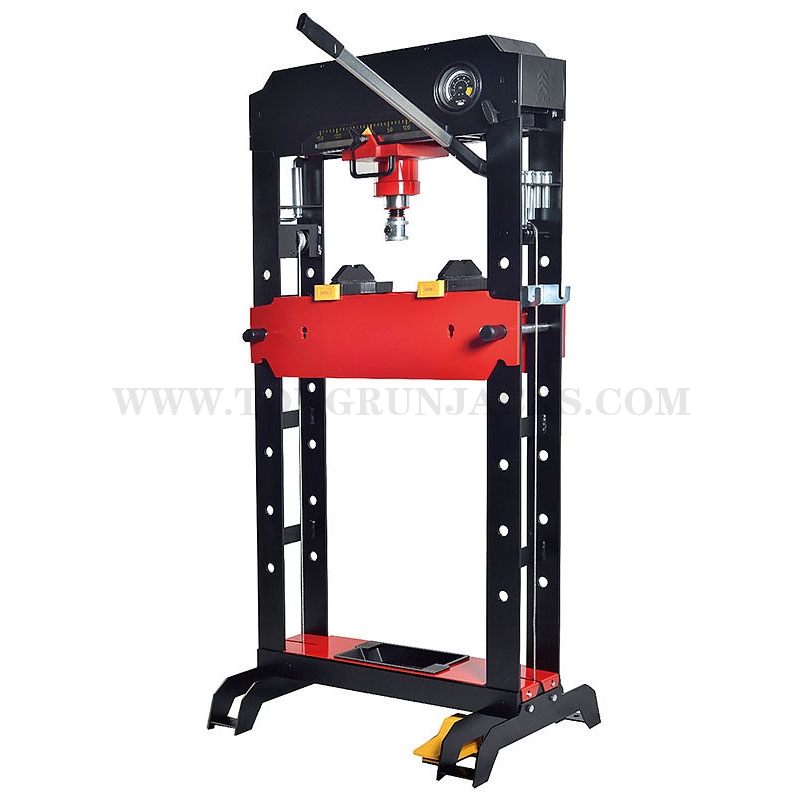

• Safety valve
• Industry seals
• Robots welding
• Laser cutting frame
• Removable parts tray
• Foot pedal for pneumatic operation
• Pneumatic & manually pump with double speed action

Capacity : 50 Ton
Air Pressure : 0.9~1.2 Mpa

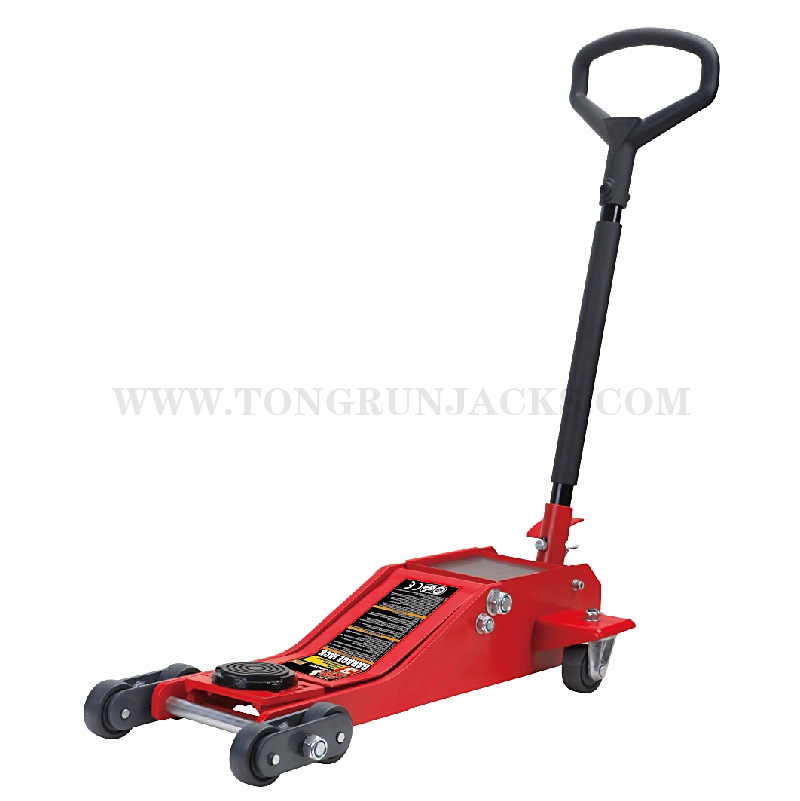

• The hydraulic technology makes lifting simple while a wider frame and internal bypass valve ensure safety.
• Safety bypass system prevents over-loading and ensures safe operation.
• Steel casters for longevity.
• Special quality design:
polished and treate cylinder rams use high performance seals.
Polished inner cylinder walls extend the life of the seals to minimize abrasion and wear.
Polished and treated pump cylinder pistions use high performance seals.

Min height : 80 mm
Max Height : 500 mm
Product Size : 822x420x232 mm
Capacity : 3 Ton

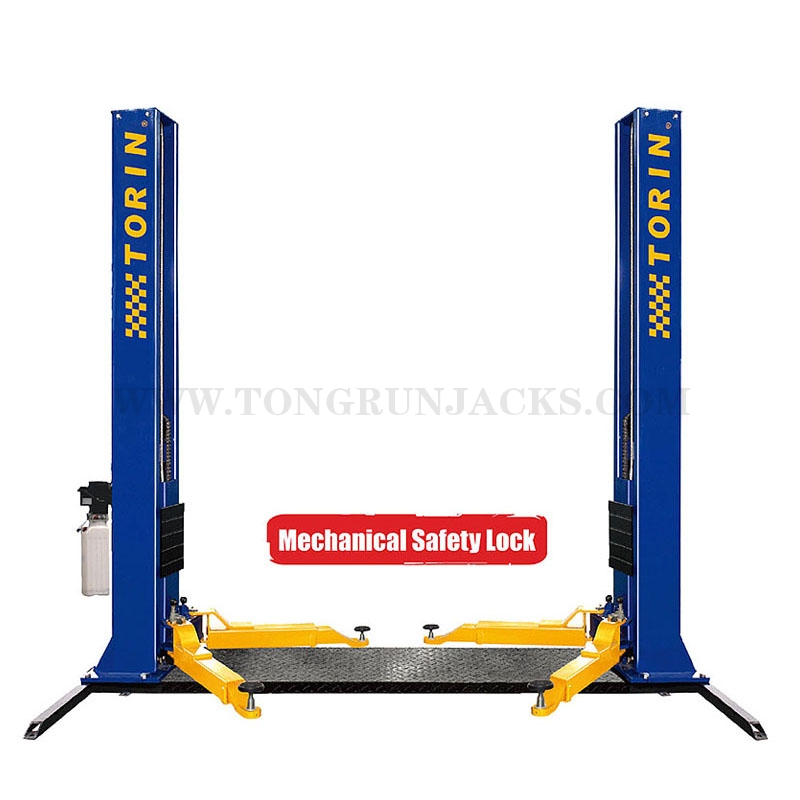

MECHANICAL SAFETY LOCK
• Manual safety locking system.
• Driven by dual hydraulic cylinders. Mechanical locking system, w/single point safety latches in each column.
• Chain type lifting system.
• Steel wire rope equalizing cables. Multi-voltage power supply is available for electrical requirements.
• Optional motors.
• Adjustable lift pads and adapters.
• Low profile Floorplate.
• Durable powder coat finish.

Capacity : 4 Ton
Motor Performance : 2.2 kw
Lifting Time : 50 sec.
Electrical Connection : 380V / 220V
N.W. / G.W. : 690 / 705 kg

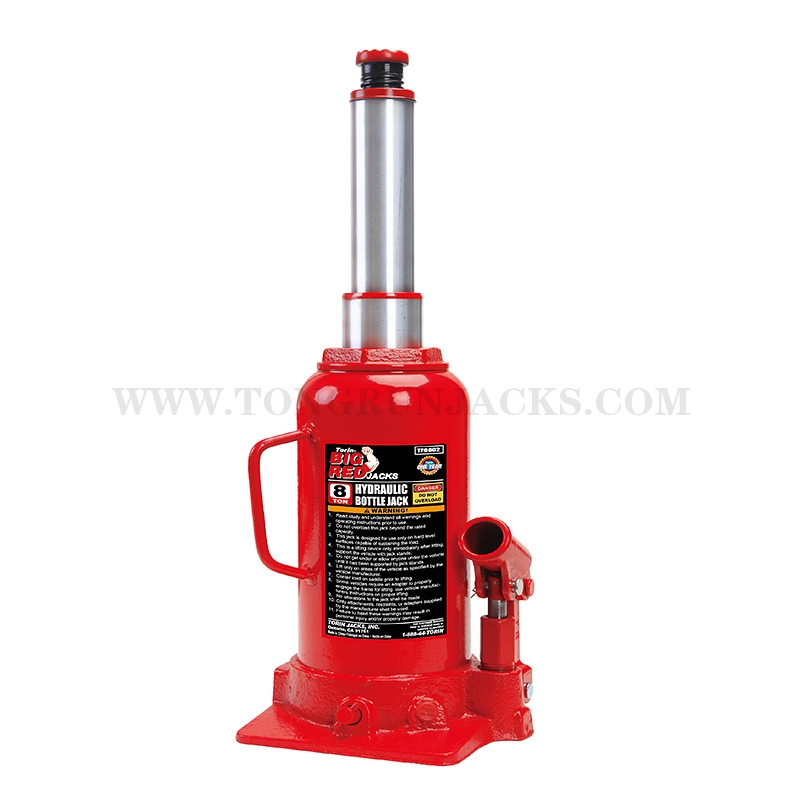

• Dual-stage, steel hardened rams allow for longer travel. Lower retracted heights and higher extended heights. Heat treated saddle provides generous lifting area and secure grip.
• A wide ,rugged base provides stability and strength. Safety bypass valves prevnet overloading.

Min. Height : 270 mm
Lifting Height : 285 mm
Max. Height : 635 mm
Adjustable Height : 80 mm
Package Size : 330x185x305 mm
Capacity : 8 Ton
