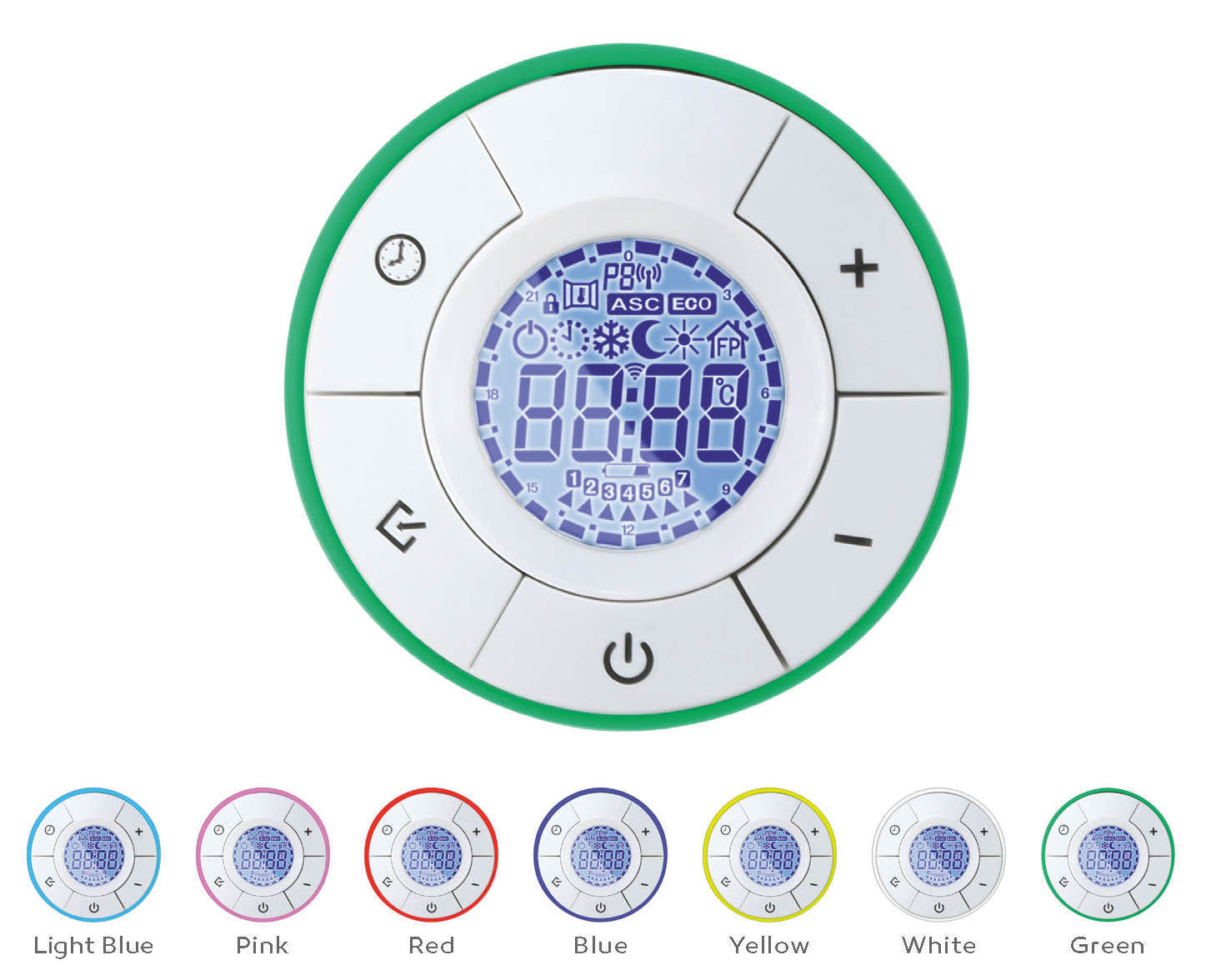

The ONE project is an advanced electronic chronothermostat for electric towel warmers with fluid heat transfer and temperature control via room sensor. The system consists of two units: a fixed one for resistance control, and mobile remote interface with manage all functions. The fixed unit can be installed on the right side or on the left side of the heating towel rail and communicates bidirectionally with its own remote control; it is supplied already assembled to the heating element. However, the remote control has a backlit display for a clear view, body is covered with a pleasant interchangeable silicone protective cover, available in seven different colors. Allows the weekly programming. The remote control can be hooked in a comfortable visual area to the elements of the heating towel rail by means of a magnetic support or positioned with a special wall-mounting bracket. The system can be connected to Android® and iOS® devices with the appropriate App. Functions: Only one remote control can manage 8 different towel warmers.

The open window function reduces waste and saves energy. The ASC function anticipates the switch-on time with respect to the settings, increasing comfort and at the same time reducing consumption. There are 6 preset programs and 3 user programs. This thermostat can be connected to a 6-order Fil-pilote control unit (available only for Class II). The block key function can be activated to prevent accidental changes to the settings.

Technical specifications:

Operational modes:
Comfort, Night, Fil-Pilote, Timer2h or Boost2h, Standby, Clock-thermostat, Antifreeze, ECO, Open window detection, ASC, Continuous heating, Key lock, Dedicated remote controller, AndroidTM iOSTM compatible

Conformity marking
Supply voltage 230 VAC - 50 Hz
Range of supported powers 100 ÷ 1000 W
Selectable temperature range 7°C ÷ 32°C ± 10%
Maximum thermal fuse temperature 152°C
Appliance classes Class I – Class II
IP protection IP44
Size
Fixed unit: 56mm x 56mm x 44mm
Remote control: 76mm x 76mm x 31,8mm
Available colours White, Chrome
Optional: One Plus

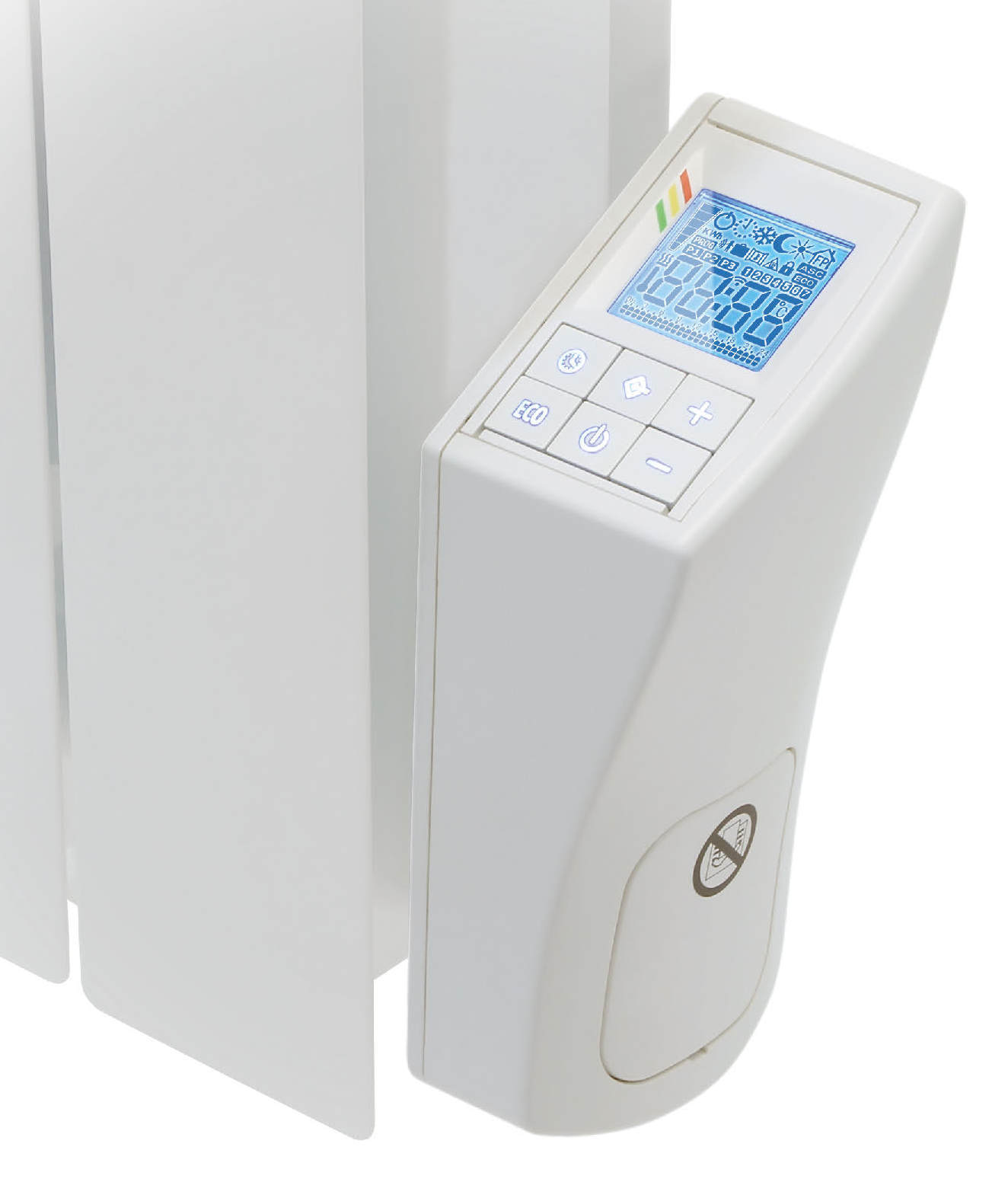

Innovative and modern digital clock thermostat for electric radiators based on fluid or dry heat transfer that can be configured with a daily or weekly program. The temperature is controlled by means of a room temperature sensor and it is based on a TRIAC with PID algorithm for a more precise temperature control. The device can be coupled to several replaceable heating element types up to 2000W. The supported heating element types are easily obtainable from the main European manufacturers. INFINITY is equipped with one of the widest white backlit displays in its category, which provides an optimal visualization of the device status, the active functions and the selected operating mode. In particular, it provides information about the output power and the actual energy consumption. In addition to the optional IR receiver for operating the device with the “Helios” and “Galaxy” remote controls, INFINITY can also be optionally equipped with a Wi-FiTM module for connecting to iOSTM and AndroidTM devices and allowing the control of the device through the dedicated App, for an improved user experience. The “Open Window Detection” function reduces energy waste and thus allows cost savings. The “Vacation” function allows deactivating the thermostat for a user configurable time interval. The “ASC” function anticipates the starting time compared to ambient temperature dynamic. The “Childsafety” function lowers the temperature of the radiating surface. The “Key Lock” mode can be used to prevent inadvertent modification to the settings. The clock thermostat allows selecting one of three predefined customizable programs. INFINITY can be connected to a Fil-Pilote control unit with 6 commands (only for Class II models).

The device has a backup battery (supercap), which obviates to a loss of power supply and supplies sufficient energy to the internal clock for up to two hours. The motion sensor function reduces the temperature when the room is empty by switching to ECO mode to save energy. The holiday function allows the thermostat to be deactivated for a period chosen by the user.
This thermostat can be connected to a 6-order Fil-pilote control unit (only for the Class II version).
Versions:
• INFINITY ECO - relay switching with PID algorithm.
• INFINITY PLUS - Triac switching with PID algorithm,
LCD backlight, IR receiver.
• INFINITY Wi-Fi – Wi-Fi module, Triac switching with
PID algorithm, LCD backlight, IR receiver, backlighted
button.

Technical specifications
Operational modes, functions
and display indications
Comfort, Night, Fil-Pilote, Timer2h or Boost2h, Stand-by, Clock-thermostat, Antifreeze,
Open window detection, ECO, Presence Sensor, Children protection, ASC, Holiday, Key
lock, AndroidTM iOSTM Wi-FiTM compatible, Power indicator, Energy consumption
indicator
Conformity marking CE
Supply voltage 230 VAC - 50 Hz
Range of controllable powers Up to 2000 W
Ambient working temperature 7°C ÷ 32°C
Appliance classes Class II
IP protection IP24
Size 190mm x 83mm x 64mm
Available colours White, Noir Sablè

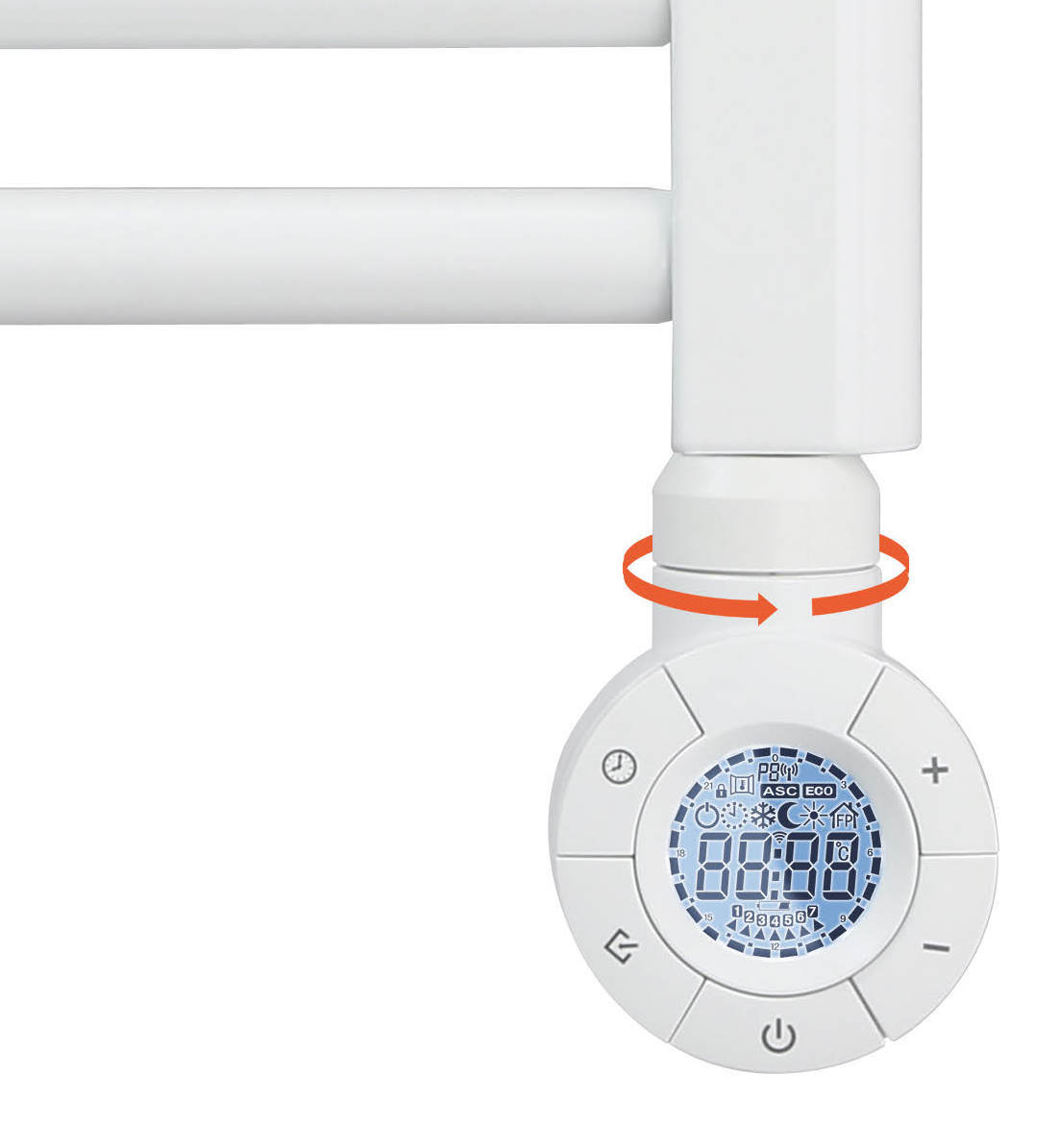

This digital chronothermostat for electric towel warmer has the peculiarity of being able to rotate 350 ° around the resistance. It is provided with a resistance with particular coupling produced by HT S.p.A. on which it is mechanically fixed. The possibility remains of the right or left coupling to the heated towel rail. Allows weekly programming with fluid heat transfer and temperature control via room sensor. The large display, equipped with backlight, broadly displays each status and mode of user set. There are the functions of open window detection, ASC controller, with 6 fixed programs and 3 settable programs, white backlight and all the functions of the programmable thermostat. (possibility to rotate the entire towel warmer without removing the thermostat) can be supplied with or without coupled resistance. DYNAMIC PLUS is a special version with fluid temperature sensor, allow regulation between 30°C and 70°C DYNAMIC PLUS is equipped with a special heating element, with internal NTC temperature sensor.

Technical specifications
Operational modes
Comfort, Night, Fil-Pilote, Timer2h or Boost2h, Standby,
Clock-thermostat (9 programs), Antifreeze, Open
window detection, ASC, Continuous heating, Key lock
Conformity marking CE
Supply voltage 230 VAC - 50 Hz
Powers 1500 W
Selectable temperature range 7°C ÷ 32°C ± 10%
Appliance classes Class I – Class II
IP protection IP44
Size 71mm x 97,5mm x 47mm
Available colours White, Chrome

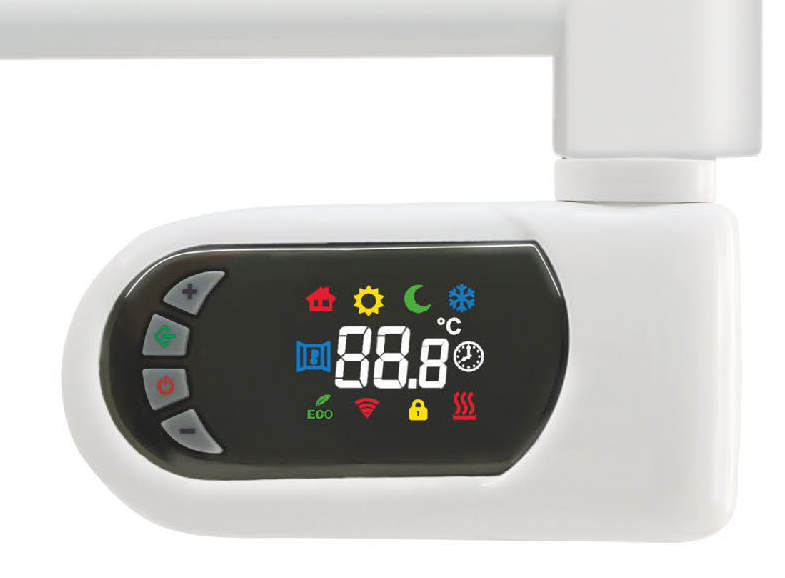

Digital thermostat for room temperature control. SYNTHESIS can be coupled to several easily replaceable heating element types and obtainable from main European manufacturers. The device provides the useful “open window detection” function for optimising energy consumption. When associated to the optional remote controls (“Helios” and “Galaxy”) SYNTESIS becomes a clock thermostat and allows the configuration of a weekly program specific for each day of the week. Comfortable visualization of the device settings is provided through a display and LED indicators of different colours. When the device is off the display is hidden behind an elegant mirror-like effect. WiFi version available.

Technical specifications
Operational modes
Comfort, Night, Antifreeze (7°C), Boost2h, Stand-by,
Fil-Pilote (for Class II model only), Chrono (only with
optional remote control), Key Lock, Open Window, WiFi version
Detection
Conformity marking CE
Supply voltage 230 VAC - 50 Hz
Maximum power 2000 W
Room temperature sensor range 7°C ÷ 32°C
Appliance classes Class I – Class II
IP protection IP44
Size 131mm x 76mm x 42mm
Available colours White, Chrome
Optional Wi-Fi module Infrared remote control “Helios” or “Galaxy”

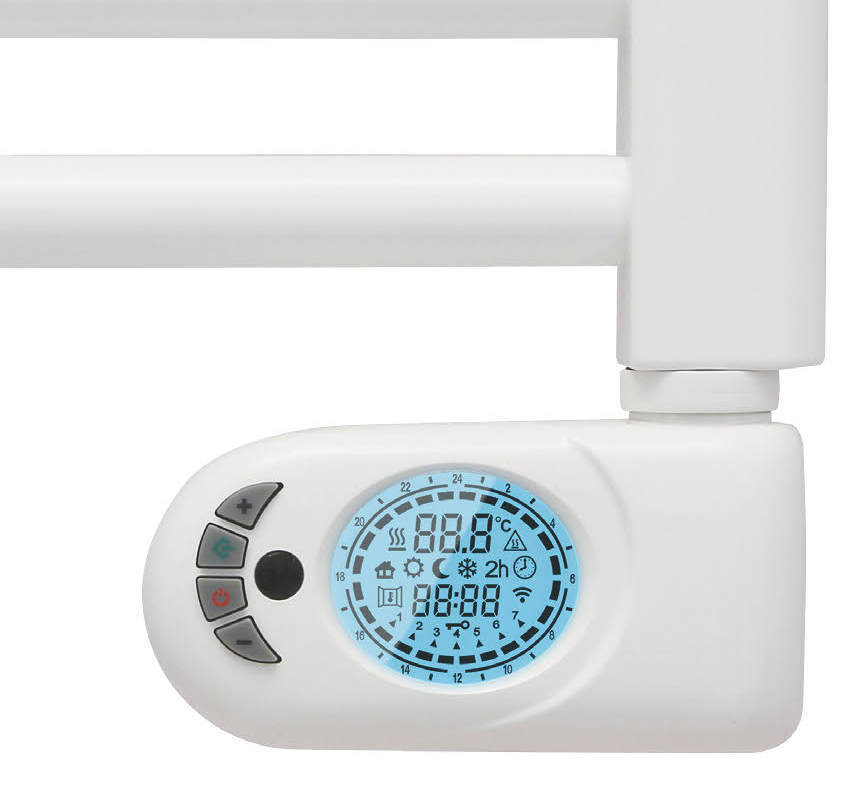

Digital clock thermostat for electric towel heaters based on fluid heat transfer. The device can be configured with a weekly program specific for each day of the week. The temperature is controlled by means of a room temperature sensor. The device has a wide backlit display for a detailed view over the selected operative mode and the active functions, and it can be coupled to several easily replaceable heating element types obtainable from main European manufacturers. MUSA PLUS also provides the useful “open window detection” function for optimising energy consumption. An IR receiver allows to comfortably configure the device through the optional remote controls (“Helios” and “Galaxy”). MUSA PLUS meets Eco-design Directive for local space heating.

Technical specifications
Operational modes
Comfort, Night, Antifreeze (7°C),
Boost2h, Stand-by, Fil-Pilote (for
Class II model only), Chrono, Key
Lock, Open Window Detection
Conformity marking CE
Supply voltage 230 VAC - 50 Hz
Maximum power 2000 W
Selectable temperature
range
7°C ÷ 32°C
Appliance classes Class I – Class II
IP protection IP44
Size 131mm x 76mm x 42mm
Available colours White, Chrome
