WHAT DOES YOUR EXHAUST GAS TEMPERATURE SENSOR DO?

The EGTS is responsible for measuring and monitoring the temperature of exhaust gas across multiple locations in the exhaust system. In gasoline engines, if the sensor detects excessive temperatures, the ECU will reduce the temperature by lowering boost pressure. In diesel engines, the sensor is used to monitor the temperature of the diesel particulate filter (DPF) to determine the exact temperature for regeneration.

WHERE IS THE EXHAUST GAS TEMPERATURE SENSOR LOCATED?

It is common to have three or more sensors fitted to the exhaust

• T3 – pre-Turbocharger (TBC)
• T2/T4 – post Turbocharger (TBC)
• T5/T13 – post Diesel Oxidation Catalyst (DOC)
• T6 – post Diesel Particulate Filter (DPF)
• T7 – pre–Selective Catalytic Reduction (SCR)
• T8 – post Selective Catalytic Reduction (SCR)
• T9/ T11 – pre-Exhaust Gas Recirculation (EGR)
• T10/ T12 – post Exhaust Gas Recirculation (EGR)

WHY DO EXHAUST GAS TEMPERATURE SENSORS FAIL?

Exposure to excessively high temperatures, up to 900°C, over extended periods of time, is the main cause for failure. Also, damage to wires due to excessive vibrations, as well as exposure to other contaminants, fluids such as oil or antifreeze, can all affect the sensor’s functionality.

HOW DO YOU KNOW YOUR EXHAUST GAS TEMPERATURE SENSOR IS FAULTY OR
FAILING?

A faulty exhaust gas temperature sensor can negatively impact a SCR system, resulting in the
following symptoms:

• Check engine light illumination
• Reduced fuel efficiency
• Unnecessary DPF regeneration
• Failed emissions test

HOW TO DIAGNOSE A FAULTY OR FAILING EXHAUST GAS TEMPERATURE SENSOR?

• Perform an electronic test and read any fault codes using a diagnostic tool
• Inspect the connectors and wiring for signs of corrosion, breaks or loose connections
• Check the sensor for any suit build-up; remove contaminants with a clean, dry cloth

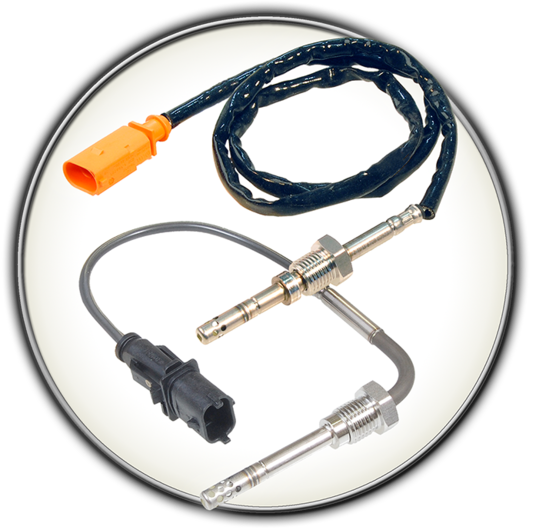

WHY ARE WALKER EXHAUST GAS TEMPERATURE SENSORS BETTER?

The Walker EGTS is an 100% OEM Based Sensor Program. Utilizing high quality metals and ceramics allows Walker sensors to deliver stable, accurate output despite heat, vibration & contamination found in the exhaust.
