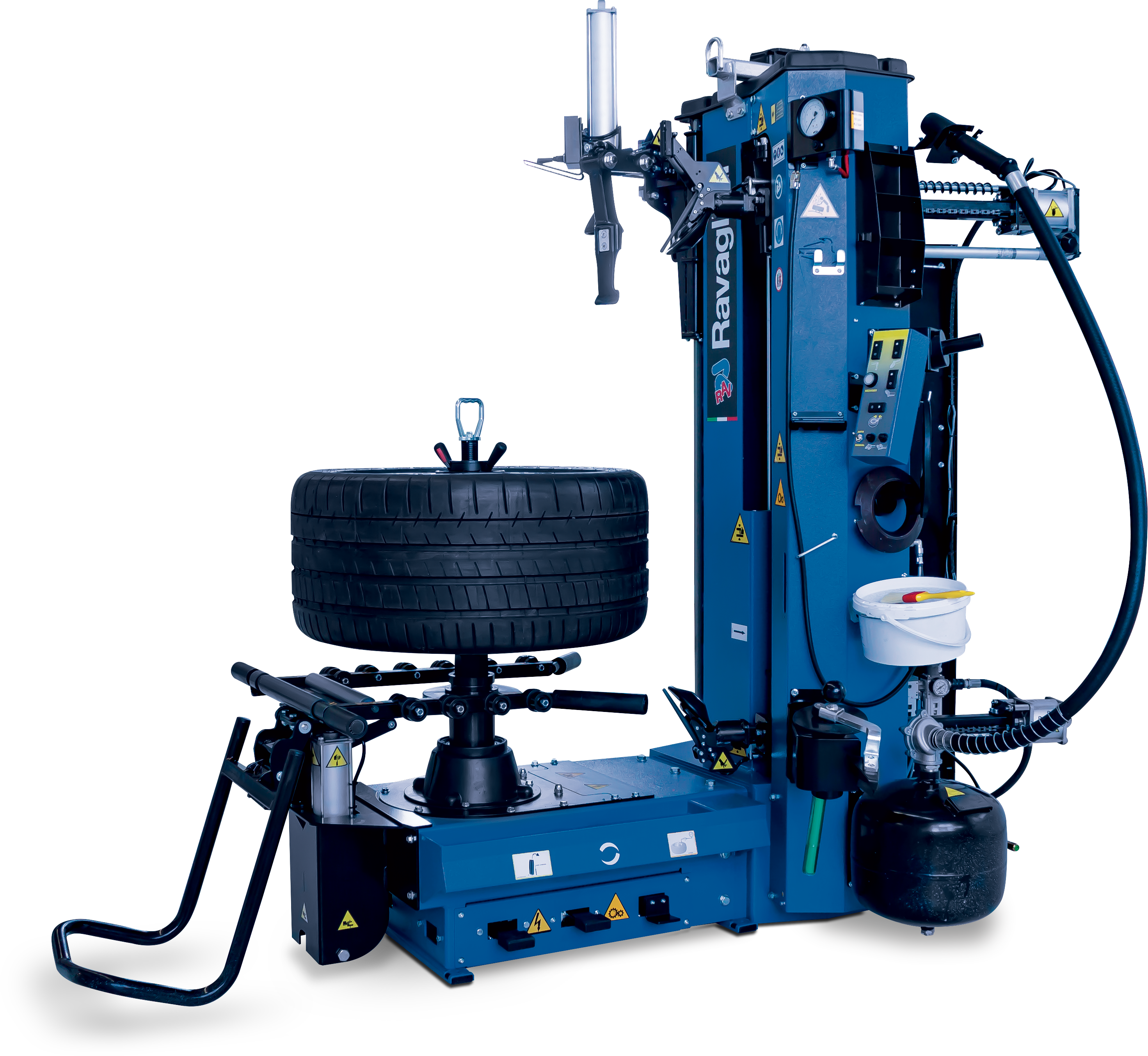

Let the Wheels Speed Up

• Simple operations: only one movement adjusts the diameter and position of all three operating arms
• Quick operations: Memory system – automatic head repositioning on rim edge
• Safe operations: effective and safe bead breaking protecting the tyre sidewall and TPMS

Equipped with an innovative (patented) leverless head and advanced automatic functions, it lets you work quickly, precisely and without any effort also on UHP and Run-Flat tyres. The configuration is already complete with all the major accessories, making it particularly suitable for tyre shops and car dealers.

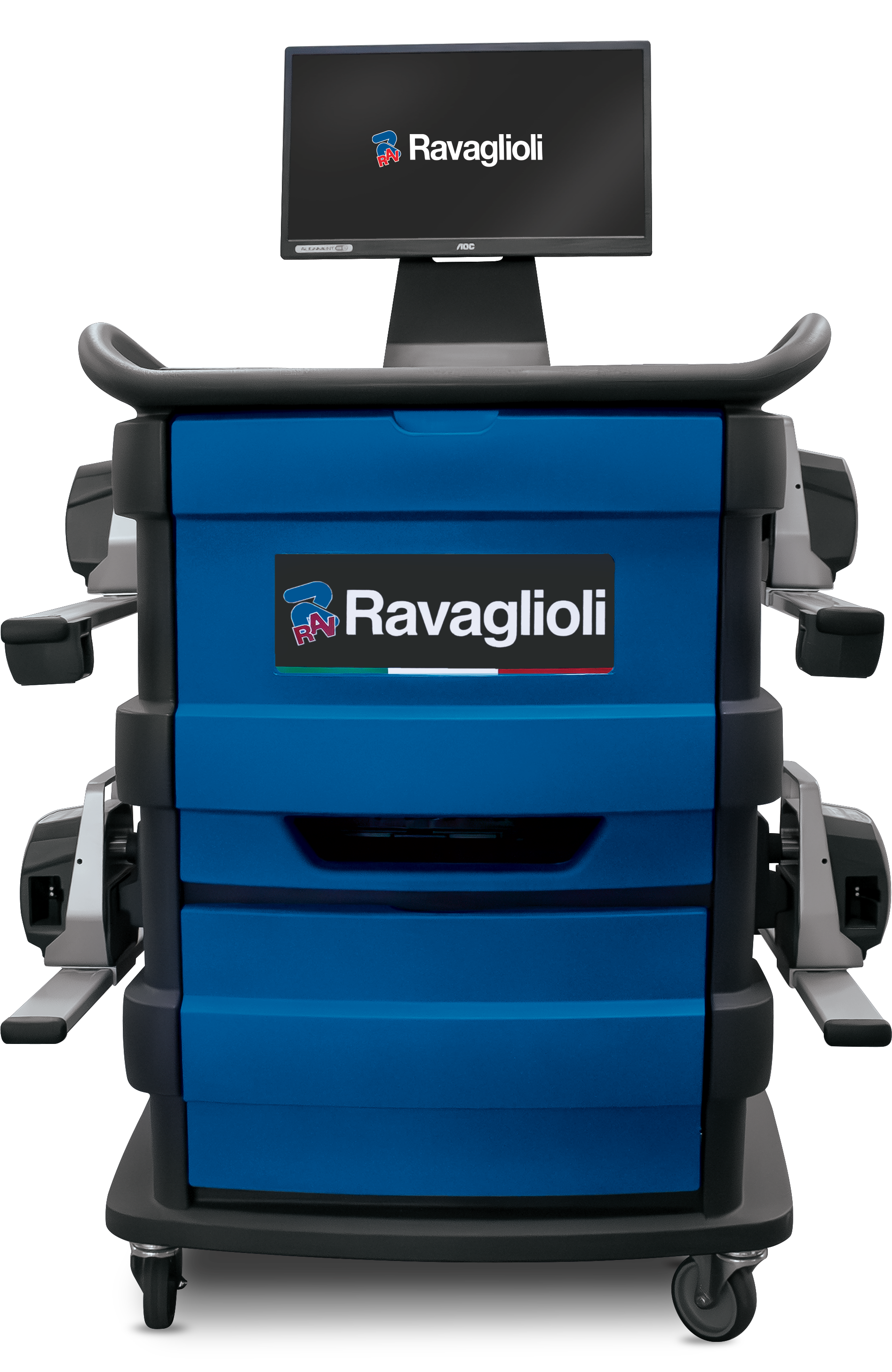

Wheel aligners equipped with CCD sensors, with data transmission via Bluetooth and powered by fast-charge batteries. The trailer-mounted cabinet provides full mobility between work stations as it is cable-free.

• Eco Cabinet: cabinet made with low environmental impact material
• Compact design: extra-light CCD measuring heads weighing just 2.6 kg, -30% compared to the previous model
• Smart technology: software with updated graphics, intuitive user interface, animations and adjustment aids so work is rapid and effective

• Measuring heads with keyboard for remote control.
• The trailer-mounted console contains the PC, printer and monitor.
• Power supplied by rechargeable long-life batteries.
• Infrared transmission between measuring heads, effective even in critical lighting conditions.
• Convenient compartment for clamps and accessories.
• LED synoptic repeaters positioned on each measuring head.

• Electronic steering procedure via the CCD sensors to get the incidence value and tilt of the upright with extreme precision.
• The Spoiler Program for low profile sports cars steps in automatically and makes measurement possible without the use of accessories.
• Based on the height of the frame, the database automatically changes the wheel alignment specifications.
• With the use of animated 3D graphics, the Movie program helps the user display the sequence of operations to perform to properly adjust the vehicle.
• The rapid diagnosis of the frame’s misalignment allows any problems with the body or shift of the rear axle to be highlighted.
• Program for managing and displaying data in Microsoft Windows environment.
• Databank with over 90000 vehicle technical data sheets.
• Possibility for the user to manually enter new cars.
• Customer databank for recording 20000 operations with search by name or vehicle plate number.
• The Run out program is available to push the vehicle 30° (rapid compensation and in little off-centre space) without the need to lift the vehicle.
• Compatible with:
  • the TEq-Link Connected Workshop system: software platform for connecting shop equipment and for monitoring its use, managing preventive maintenance, sending reports by email and much more.
  • ADAS (Advanced Driver Assistance Systems) sensor calibration systems.
  • Shoot & Go: token for consulting the car database online. (Available in the following countries: Denmark, the Netherlands, Germany (KBA), Sweden, Italy, Spain, Portugal, Ireland, New Zealand, Australia, Norway and Finland. (Models may vary in the different countries.))

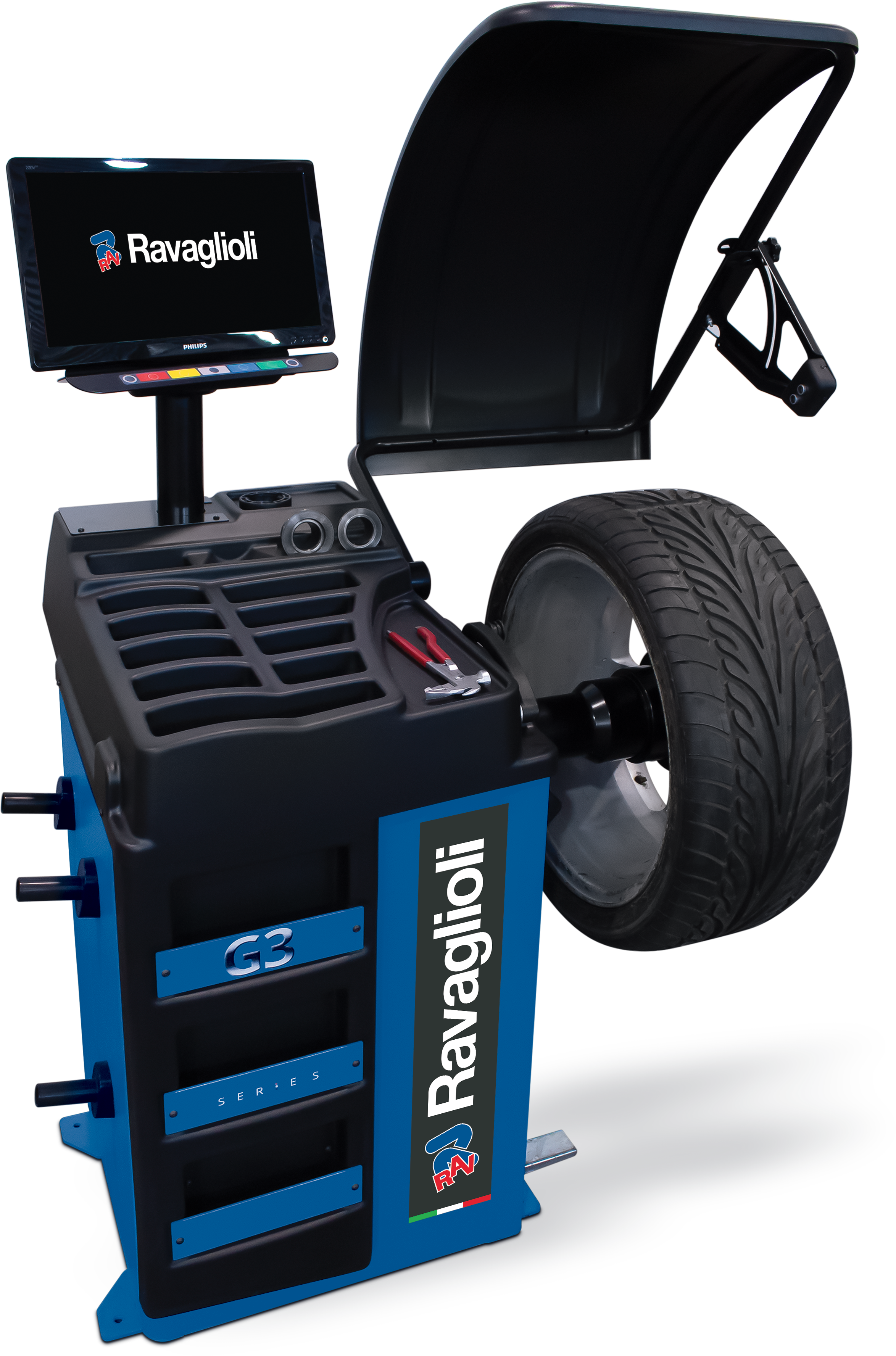

Electronic wheel balancers with microprocessor with wheel stops automatically in both outside and inside unbalance position. Quick selection with internal data gauge. Automatic storage of distance and diameter.

• Impeccable precision: automatic wheel data acquisition and laser blade
• Practical design: everything has a place, everything is in the right spot
• Intuitive technology: graphics and colours are studied to facilitate the use of the wheel balancer

• Run-out measurement: rim Run-out measurement with internal data gauge
• Program selection: quick selection with internal data gauge
• Double LED light and laser blade (with a laser line at 6 o’clock for adhesive weights) to properly and easily fit weight in the right position
• Eco-Weight: modern balancing system to minimize wheel weights consumption
• Position locking: wheel stops automatically in both outside and inside unbalance position
• Optimization of the space to make everything handy and easy
• Whether they are standard or optional, every accessory has its own place
• Compatible with system TEq-Link
  • Internet connection
  • Sending results to the customers
  • Remote assistance

• External data gauge
• 22” monitor with foil keyboard
• Automatic width acquisition by lowering the wheel guard
• Professional Quick Nut
• Large housing for clip-on and tape weights
• Front pocket to store working tools
• Graphics with self-explaining icons to make easier the use of the wheel balancer

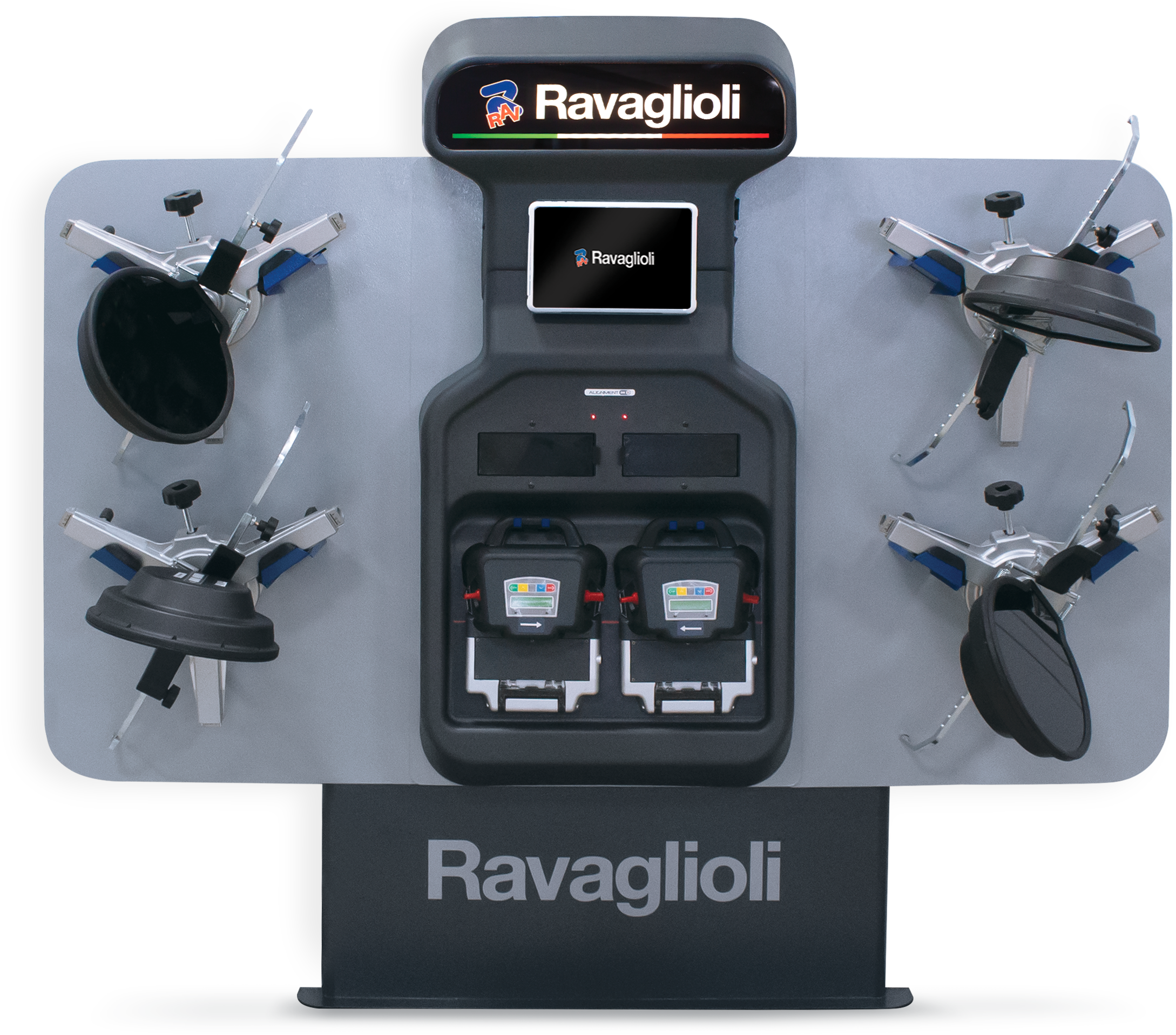

AllOnWall Series – The High-tech Solution for Wheel Alignment

• Space-saving design: wheel alignment operations are performed with maximum flexibility and without space occupied by a console, a data transfer tower or a PC
• Fully wireless: the sensors and tablet communicate via Bluetooth connection
• Accurate precision: upgraded 3D measuring heads with HQ resolution

The AllOnWall series allows you to have all that is necessary for performing wheel alignment operations to be placed on a convenient wall-mounted panel, in this way freeing up useful space in the workshop. All alignment activities can be controlled from a 10″ tablet that the operator can carry with him or place on the lifter during adjustment thanks to the built-in magnets. The aligner boasts a well-tested measuring head technology with HD cameras and Real 3D target that is fully wireless with Bluetooth transmission.

Description

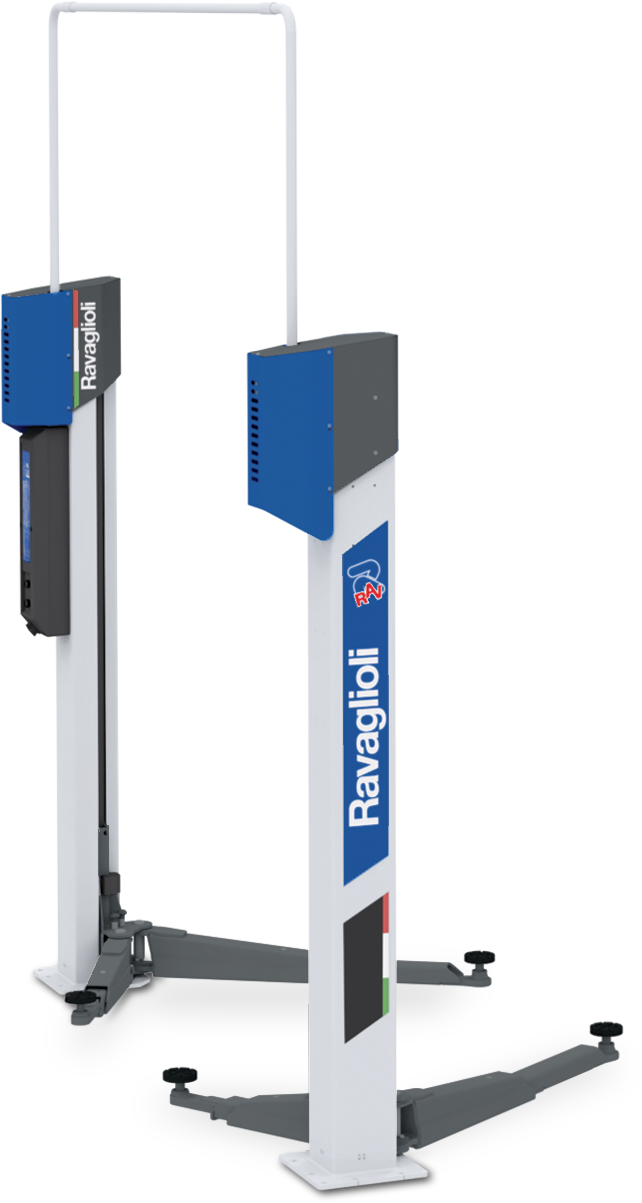

Legend Series – From History to the Future

• Up-to-date design: modern outline that brings modernity and usability to the workshop
• Innovative DNA: long-standing high-quality components and tested for 20000 cycles
• Future-proof: lifts designed for the TEq-Link workshop connectivity system

Emerging from the bestselling 2-post lifts, the Legend Series consolidates the engineering knowledge of Ravaglioli and shapes it into an innovative package. Looking towards the future while always honouring the past, Ravaglioli has set an important goal for itself – let the performance meet the design.

• Minimum routine maintenance: The operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements.
• Guaranteed safety and quality over the time: The lift is equipped with premium components that guarantee durability and maximum safety for the operator.
• Smart and flexible installation – Up to 20% improvement in installation time: The electronic synchronization avoids the installation and adjustment of the realignment cable. The lifts can be installed in a flexible way thanks to three width-adjustable positions.
• Quick and easy operations: The working bay is free of obstacles and the operations can be performed safely and comfortably.
• A step into the future: Selected models with integrated TEq-Link module which enables to monitor work cycles, trigger alerts for scheduled maintenance and more.

• The geometry of the arms has been designed to lift anything from city cars to long wheel base medium vans.
• Rotated electromechanical lift featuring columns at 45°.
• Push bottons control (up/down) at an ergonomic height.
• Easy door opening: The vehicle can be placed backward without any worries about damaging.
• Thanks to the asymmetric design of the columns, the loading areas of the arms overlap, granting great flexibility and time saving when picking up the vehicle.
• More space for movement around the vehicle: The lift is designed to maximise its layout while ensuring minimum space requirements.
• Quick car positioning: The operator has at his disposal a wide loading area, without the necessity of pushing and pulling the vehicle to find the right lifting position.

• Electronic synchronization
• Quick nut replacing: New motor plate that allows to remove the screw from the front side of the column with the column standing.
• Internal carriages running on lubricated sliding guides, protected from the external environment, that ensures a longer life to the sliding elements
• Equipped with an acoustic anti-toe trap system – Free from mechanical foot guards
• Short 3-stage arms and long 2-stage arms with quick fit telescopic rubber pad
• Truly asymmetric columns designed to optimize the drive through and footprint
• Premium quality of components
  • Aluminium pulley with cooling function
  • Long-lasting bearings
  • 50% longer, bronze load nut
  • Motors with reinforced and cooling casing
  • Solid automatic arm locking
