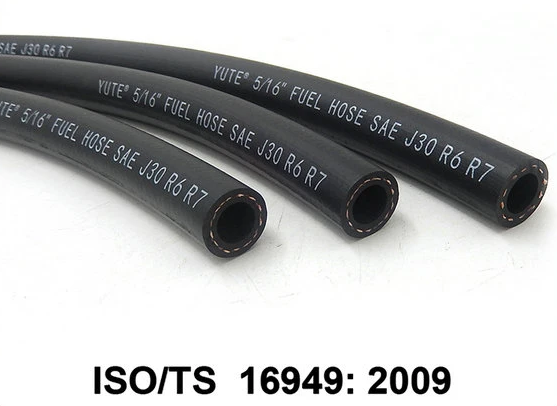

APPLICATIONS
Applicable to the fuel injection systems which include electronic fuel metering (EFM), electronic fuel injection (EFI), throttle body injection (TBI), etc.

CONSTRUCTION
Tube: High temperature, oil-resistant FKM
Buffering: Oil-, ozone-resistant synthetic rubber
Reinforcement: High tensile polyester braided fiber
Cover:: Aging-, weather-resistant synthetic rubber
Color: Black
Temperature range: -40 ° F~ +275 °F /-40°C~ + 135°C
Standard: SAE 30R9

APPLICATIONS
Applicable to the automotive engine cooling system andthe heating system for water hose.

CONSTRUCTION
Tube: Black EPDM rubber with good heat resistance Reinforcement: Double layer polyester
Cover: Black EPDM rubber with good heat, wear and weather resistance
Color: Black
Temperature range: -40 °F ~ +248 ° F / +-40°C ~+120° C
Standard: SAE J20

Rubber air lines are 3/8" ID SAE J1402 black or red/blue hose with 1/2" swivel fittings at tractor end;
ABS Cable Assembly conforms to SAE J2394 and the 7 Way Plug to SAE J560;
Each assembly comes securely wrapped in a heavy duty spiral wrap specially designed to minimize hose and cable wear;
Large plastic grips provide a gradual bend to prevent kinking;
Stainless steel clip is easy to handle.

Our 3-in-1 wraps come in 2 sizes, 12ft and 15ft. And they are selling hot in the NA market--- We have sold over 50000 pcs in 2023, and we are expecting to sell 65000pcs this year.
The production of the air brake hose and the cable conforms strictly to the SAE J1402 and SAE J2394 standard, and they will be first inspected in our own factory lab, and then sent to a Miami-based 3rd-party lab for double inspection.

APPLICATIONS
Applicable to the pneumatic braking system of trucks, trailers, heavy duty trucks and buses to transfer air pressurre.

CONSTRUCTION
Tube: Oil resistant rubber formula
Reinforcement: High tensile fiber
Buffering: Rubber formula with excellent adhesion
Reinforcement: High tensile fiber
Cover: Synthetic rubber with good aging resistance and ozone resistance Color: Blad<, red, blue
Temperature range: -40 °F - +212 °F /-40°c - 1oo•c
Quality standard: SAE Jl402
Certification: D.O.T

APPLICATIONS
Applicable to the fuel injection systems which include electronic fuel metering (EFM), electronic fuel injection (EFI), throttle body injection (TBI), etc.

CONSTRUCTION
Tube: High temperature, oil-resistant FKM
Buffering: Oil-, ozone-resistant synthetic rubber
Reinforcement: High tensile polyester braided fiber
Cover:: Aging-, weather-resistant synthetic rubber
Color: Black
Temperature range: -40 ° F~ +275 °F /-40°C~ + 135°C
Standard: SAE 30R9

APPLICATIONS
Applicable to the automotive engine cooling system andthe heating system for water hose.

CONSTRUCTION
Tube: Black EPDM rubber with good heat resistance Reinforcement: Double layer polyester
Cover: Black EPDM rubber with good heat, wear and weather resistance
Color: Black
Temperature range: -40 °F ~ +248 ° F / +-40°C ~+120° C
Standard: SAE J20

Rubber air lines are 3/8" ID SAE J1402 black or red/blue hose with 1/2" swivel fittings at tractor end;
ABS Cable Assembly conforms to SAE J2394 and the 7 Way Plug to SAE J560;
Each assembly comes securely wrapped in a heavy duty spiral wrap specially designed to minimize hose and cable wear;
Large plastic grips provide a gradual bend to prevent kinking;
Stainless steel clip is easy to handle.

Our 3-in-1 wraps come in 2 sizes, 12ft and 15ft. And they are selling hot in the NA market--- We have sold over 50000 pcs in 2023, and we are expecting to sell 65000pcs this year.
The production of the air brake hose and the cable conforms strictly to the SAE J1402 and SAE J2394 standard, and they will be first inspected in our own factory lab, and then sent to a Miami-based 3rd-party lab for double inspection.
