Mashin Electric Corp.

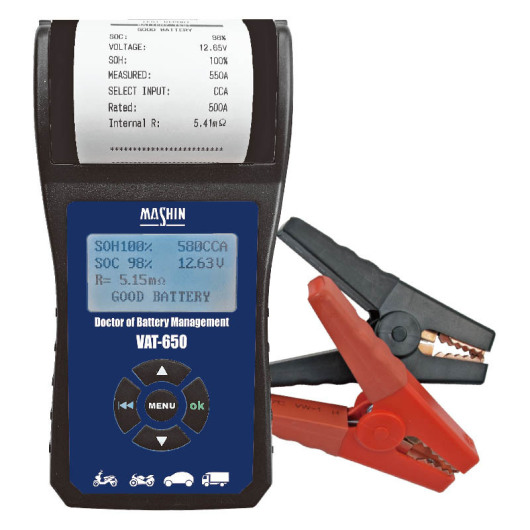

VAT-650 Battery Analyzer

Trade fair innovation

VAT-650 Battery Analyzer

Mashin Electric Corp.
Supplier profileAll products
Contact supplierContact persons

Description

  • Available for all lead-acid batteries, eg. Ordinary Battery, AGM Flat Plate, AGM Spiral, GEL and EFB
  • Battery Status Detection
  • Reverse Polarity Protection
  • Low Battery Testing
  • Multiple Rating System Selection (CCA. DIN. JIS. EN. IEC. GB. SAE. MCA. BCI. CA)
  • Tests 12V batteries and systems for motorcycles, cars and trucks
  • Tests Cranking and Charging system
  • Multiple Language Support (Traditional Chinese, English, Japanese, Korean)
  • Operating Voltage：DC12V
  • Battery Test：Yes
  • Charging Test：Yes
  • Cranking Test：Yes
  • Operating Range：100-2000 CCA
  • Rating System：CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
  • Bad Cell Measurement：Yes
  • Battery Voltage Measurement：Yes
  • Internal Resistance Measurement：Yes
  • Display Dimension：28 x 55
  • LCD Dimension ( Lx W x H )：180 x 90 x 38 mm
  • Weight：0.42 kgs

More from us

Our website

More products by Mashin Electric Corp.

Trade fair innovation

TK-60 Programming Battery Charger

  • Universal AC Input
  • Easy to Use with 3.5” LCD Display Panel
  • Maximum Efficiency up to 900W
  • With CAN Bus and Bluetooth
  • Variable Voltage and Current Adjustable in Power Supply Mode
  • Suitable for all types of 12V Lead-acid and LiFePO4 Batteries
  • Design, Develop and Made in Taiwan
  • High Quality, Safety and Stable




  • Input Power：AC100V-240V 50/60HZ
  • Normal Voltage：DC 12V
  • Charging Voltage：
    • Normal Mode = DC 14.4V
    • Snow Mode = DC 14.7V
    • Boost Mode = DC 16.5V
  • Charging Current：
    • 5A / 15A / 30A / 60A (Charging Current Selection)
  • USB：DC5V / 2.1A
  • Rated Maximum Power：900W
  • Efficiency：>85%
  • Supply Mode：
    • Output Voltage = 13.5~15V
    • Output Current = 60A
  • Protection：
  • Short Circuit Protection
  • Over-temperature Protection
  • Spark Protection
  • Over-charge Protection
  • Over-voltage Protection
  • Reverse Polarity Protection
  • Disconnecting Protection
  • Over-current Protection
  • Battery Types：WET / MF / AGM / GEL / EFB/ LiFePO4
  • Operating Temperature：-20-40°C, Humidity 90%
  • Dimension ( L x W x H )：206 x 331 x 123 mm
  • Weight：4.6 kgs
Trade fair innovation

SC-1000S Smart Battery Charger

  • SC-1000S is an intelligent and multi-functional battery charger. It can charge for both Lead-acid and LiFePO4 Batteries
  • 9 Stages Charging Mode to maintain your battery and extend its service life
  • Easy to Use
  • 3.5¨LCD Display Panel
  • Eco Saving
  • Charging Mode Selection
    • 12V: Normal / Snow / Boost 　　　
    • 24V: Normal / Snow
  • Testing Program
    • Battery
    • Alternator (Only for 12V)
    • Engine Start (Only for 12V)
  • Complete Safety Protection
  • Low Voltage Solutions
  • DC Supply Function: Supply Power For Your Car Electronic Devices
    • Accessories : OBDⅡ/ Cigarette Connector / Cigarette Female Socket
  • User-Friendly Interface
  • Portable Hanging Hook
  • Saving Your Last Charging Process Automatically
  • Modern & Simple Design




  • Input Power：AC100V-240V 50/60HZ
  • Normal Voltage：DC 12V / DC 24V
  • Charging Voltage：
    • DC 12V
    • Normal Mode = max. DC 14V-15V
    • Snow Mode = max. DC 14.6V-15.5V
    • Boost Mode = max. DC 16.5V
    • LiFePO4 Mode = max. DC 14.6V
    • DC 24V
    • Normal Mode = max. DC 28.8V-30V
    • Snow Mode = max. DC 29.2V-30V
  • Charging Current：
    • DC 12V: 1A / 3A / 7A / 10A (Charging Current Selection)
    • LiFePO4 5A / 10A
    • DC 24V: 1A / 2A / 4A / 6A (Charging Current Selection)
  • DC Supply：
    • 12V: DC 13.5V / 5A
    • 24V: DC 27V / 5A
  • Protection：
  • Short Circuit Protection
  • Over-temperature Protection
  • Spark Protection
  • Over-charge Protection
  • Over-voltage Protection
  • Reverse Polarity Protection
  • Disconnecting Protection
  • Over-current Protection
  • Battery Types：WET / MF / AGM / GEL / LiFePO4
  • Operating Temperature：-20-40°C, Humidity 90%
  • Dimension ( Lx Wx H )：197 x 113 x 61 mm
  • Weight：0.95 kgs
