E9 Hi-Amp Circuit Breaker

• Available in 1/4" and 3/8" Stainless Steel Studs, and mutli types Studs Surface and Panel Mount
• Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system.

E9 Hi-Amp Circuit Breaker

• Rating: 25-300A, 48Vdc
• Interrupt Rating: 3000A @ 30Vdc
• Operating Temperature Rating: –25°F (–32°C) to 180°F (82°C)
• Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)
• Materials: Black UL-Rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units
• Marking: Custom marking are available
• Termination: 1/4-28 and 3/8 threaded studs are both available
• Torque Rating: 50 in-lbs (5.6N•m) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N•m) max. Threaded insert
• option has a max torque of 25 in-lbs (2.8N•m).
• Ingress Protection Rating: IP67
• Compliances: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)

ATC Circuit Breakers (Low Profile)

• 5A, 28Vdc
• T3, Manual Reset
• Compatible with ATC fuse blocks
• Complies with SAE J553 and SAE J1171 for ignition protection

E39 Series/ATC Circuit Breakers

• Rating: 5-30A, 28Vdc
• Interrupt Rating: 2000A @ 28Vdc
• Operating Temp: -40°F(-40°C) to 185°F(85°C)
• Storage Temp: -40°F(-40°C) to 260°F(125°C)
• Marking: Cover is color coded to amperage ratings
• Terminations: 5.2mm wide blades compatible with ATC type fuse blocks
• Compliances: SAEJ553; SAEJ1171 (ignition protected), consult factory for time characteristic curves

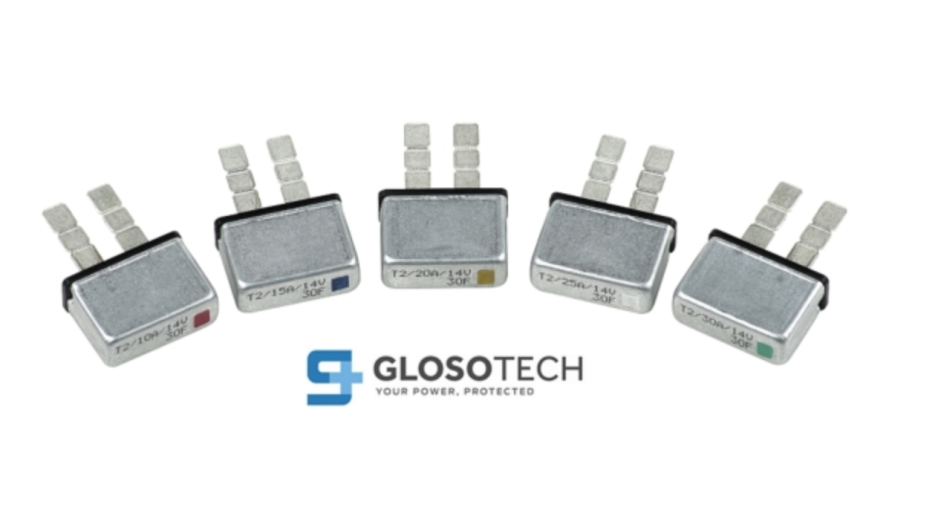

E7 MINI Circuit Breakers

• Single Pole Thermal Type Breakers

E7 Mini Type Circuit Breaker

• Rating: 5-30A; 14Vdc.
• Interrupt Rating:
• 5-10A: 150A @ 14Vdc;
• 15A: 225A @ 14Vdc;
• 20A: 300A @ 14Vdc;
• 25-30A: 450A @ 14Vdc
• Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C).
• Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C).
• Materials: Grey UL-Rated 94V-0 thermoplastic housing with metal cover: gold (Type I) or silver (Type II).
• Marking: Standard marking includes amp/voltage ratings, part number, and date code.
• Termination: Compatible with 280 Type fuse blocks using 0.32in. (8.1mm) centerline spacing.
• Compliances: SAE J553 Type I and Type II Circuit Breakers.

E5 Stud Type Circuit Breaker

• Used in Battery chargers, trucks, buses, RVs, trolling motors, Electri Vehicles etc
• Available in ratings from 5 to 50 Amperes.
• Complies with SAE J553; SAE J1171; UL1500

E5 Stud type, shortstop circuit breakers

• Applications: Battery chargers, trucks, buses, RVs, trolling motors, etc
• Rating: 5-50A, 14Vdc; 28Vdc
• Interrupt Rating: Main Circuit Protection: 1.5kA @ 12Vdc
• Branch Circuit Protection: 2.5kA @ 12Vdc
• Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
• Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
• Materials: Black UL-Rated thermoplastic body (thermoset for Type II body & buttons). Cover is grey
• thermoplastic or steel-Type l gold, Type ll silver
• Marking: Custom marking available. Consult factory for options
• Termination: #10-32 thread and quick-connect options available
• Torque Rating: 24 in-lbs (2.7 N•m) max
• Mounting Torque Rating: Plastic cover - 15 in-lbs (1.7N N•m); Metal cover - 30 in-lbs (3.4 N•m)
• Ingress Protection Rating: IP66 On plastic cover version only (except for terminals)
• Compliances: SAE J553; SAE J1171 (ignition protected)
