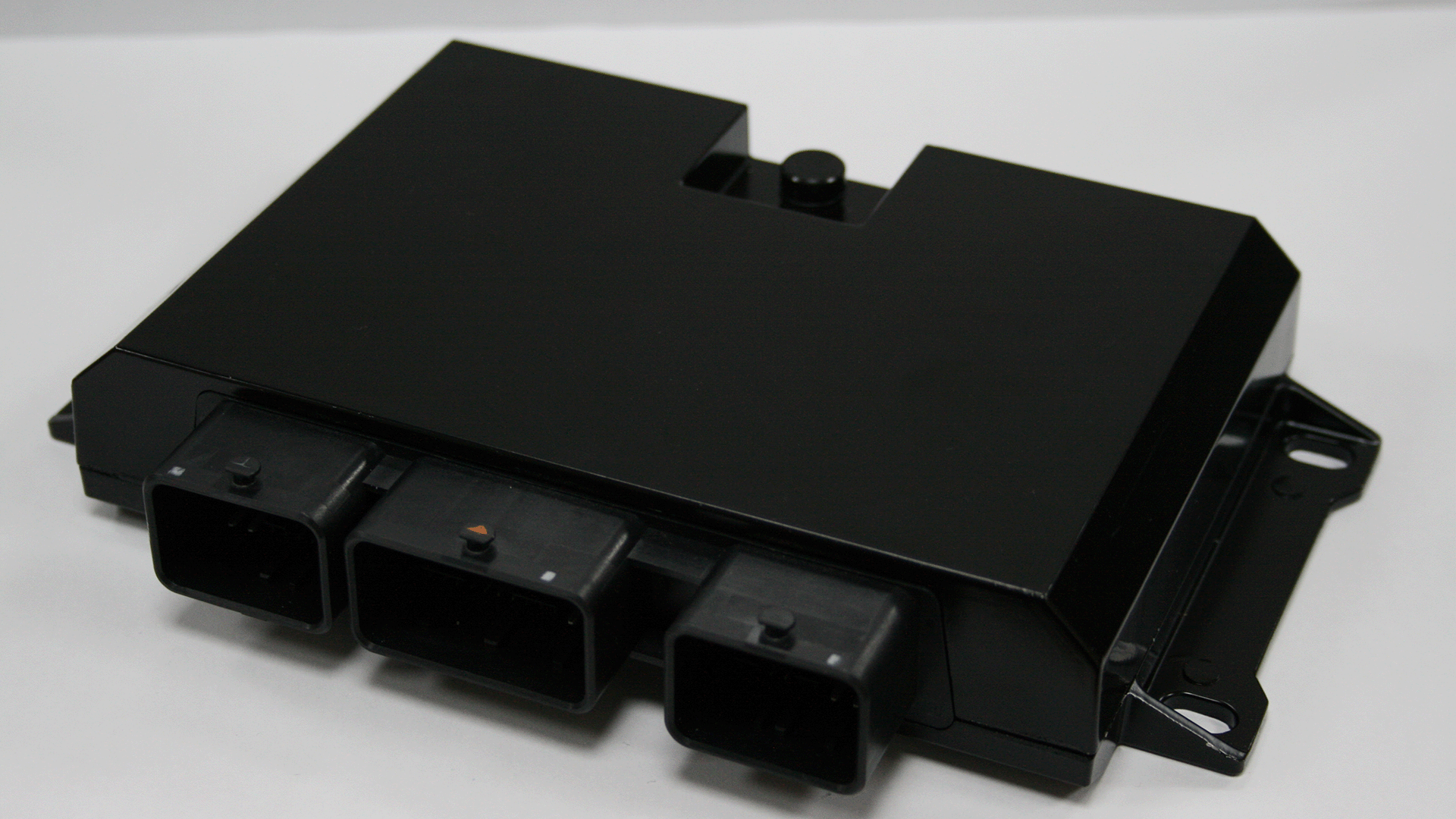

Electrofit, a leader in innovative solutions for vehicle electrification, announces the launch of EFV4, the latest addition to its Vehicle Control Unit (VCU) lineup. Leveraging Electrofit’s software expertise, EFV4 offers a cost-effective, powerful, and highly configurable platform, making it the ideal choice for small-volume and niche vehicle electrification projects.

Built with modern automotive and industrial-grade components, the EFV4 features an automotive processor capable of meeting ASIL B rating, ensuring fail-safe operation even in the most demanding environments. Its flexibility allows for seamless integration with various torque strategies, control of multiple IOs and peripherals, and consolidation of other Electronic Control Units (ECUs) on multiple CAN networks within the vehicle, providing a centralised point of control.

Designed to handle all aspects of modern Electric Vehicle (EV) control, the EFV4 excels in communication with Battery Management Systems (BMS), gear state management, charger communication oversight, cooling subsystem control, and more. Its versatility makes it adaptable to a wide range of project requirements and constraints.

"With the VCU-EFV4, Electrofit continues to push the boundaries of vehicle electrification," said Andy Simner, Sales Director at Electrofit. "Our goal is to give our customers the tools to bring their electrification projects to life efficiently and reliably. The EFV4 embodies our commitment to innovation and customer satisfaction."

Key Features of EFV4 Include

3 x High-Speed CAN channels (configurable up to 1Mbit)
1 X J2411 Single Wire CAN
1 x RS485 Half-Duplex
16 x ADC Channels (12-bit)
8 x General Purpose IO
8 x Optically Isolated General Purpose IO
34 x Low-Side Driver Channels
4 x High-side Driver Channels
4 x Dedicated PWM Channels
2 x Dedicated Inputs for Ignition and Start Detection
CP and PP Charger Control Lines
5 Position Ignition Key Position Emulator

Electrofit’s extensive experience in run strategy customisation allows for tailored software solutions to meet specific project requirements and integration needs.

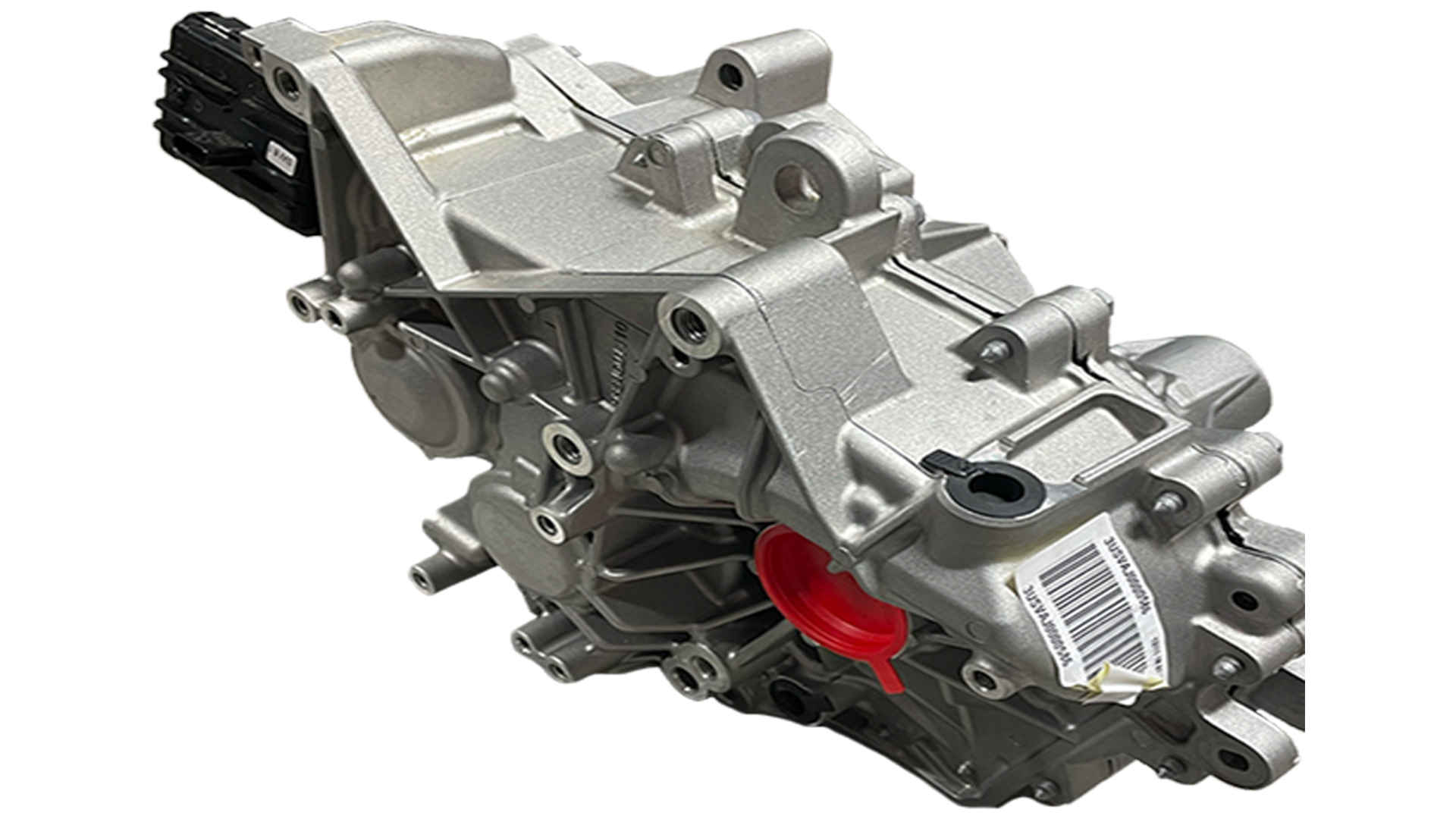

OEM matched reduction transmission to 100kW motor, the reduction ratio is 9.7:1 and when coupled to the motor provides 260Nm of torque

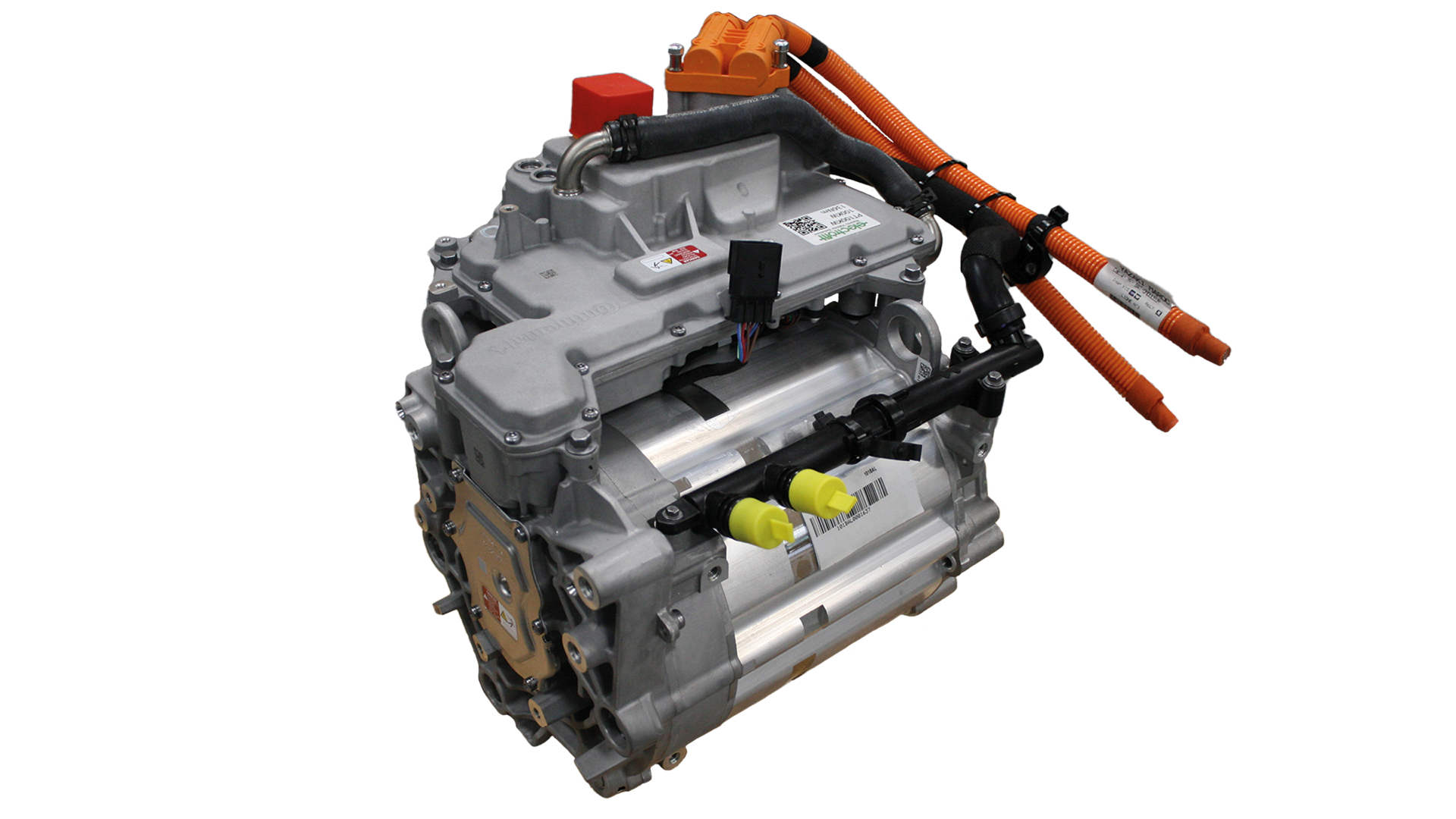

This compact Original Equipment Manufacturer (OEM) motor is a Permanent Magnet Synchronous (PMS) in manufacture and is designed with a built-in inverter that significantly reduces cost (with a typical inverter costing c. £3000) and complexity of integration.

The motor can be used to drive your existing gearbox directly or has the option of being connected to an OEM single-speed transmission. The OEM motor and inverter assembly are supplied with a kit of components comprising a power cable (500 mm long), communications cable, coolant pipe connectors, and motor installation instructions.

Specifications:

• Motor Type: PMS
• Input Voltage 280-420
• Continuous Power Rating (kW): 50
• Peak Power Rating (kW): 100
• Motor Torque (Nm): 260
• Max. Motor Efficiency (%): >95
• Peak Efficiency Motor Speed (rpm): 9800
• Max. Motor Speed (rpm): 14,000
• Dimensions (WxDxH, mm): 380x330x370
• Motor Weight (kg) 53.64
