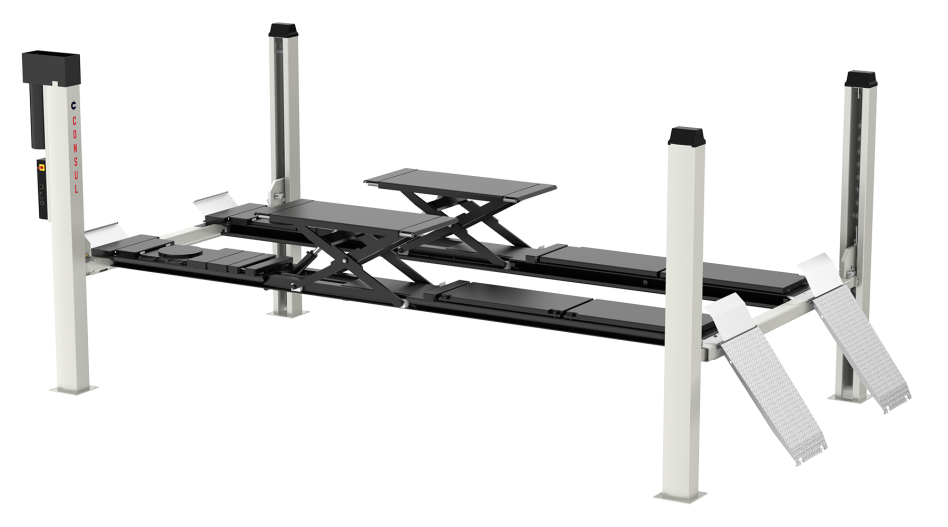

References of various car manufacturers are available for 4 post lifts. Custom made design models on request. All 4 post lifts are generally suitable for wheel alignment and can be equipped with a wheel alignment set.
Low noise hydraulic under oil drive
Electro-hydraulic control
Separated main switch (can be locked as required by CE)
Acoustic foot protection
Hydraulic traction cylinder
Slack cable and cable failure safety feature and roll back protection
Platform with 1.000 mm drive-on ramps for sporty vehicles
One platform fully adjustable, with locking mechanism
Integrated rail for jacking beam
Central control for pneumatic locking device (8 bar)
Locking bars for overall lifting height with locking device each 100 mm
Integrated wheel free scissor with extendable support (for SN versions)
Wheel free scissor with Master / Slave hydraulic system (for SN versions)
Inclusive elastomer pick ups (20 mm for SN, 60 mm for SN-AM versions)
Integrated full size slide plates (for AM versions)
System for turn tables up to 50 mm height, with serial turn table cover (for AM versions)
Optional with post clearance 3.000 mm
Protection class IP54, GS-approved, DIN EN 1493, CE-approved
